| Ref | Part Number | Description |
|---|
| 1 |
01006145 |
CASTER FORK Not Available This part replaces 603-0047. Price: |
| 1 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 2 |
539117245 |
V-BELT Price: $54.99 |
| 2 |
603-0053 |
PIN-AXLE P Not Available Price: |
| 2 |
94-3620 |
BARREL-CYLINDER Price: $216.81 |
| 3 |
32152-10 |
LOCKNUT Price: $0.81 |
| 3 |
738-05004 |
SHOULDER BOLT This part replaces 738-3108. Price: $20.98 |
| 4 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 4 |
94-3616 |
PISTON-CYLINDER Price: $105.44 |
| 5 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 6 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 6 |
603-0145 |

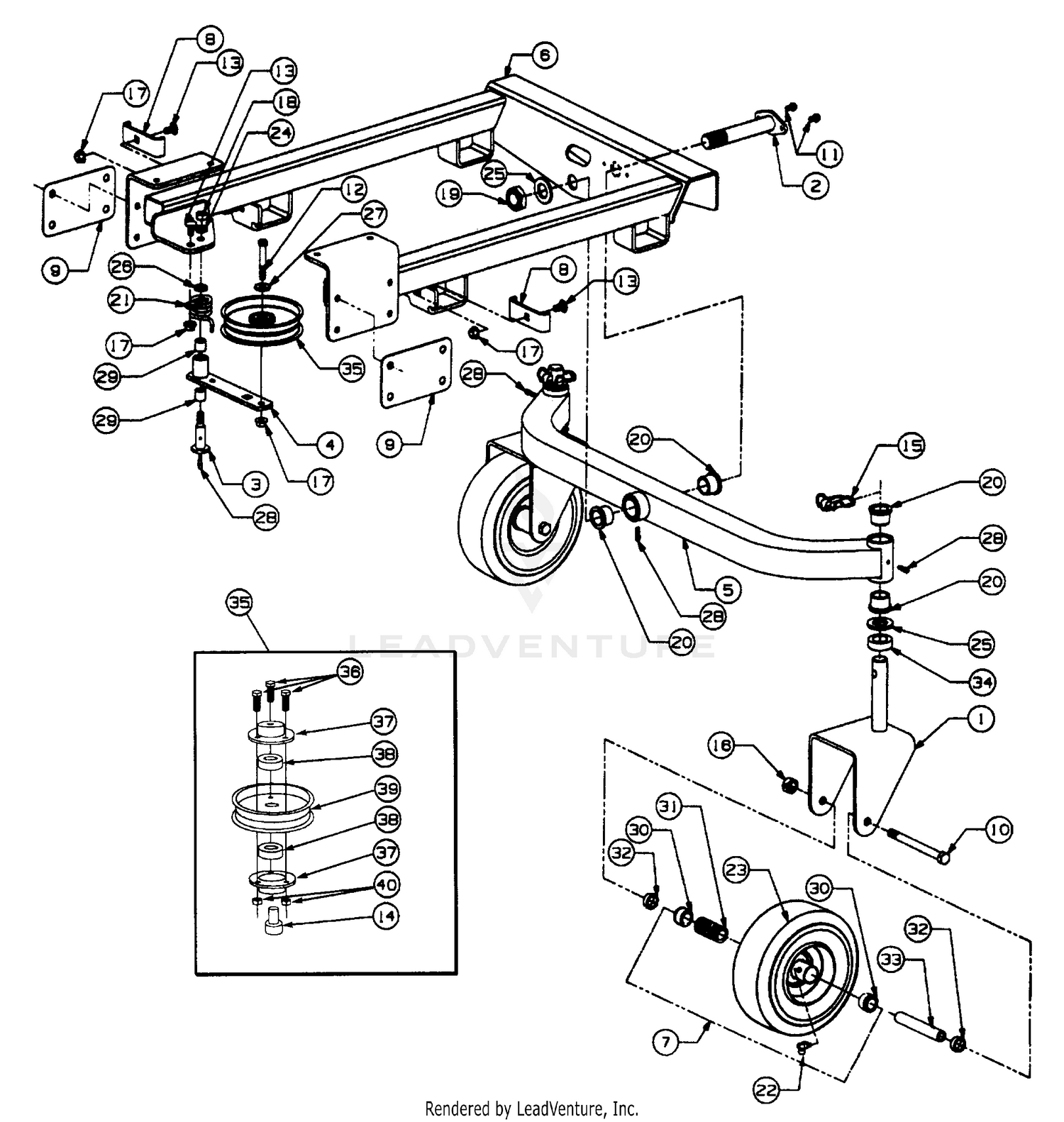

CRADEL ASSEMBLY, FLOATING Not Available Price: |
| 7 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 7 |
634-3026 |
Wheel Assy, Caster Price: $209.40 |
| 7 |
94-3618 |
SHAFT-CYLINDER Price: $100.20 |
| 8 |
01006136 |
WEAR BAR PLATE Not Available This part replaces 703-2432. Price: |
| 8 |
522629702 |
Keepers This part replaces 522629701. Price: $3.99 |
| 9 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 9 |
703-2697 |
SPACER Not Available Price: |
| 10 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 10 |
710-0506 |
Screw, Hex Cap, 1/2-20 x 5.50 Lg Price: $9.56 |
| 10 |
94-3615 |
HEAD-CYLINDER Price: $105.44 |
| 11 |
588586601 |
PULLEY.MANDREL.46" This part replaces 539113962. Price: $29.99 |
| 11 |
710-0599 |
Screw, Hex Wash Hd TT - Tap 1/4-20 X .50 Lg Price: $3.86 |
| 11 |
94-3638 |
RING-RETAINING, INTERNAL Price: $4.27 |
| 12 |
596989801 |
Springs This part replaces 539120920. Price: $7.99 |
| 12 |
710-0859 |
Screw, Hex Cap, 3/8-16 X 2.5 Lg GR 5 Price: $5.99 |
| 13 |
3220-6 |
NUT-JAM Price: $1.25 |
| 13 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 14 |
748-3076 |
SHOULDER SPACER Not Available Price: |
| 14 |
94-3617 |
CLEVIS-CYLINDER Price: $138.29 |
| 15 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 15 |
711-1105 |
Pin, Klik Price: $10.43 |
| 16 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 16 |
712-0239 |
Nut, Hex Center Lock, 1/2-20 Price: $5.01 |
| 17 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 17 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 18 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 18 |
712-3019 |
Nut, Hex, 7/16-14 GR 5 Price: $5.94 |
| 19 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 19 |
712-05008 |
Jam Nut, 1-14 This part replaces 712-3075. Price: $12.58 |
| 20 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 20 |
931-0374 |
Flange Bearing, 1.000 x 1.254 This part replaces 731-0374. Price: $6.84 |
| 21 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL This part replaces 532174356. Price: $49.99 |
| 21 |
932-3009 |
Spring, Torsion This part replaces 732-3009. Price: $21.40 |
| 22 |
596790301 |
Bushings This part replaces 539112076. Price: $5.99 |
| 22 |
737-3004 |
Fitting, Grease, 90 degree, 1/4-28 Price: $10.22 |
| 23 |
532110485 |
BEARING Price: $11.99 |
| 23 |
734-3179 |
TIRE-URETHANE Not Available Price: |
| 24 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 24 |
736-0171 |
Washer, Lock, 7/16 Price: $3.86 |
| 25 |
595297001 |
Rods This part replaces 539110462. Price: $4.99 |
| 25 |
736-0274 |
Washer, Special Price: $7.70 |
| 26 |
574689002 |
ARM, IDLER BLK Price: $79.99 |
| 26 |
936-3015 |
Washer, Flat, .469 x .875 x .105 This part replaces 736-3015. Price: $3.89 |
| 27 |
589481805 |
PLATE.REINF.DECK.46".FRONT.BLK This part replaces 585317705. Price: $17.99 |
| 27 |
736-3052 |
Washer, Flat, .406 X 1.0 X .105 Thk Price: $4.02 |
| 28 |
585317805 |
PLATE.REINFOR.46.SIDEBOLT.X431 Price: $22.99 |
| 28 |
737-0280 |
GREASE FITTING (SLOTTED) Price: $6.84 |
| 29 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 29 |
741-3063 |
Bearing, Sleeve Price: $15.66 |
| 30 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 30 |
741-3069 |
Bearing, Flange Price: $15.45 |
| 31 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 31 |
941-3070 |
Bearing, Roller This part replaces 741-3070. Price: $47.54 |
| 32 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 32 |
750-0456 |
Spacer, .790 ID X .347 Price: $3.90 |
| 33 |
01000749 |
WHEEL SPACER Not Available This part replaces 750-3080. Price: |
| 33 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 34 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 34 |
750-3118 |
SPACER, 1.015 ID x 1.62 OD x .50 LG Not Available Price: |
| 35 |
01000690 |
IDLER PULLEY ASSEMBLY Not Available This part replaces 603-0432. Price: |
| 35 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 36 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 36 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 37 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 37 |
703-2907 |
BEARING CUP Not Available Price: |
| 38 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 38 |
941-0600 |
Bearing This part replaces 741-0600. Price: $23.34 |
| 39 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 40 |
578296405 |
Screws This part replaces 578296404. Price: $2.99 |
| 41 |
532110452 |
NUT PUSH M Price: $2.99 |
| 42 |
596435201 |
Bolts This part replaces 874780740. Price: $2.99 |
| 43 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 44 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 45 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 46 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 47 |
595901901 |
Nuts This part replaces 539119124. Price: $2.99 |
| 48 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 49 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 50 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 51 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 52 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 53 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 54 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 55 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
