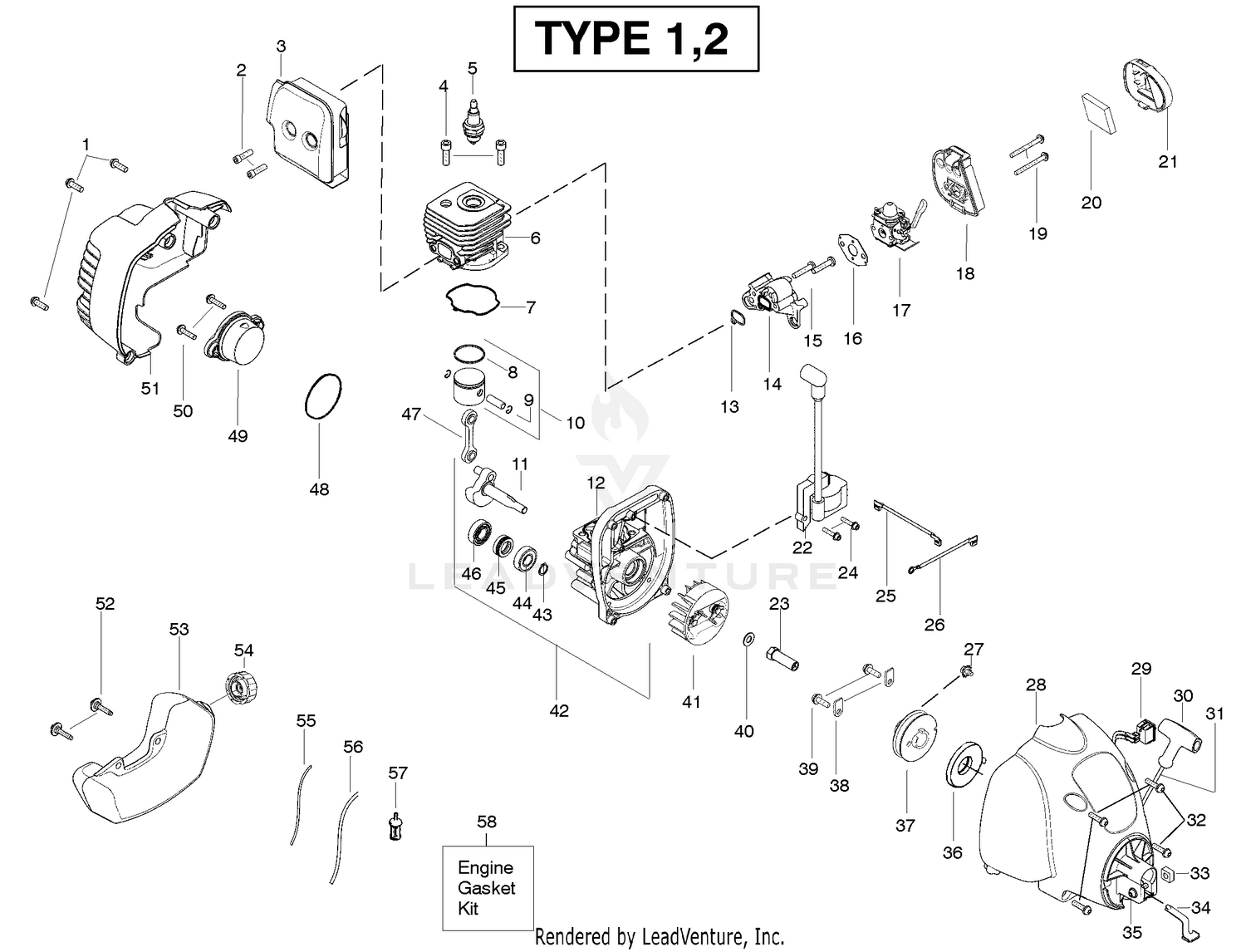

| Ref | Part Number | Description |
|---|
| 1 |
28-1120 |
PLUG Price: $15.71 |
| 1 |
530015814 |
Screw Price: $1.99 |
| 2 |
27-5210 |
SPOOL Price: $470.08 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 3 |
22-8500 |
O-RING Price: $18.87 |
| 4 |
22-8510 |
DISCONTINUED Price: Call Us |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
22-8380 |
RETAINER Price: $17.86 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
22-8410 |
SPRING Price: $17.61 |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
27-5200 |
FLOAT SPACER Price: $19.62 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
22-8480 |
RING-SNAP Price: $49.87 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
22-8490 |
RING-SNAP Price: $6.51 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 10 |
36-3970 |
DISCONTINUED Price: Call Us |
| 11 |
36-3960 |
DISCONTINUED Price: Call Us |
| 11 |
530057829 |
Assy-Crankshaft Price: $12.99 |
| 12 |
22-8330 |
PLUG Price: $64.59 |
| 13 |
237-42 |
O-RING Price: $2.78 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
22-8340 |
SPRING Price: $19.09 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
22-8350 |
BALL Price: $12.28 |
| 15 |
530016309 |
Screw Price: $1.99 |
| 16 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
22-8360 |
PIN Price: $43.02 |
| 17 |
530071822 |
KIT CARB ASSY # C1U-W24 This part replaces 530071752. Price: $29.99 |
| 18 |
28-1130 |
DISCONTINUED Price: Call Us |
| 18 |
580731001 |
BASE AIRBOX BLACK This part replaces 530057585. Price: $1.99 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 20 |
530057781 |
Foam-Air Filter Price: $1.99 |
| 21 |
530057584 |
Cover-Air Box Price: $4.99 |
| 22 |
578287001 |
IGNITION MODULE This part replaces 545024901. Price: $11.99 |
| 23 |
530038604 |
Coupling-Drive Price: $1.99 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 26 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 27 |
530016392 |
Screw Price: $1.99 |
| 28 |
530058600 |
Assy.-Fan Hsg Price: $14.99 |
| 29 |
530071356 |
Kit-Switch Price: $4.99 |
| 30 |
530027569 |
Handle-Starter Price: $1.99 |
| 31 |
530071767 |
Kit - Rope Price: $3.99 |
| 32 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 33 |
530016124 |
Nut Price: $1.99 |
| 34 |
530057588 |
Clip-Spring Price: $1.99 |
| 35 |
530016430 |
Screw Price: $2.99 |
| 36 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 37 |
530071786 |
Kit-Pulley-Starter Price: $3.99 |
| 38 |
530027523 |
Retainer-Pulley Price: $2.99 |
| 39 |
530015775 |
Screw Price: $1.99 |
| 40 |
530015828 |
Washer-Flat Price: $1.99 |
| 41 |
545221701 |
FLYWHEEL ASSY This part replaces 545005101. Price: $8.99 |
| 43 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 44 |
530055728 |
Outer Bearing Price: $6.99 |
| 45 |
530019264 |
Seal-C'case Price: $2.99 |
| 46 |
530032125 |
Inner Bearing Price: $11.99 |
| 47 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 48 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 50 |
530016386 |
Screw Price: $5.99 |
| 51 |
530057580 |
Shroud-Rear Green Price: $7.99 |
| 51 |
545011004 |
Shroud-Rear Black Price: $2.99 |
| 52 |
530016445 |
Retainer-Tank Price: $1.99 |
| 54 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 55 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 56 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 57 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
