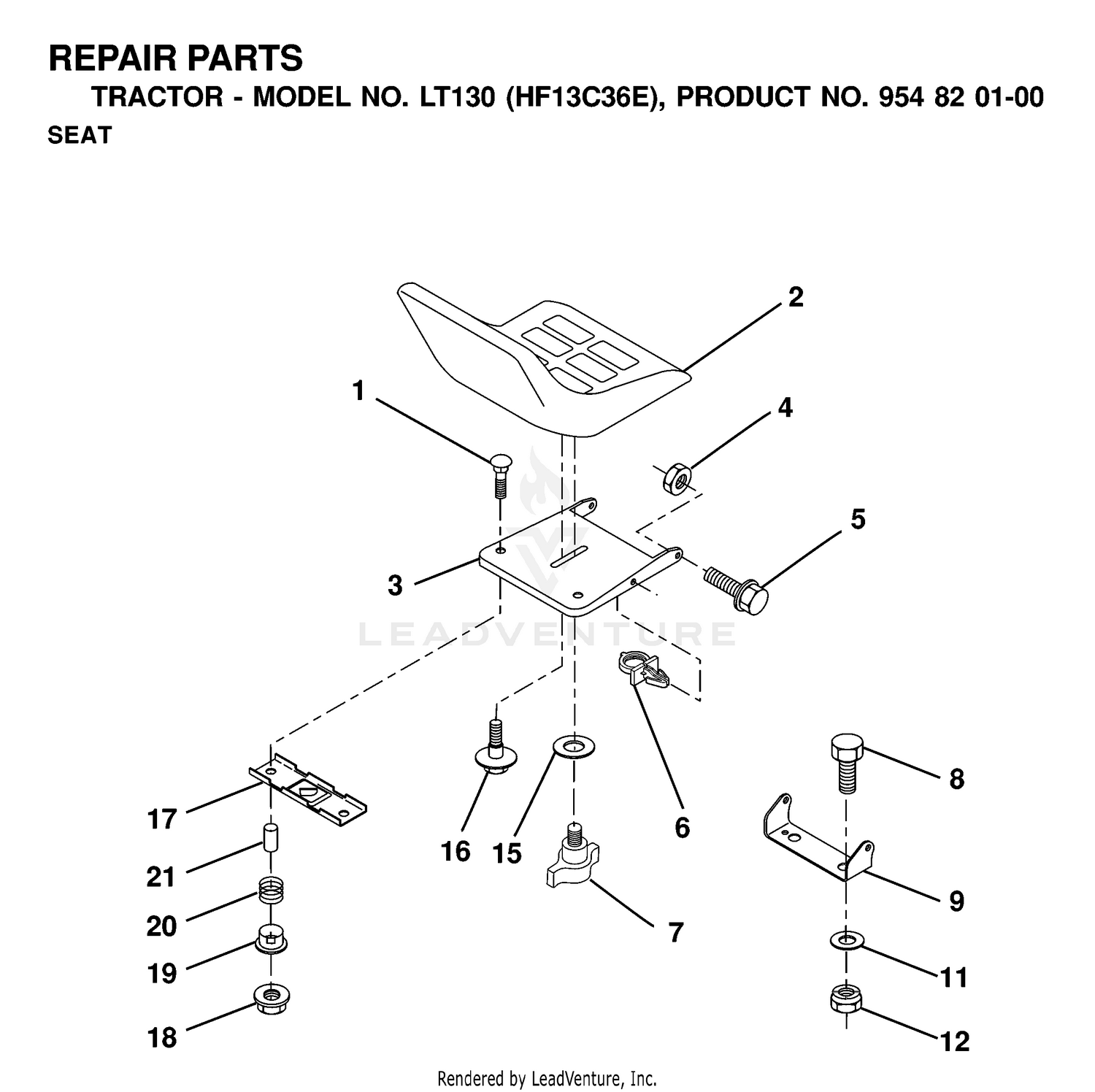

| Ref | Part Number | Description |
|---|
| 1 |
01-182-0816 |
BOLT-HH Price: $2.85 |
| 1 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 2 |
3217-9 |
NUT-HH Price: $0.37 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 3 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 3 |
93-6586 |
BUSHING Price: $26.89 |
| 4 |
93-6587 |
BEARING Price: $14.99 |
| 5 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 5 |
93-6584 |
KING PIN ASM Price: $68.03 |
| 6 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 6 |
532145006 |
PUSH CLIP Price: $2.99 |
| 7 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 8 |
121-5087-03 |
FRONT AXLE ASM Price: $1,295.09 |
| 8 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 9 |
138-6102 |
CYLINDER ASM This part replaces 93-6510. Price: $1,096.53 |
| 9 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 10 |
93-6509 |
END-TIE ROD This part replaces 93-6509-03. Price: $98.38 |
| 11 |
117-5899-03 |
LH SPINDLE HOUSING ASM Price: $973.03 |
| 11 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 12 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 12 |
87-1470-03 |
END-TIE ROD, LH Price: $101.78 |
| 13 |
3218-21 |
NUT-JAM Price: $3.19 |
| 14 |
93-6588-03 |
ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 15 |
32136-13 |
NUT-SHH Price: $2.85 |
| 15 |
819171912 |
WASHER Price: $3.99 |
| 16 |
3220-11 |
NUT-JAM Price: $0.81 |
| 16 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 17 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 17 |
87-1480-03 |
END-TIE ROD, RH Price: $101.78 |
| 18 |
117-5897-03 |
SPINDLE ASM Price: $461.32 |
| 18 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 19 |
119-6003 |
HUB ASM Price: $163.68 |
| 19 |
532121248 |
BUSHING Price: $4.99 |
| 20 |
127-1100 |
WHEEL AND TIRE ASM Price: $422.57 |
| 20 |
532121250 |
SPRING Price: $3.99 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 22 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 23 |
3272-12 |
PIN-COTTER Price: $0.25 |
