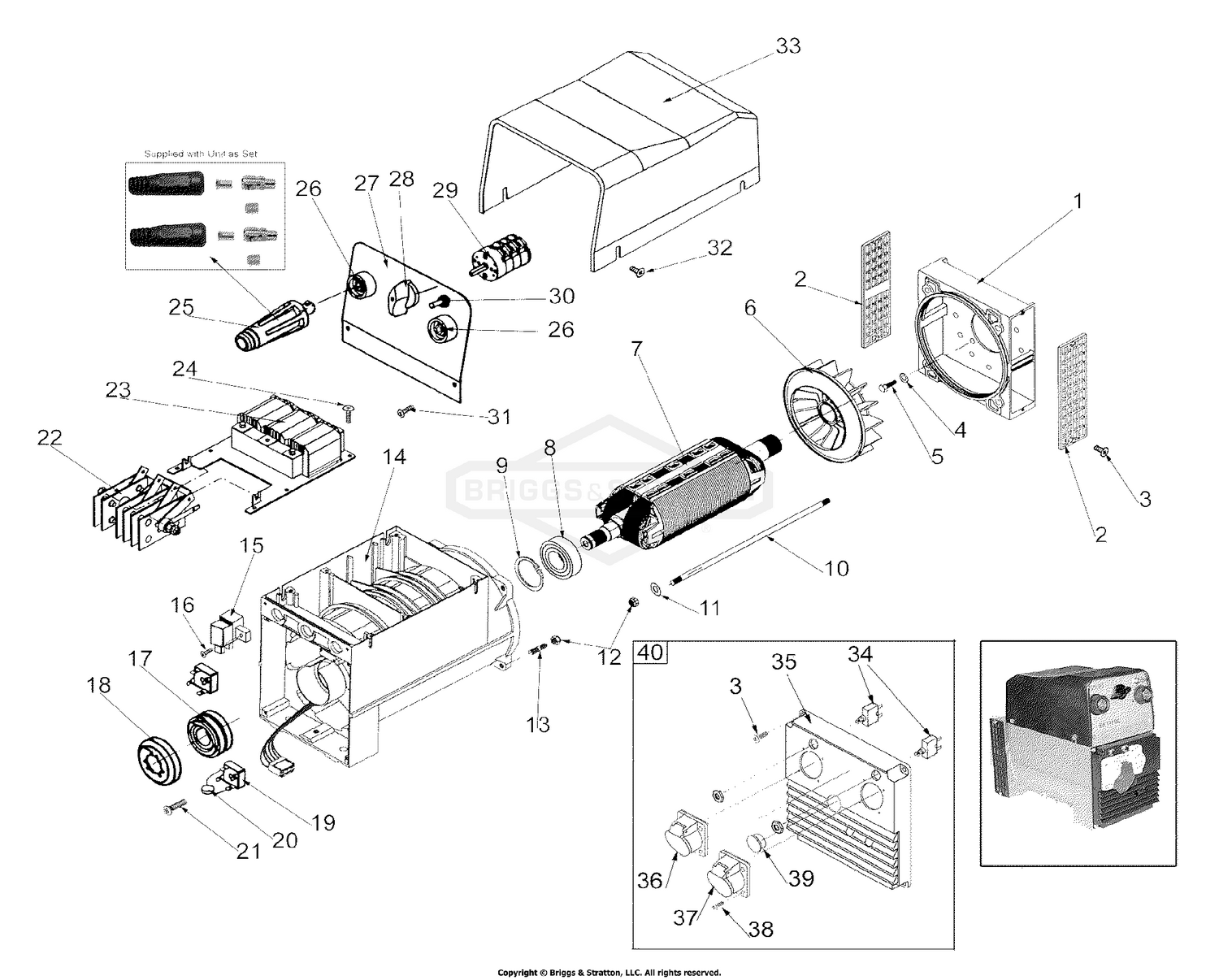

Alternator 102450GS

Alternator 102450GS

Parts (40)

RefPart NumberDescription
1 102271GS Flange Plate Price: Call Us
2 102139GS Side Grill (Plastic) Price: Call Us
3 ~NSP Screw MC PPHD M5*10mm Price: Call Us
4 ~NSP Washer Lock M10/ 3/8 OXY Black Price: Call Us
5 102279GS Screw Cap 3/8 unc * 1 1/4" Price: Call Us
6 102073GS Rotor Fan Sincro (30mm) Price: Call Us
7 102278GS Rotor EW DC Welder Price: Call Us
8 102283GS Bearing Assy Sincro Price: Call Us
9 ~NSP Bearing Circlip Price: Call Us
10 102285GS Rotor Bolt Sincro 325mm Price: Call Us
11 ~NSP Washer Flat M8 & 5/16" Price: Call Us
12 ~NSP Nut nylock M8-1.25 Type T Price: Call Us
13 102131GS Stud M8*30mm Price: Call Us
14 102366GS Stator EWDC Welder Price: Call Us
15 102367GS Brush Holder & Brush Price: Call Us
16 ~NSP Screw Machine M4-0.7*12mm Price: Call Us
17 102242GS Slip Ring Assembly Price: Call Us
18 102243GS Slip Ring Cover Price: Call Us
19 102161GS Bridge Rectifier Price: Call Us
20 102368GS Varistor 10D681K Price: Call Us
21 ~NSP Screw Machine PPHd M4*20mm Price: Call Us
22 102369GS Welding Bridge Rectifier Price: Call Us
23 102370GS Welding Impedance Price: Call Us
24 ~NSP Screw MC PPHD M6*10mm Price: Call Us
25 102371GS Male Connector Price: Call Us
26 102372GS Female Connector Price: Call Us
27 102373GS Panel Aluminium Blank Price: Call Us
28 102391GS Knob Switch 7 Position Price: Call Us
29 102393GS Switch 7 Position AC/DC Welder Price: Call Us
30 102376GS Switch Voltage Change-Over DC Welder Price: Call Us
31 ~NSP Screw Machine M5*8mm Price: Call Us
32 ~NSP SCREW M6 * 15MM Price: Call Us
33 102287GS Cover Top Box Price: Call Us
34 102133GS Circuit Breaker 15A Price: Call Us
35 102433GS Outlet Panel Blank (no outlets) Sincro 3.5/4.2 Price: Call Us
36 102419GS Socket Outlet 16A 115Volt Price: Call Us
37 102418GS Socket Outlet 16A 230V Price: Call Us
38 ~NSP Screw Self Tap #10*15mm Price: Call Us
39 102085GS End Cap Plastic (Outlet Panel) Price: Call Us
102450GS Alternator Price: Call Us 102450GS
