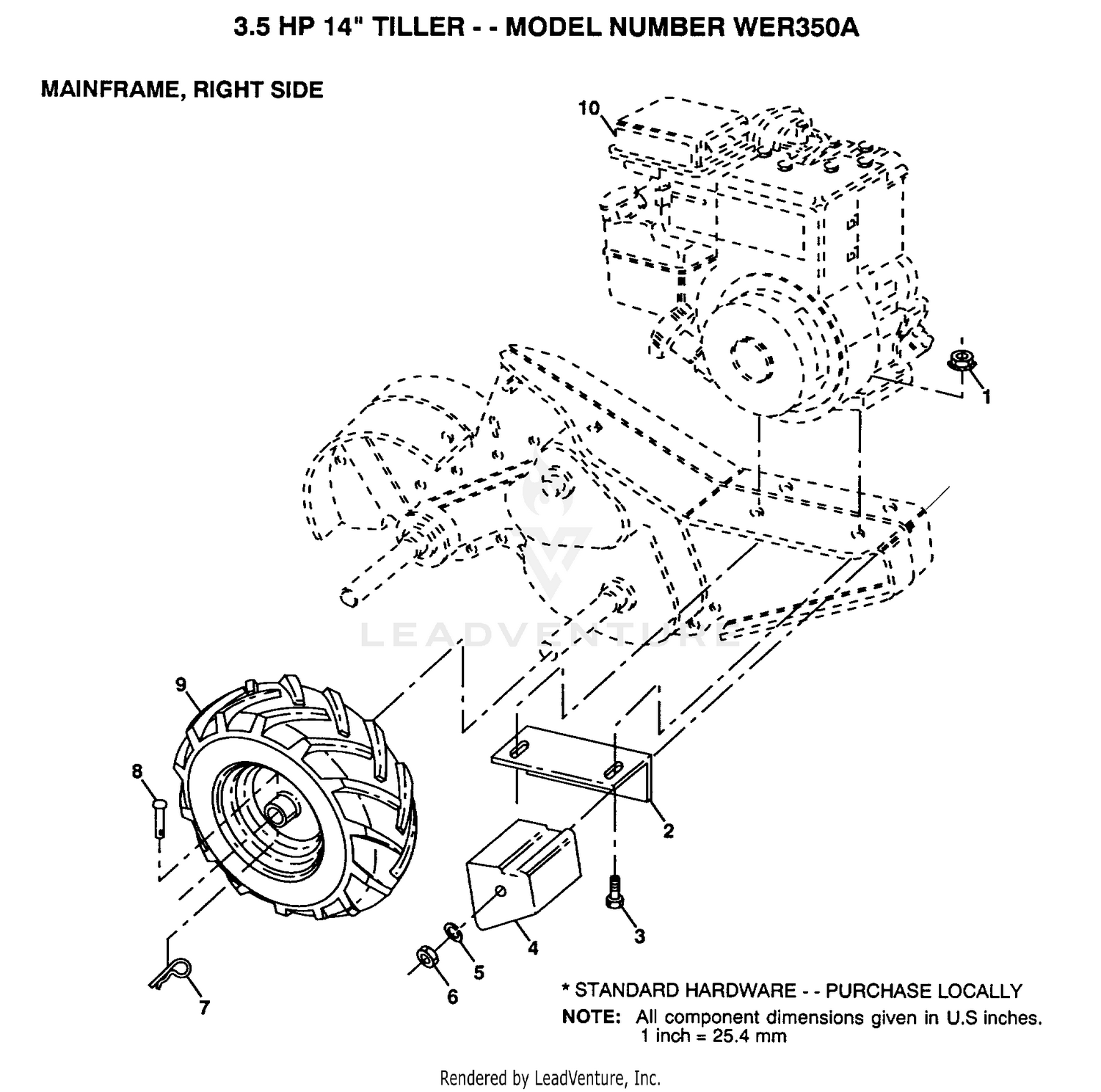

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 1 |
73510500 |
NUT Price: Call Us |
| 2 |
102332X |
BRACKET RH CRT Price: Call Us |
| 2 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 3 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 3 |
94-8146 |
STRIP-FOAM Price: $8.78 |
| 4 |
102173X |
COUNTERWEIGHT CRT Price: Call Us |
| 4 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 5 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 5 |
32128-25 |
NUT-HF Price: $3.19 |
| 6 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 6 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 7 |
233-42 |
KNOB Price: $12.88 |
| 7 |
4497H |
RETAINER M Price: Call Us |
| 8 |
126875X |
RIVET.DRILL.1.75 Price: Call Us |
| 8 |
93-7598 |
LEVER-THROTTLE This part replaces 93-7598-03. Price: $39.13 |
| 9 |
102190X |
TIRE.CHV.13X5.0-6 Price: Call Us |
| 9 |
3296-21 |
NUT-HEX Price: $0.22 |
| 10 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 13 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 14 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 15 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 16 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 19 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 20 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 21 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 22 |
104-7547 |
CABLE-THROTTLE Price: $141.29 |
| 23 |
105-3929-03 |
BRACKET-CABLE, THROTTLE Price: $24.03 |
| 24 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 25 |
105-9895 |
DECAL-QUICK REFERENCE Price: $36.72 |
| 26 |
105-9189 |
HARNESS-WIRE, SEAT SWITCH Price: $55.42 |
| 27 |
2412-133 |
CLAMP-R Price: $3.19 |
| 28 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 29 |
2412-93 |
CLAMP-R Price: $1.02 |
| 30 |
3212-4 |
SCREW-HH Price: $2.73 |
| 31 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 32 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 34 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 124258X |
RIM |
Price: Call Us 124258X |
