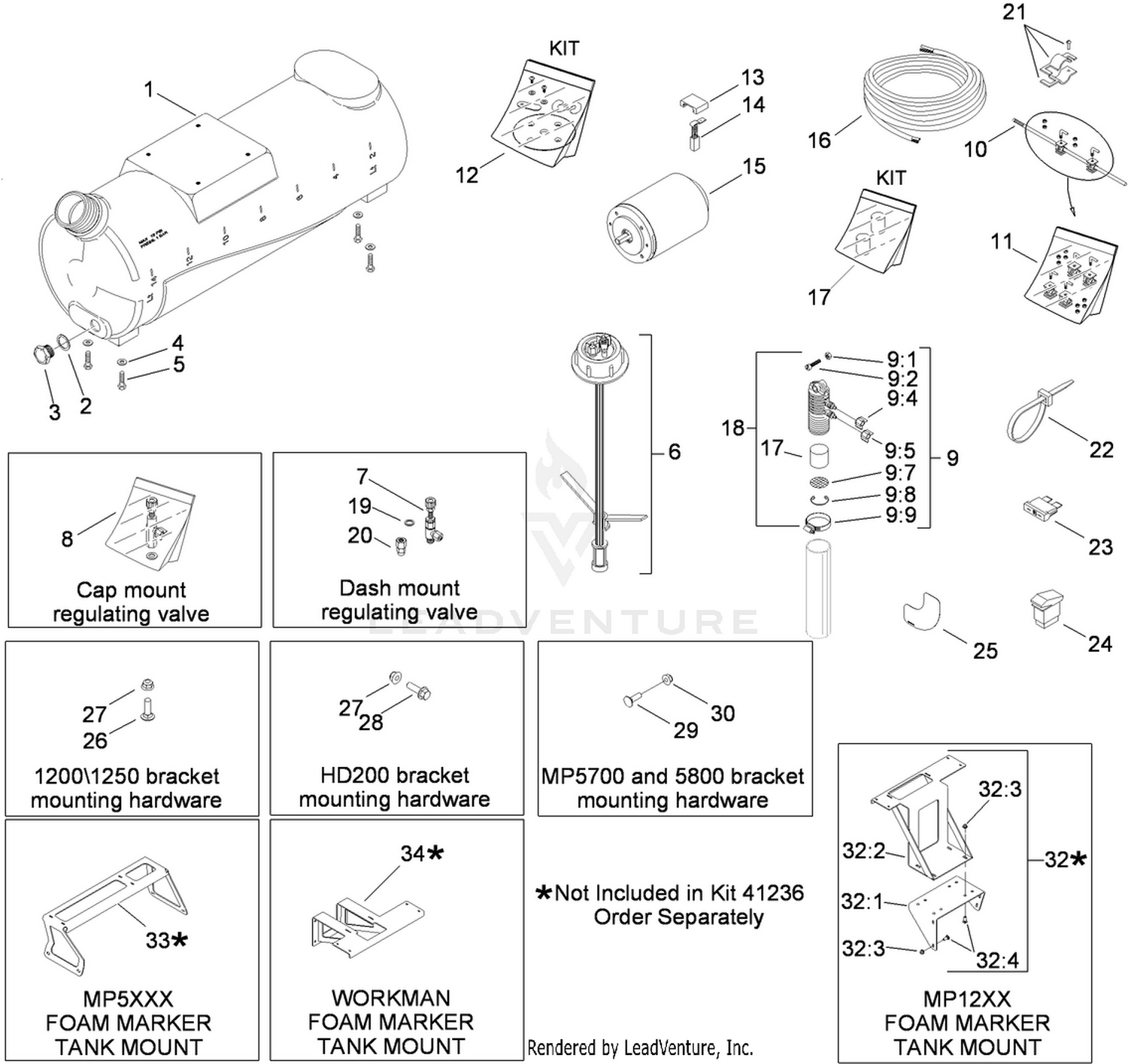

| Ref | Part Number | Description |
|---|
| 1 |
114-9535 |
TANK Price: $665.31 |
| 2 |
114-9538 |
SEAL Price: $6.70 |
| 3 |
114-9539 |
PLUG-DRAIN Price: $11.73 |
| 4 |
114-9532 |
WASHER Price: $0.33 |
| 5 |
114-9533 |
SCREW Price: $0.40 |
| 6 |
114-9537 |
CAP ASM Price: $181.30 |
| 7 |
121-5045 |
REGULATOR-FLOW This part replaces 114-9536. Price: $133.04 |
| 8 |
114-9568 |
REGULATOR-FLOW, CAP MOUNT Price: $67.38 |
| 9 |
114-9541 |
FOAM NOZZLE ASM Price: $106.71 |
| 10 |
114-9556 |
ROD Price: $71.47 |
| 11 |
114-9555 |
ROD MOUNT KIT Price: $61.24 |
| 12 |
114-9549 |
DIAPHRAGM KIT Price: $160.53 |
| 13 |
114-9550 |
COVER-BRUSH, MOTOR Price: $9.51 |
| 14 |
114-9551 |
BRUSH-MOTOR Price: $87.35 |
| 15 |
114-9520 |
COMPRESSOR This part replaces 114-9552. Price: $609.49 |
| 16 |
114-9553 |
TUBE Price: $114.62 |
| 17 |
114-9554 |
MIXER SPONGE KIT Price: $20.80 |
| 18 |
114-9570 |
FOAM MIXER ASM Price: $88.82 |
| 19 |
114-9572 |
WASHER-PLASTIC Price: $0.95 |
| 20 |
114-9571 |
NUT-VALVE Price: $21.20 |
| 21 |
40999 |
CLAMP Price: $9.59 |
| 22 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
109355 |
FUSE-BLADE, 15 AMP Price: $3.09 |
| 24 |
95-8999 |
SWITCH Price: $42.14 |
| 25 |
112-7890 |
DECAL-CONTROL, FOAM Price: $9.80 |
| 26 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 27 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 28 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 29 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 30 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 32 |
119-9366 |
FOAM MARKER BRACKET ASM Price: $368.11 |
| 33 |
112-7812 |
MOUNT-TANK, FOAM MARKER Price: $293.25 |
