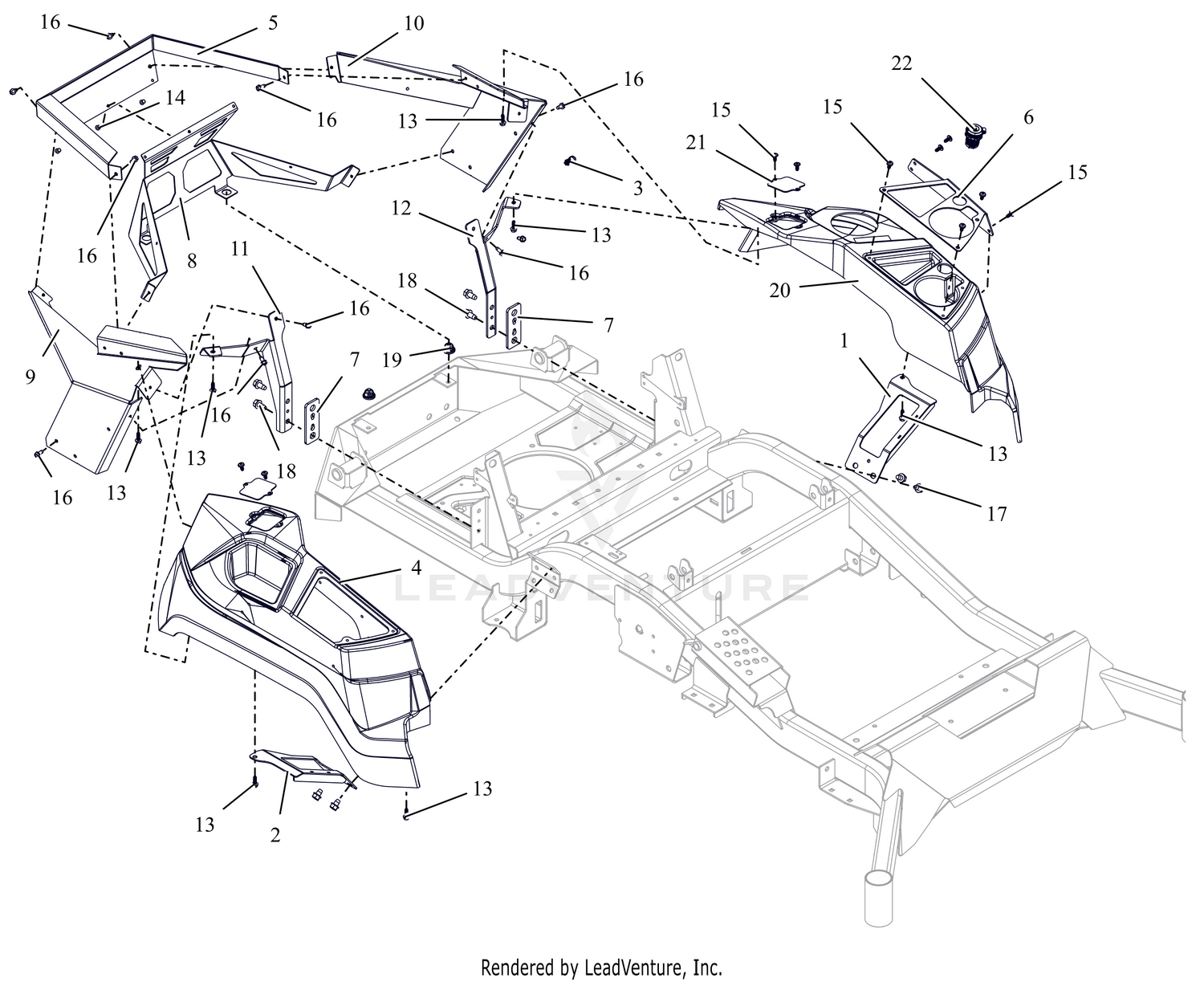

| Ref | Part Number | Description |
|---|
| 1 |
05095151 |
WLDMT, LH FENDER MOUNT Price: $15.95 |
| 2 |
05105151 |
WLDMT, RH FENDER MOUNT Price: $18.45 |
| 3 |
04451600 |
CLIP, CABLE GUIDE Price: $1.95 |
| 4 |
05100400 |
FENDER, RH APEX - 2017 Price: $45.95 |
| 5 |
05103541 |
GUARD- ENGINE WRAP Price: $27.45 |
| 6 |
30186359 |
PLATE-APEX CUP HLDR W/USB(ORG) Price: $21.45 |
| 7 |
05117441 |
PLATE- CONTROL PANEL SPACER Price: $6.45 |
| 8 |
05196751 |
GUARD, ENGINE Price: $26.95 |
| 9 |
05196841 |
PANEL- RH REAR FENDER MOUNT Price: $48.95 |
| 10 |
05196941 |
PANEL- LH REAR FENDER MOUNT Price: $48.95 |
| 11 |
05244441 |
BRKT- RH FENDER MOUNT Price: $30.95 |
| 12 |
05244541 |
BRKT- LH FENDER MOUNT Price: $29.95 |
| 13 |
06100231 |
SCR, PLASTITE .25-10X.75 ZCC Price: $1.45 |
| 14 |
06800120 |
RIVET, .1875 AL/AL .126-.250 Price: $1.45 |
| 15 |
07400123 |
SCR-PAN .25-15X.50 6L H/LZB500 Price: $2.45 |
| 16 |
07400210 |
SCR-TAP .25X.50 HWH ZB500 Price: $2.95 |
| 17 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC Price: $1.45 |
| 18 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC Price: $1.45 |
| 19 |
07500407 |
GROMMET, 10MM BOLLHOFF Price: $5.45 |
| 20 |
59113800 |
FENDER, LH APEX Price: $69.45 |
| 21 |
05078051 |
PLATE, ROPS HOLE-HD Price: $16.95 |
