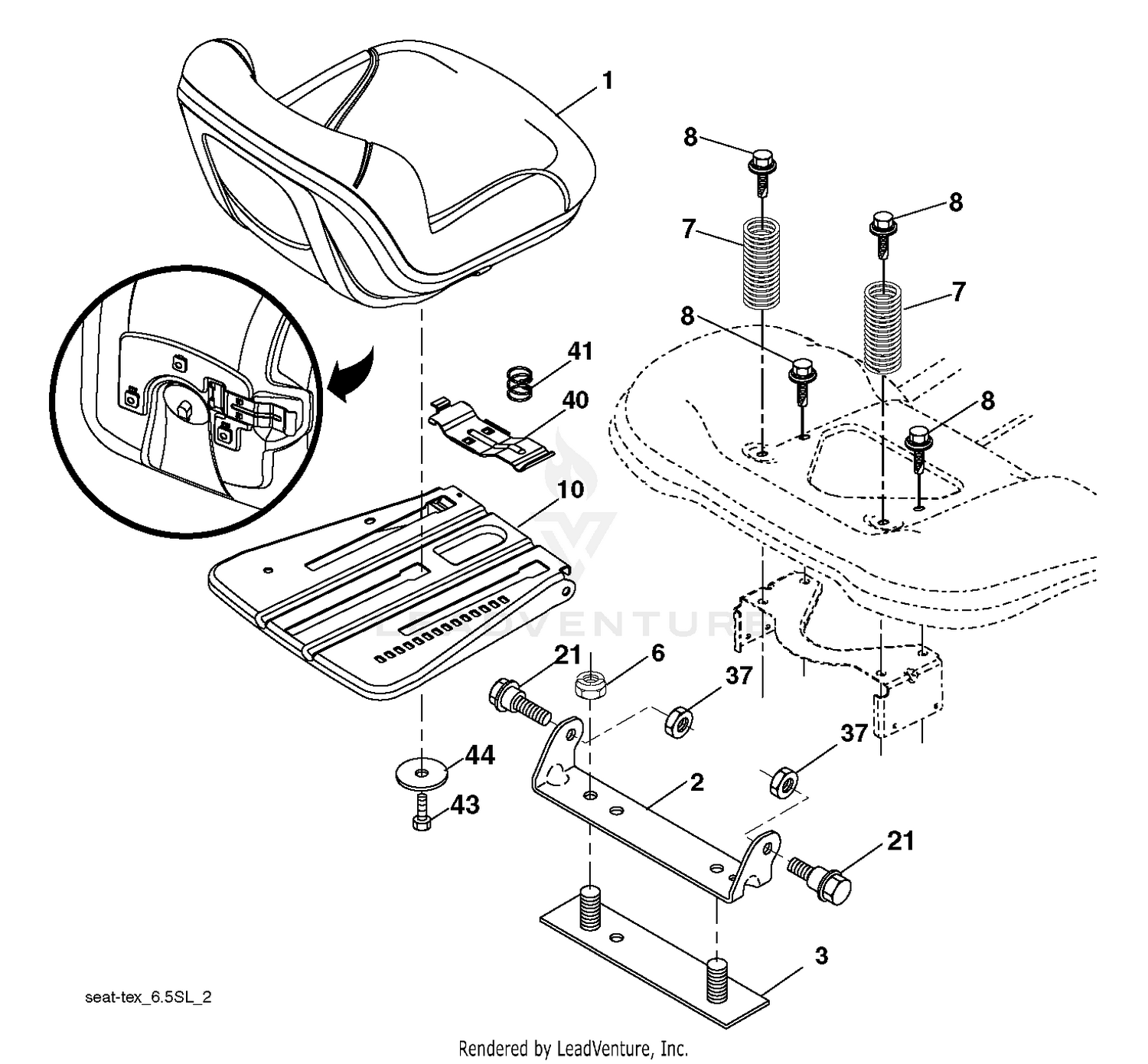

| Ref | Part Number | Description |
|---|
| 1 |
532439819 |
SEAT.TH130.GREY.HUSQ.TEX This part replaces 532197518. Price: $209.99 |
| 1 |
95-9200 |
PLUG Price: $4.78 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
95-9198 |
O-RING Price: $9.31 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
95-9197 |
E-CLIP Price: $4.77 |
| 4 |
95-9199 |
O-RING Price: $14.65 |
| 5 |
108-3264 |
SEAL-VITON Price: $10.14 |
| 6 |
108-3265 |
O-RING-VITON Price: $10.82 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
95-9196 |
TURRET Price: $15.10 |
| 8 |
41003 |
DIAPHRAGM Price: $1.90 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
95-9193 |
CAP-DIAPHRAM Price: $8.30 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
95-9192 |
BODY-SPLIT EYELET Price: $14.45 |
| 11 |
95-9191 |
O-RING Price: $1.86 |
| 12 |
99-0811 |
SCREW-CLAMP Price: $8.69 |
| 13 |
99-0812 |
CLAMP-UPPER Price: $5.84 |
| 14 |
99-0814 |
PIN-PIVOT Price: $2.90 |
| 15 |
95-9201 |
SHANK-HOSE Price: $7.82 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
