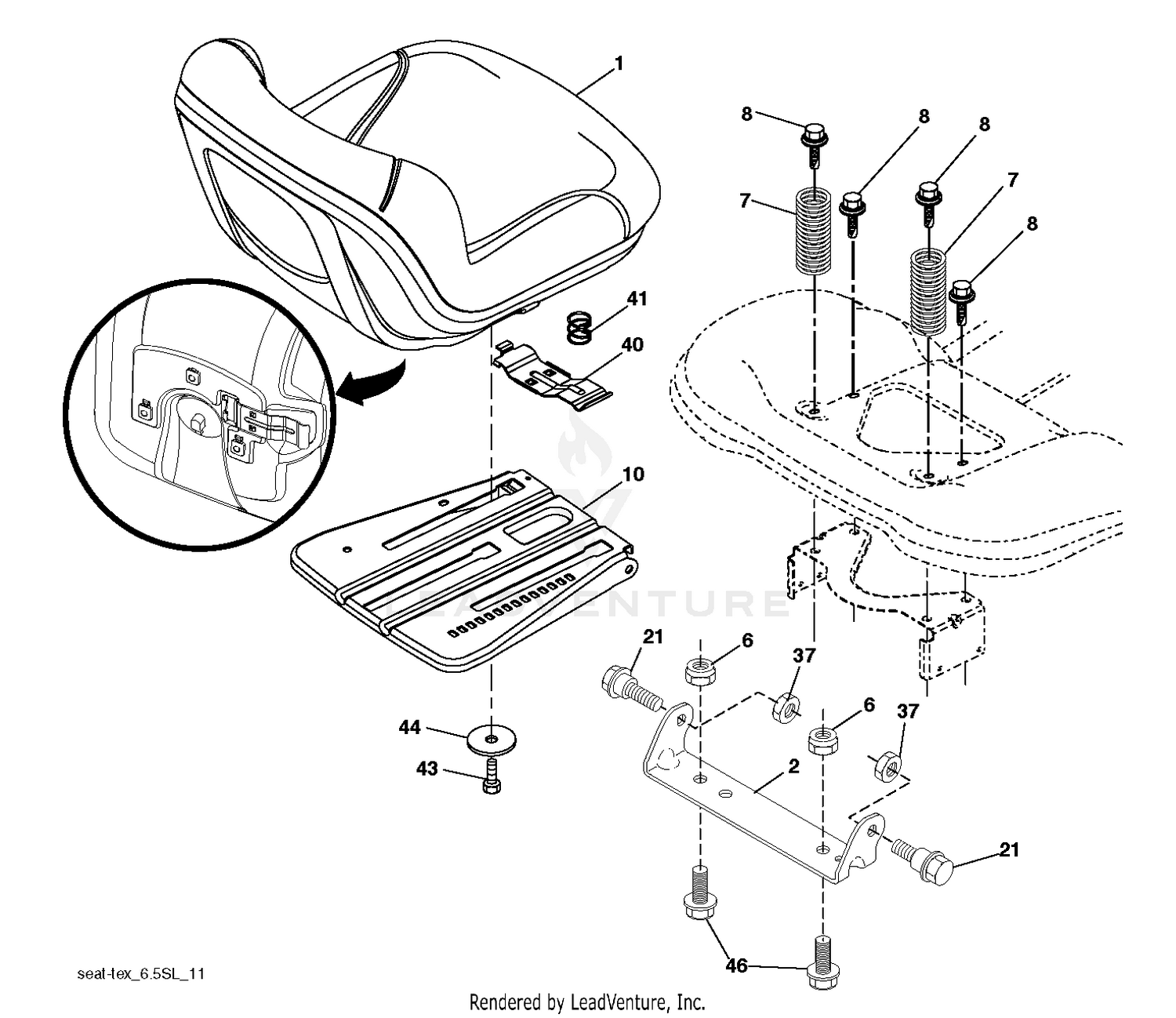

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 1 |
83-9720-01 |
DISCONTINUED This part replaces 83-9720. Price: Call Us |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
32128-33 |
NUT-HF Price: $0.25 |
| 4 |
83-9740-03 |
DISCONTINUED This part replaces 83-9740. Price: Call Us |
| 5 |
76-2200-03 |
FOOTREST-PEDAL, TRACTION This part replaces 76-2200. Price: $42.73 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
76-2260 |
PAD-FOOTREST Price: $8.40 |
| 7 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK Price: $5.99 |
| 8 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3218-2 |
NUT-JAM Price: $0.25 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
62-7400 |
DECAL Price: $24.54 |
| 11 |
14-5759 |
HOOD ASSEMBLY- RM216D This part replaces 83-7950. Price: $1,107.86 |
| 12 |
83-9970 |
DISCONTINUED Price: Call Us |
| 13 |
32128-14 |
NUT-HF Price: $0.41 |
| 15 |
83-9700-01 |
DISCONTINUED This part replaces 83-9700. Price: Call Us |
| 16 |
3212844 |
Nut-Flange Lock Price: Call Us |
| 17 |
83-9710-03 |
FOOTREST-PEDAL, TRACTION This part replaces 83-9710. Price: $78.54 |
| 18 |
83-9840 |
PAD-FOOT Price: $60.60 |
| 19 |
84-1650 |
DECAL - BRAKE Price: $7.02 |
| 20 |
83-9800-01 |
GRASS SHIELD-FRONT, LH This part replaces 83-9800. Price: $28.36 |
| 21 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $2.99 |
| 22 |
83-8510-01 |
BRACKET-FENDER, LEFT This part replaces 83-8510. Price: $24.64 |
| 23 |
3217-6 |
NUT-HEX Price: $1.19 |
| 24 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 25 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
85-4870 |
DISCONTINUED Price: Call Us |
| 27 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 28 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 29 |
83-8850-03 |
DISCONTINUED This part replaces 83-8850. Price: Call Us |
| 30 |
83-8860-01 |
R/H FRT SHIELD This part replaces 83-8860. Price: $20.35 |
| 31 |
85-4890-03 |
DISCONTINUED This part replaces 85-4890. Price: Call Us |
| 32 |
256-320 |
BUSHING-NYLON Price: $7.44 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 46 |
588090401 |
BOLT.3/8-16X1;1.25OD.WSHR.SEMS Price: $5.99 |
