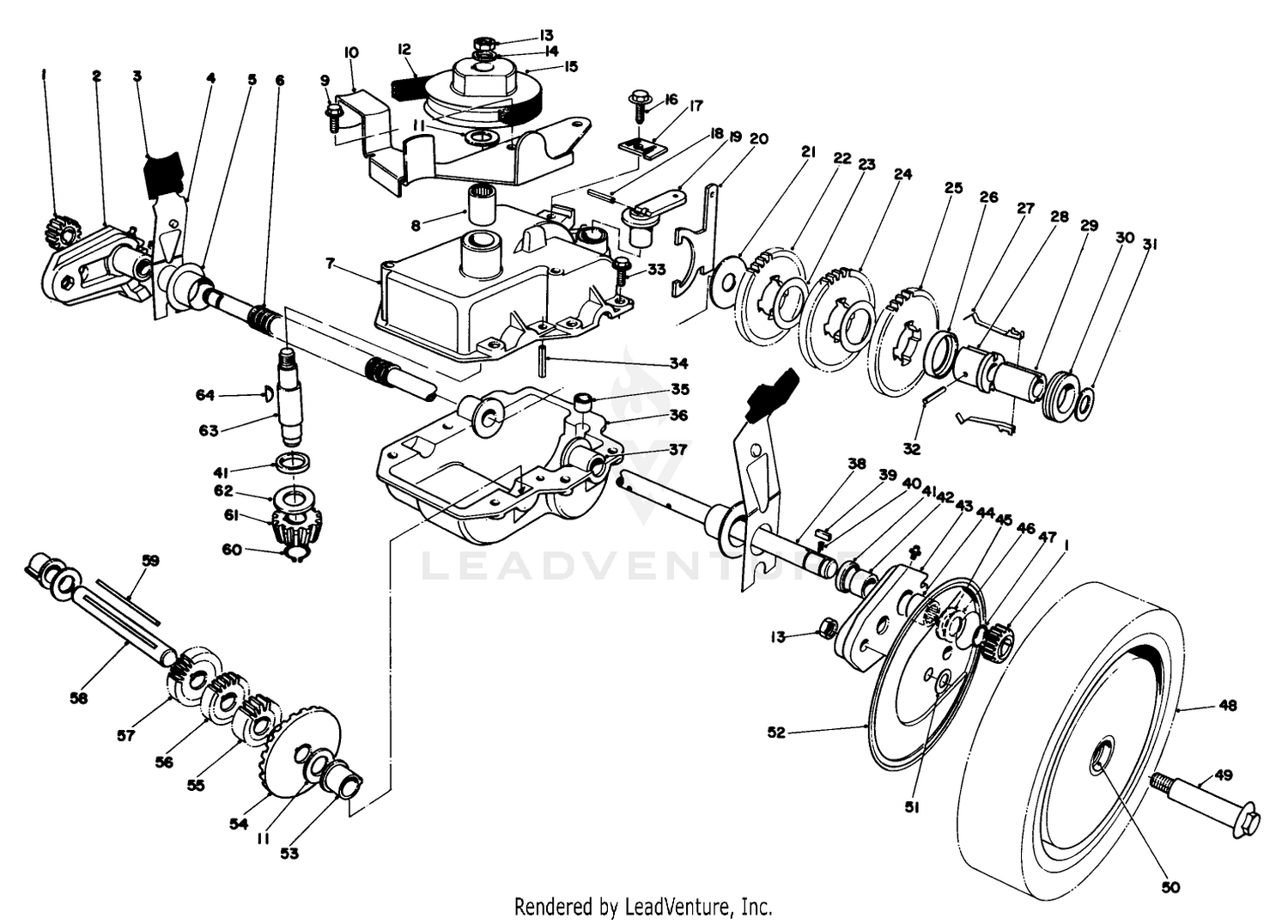

| Ref | Part Number | Description |
|---|
| 1 |
39-9160 |
GEAR-PINION Price: $9.84 |
| 2 |
49-7720 |
PIVOT ARM ASM RH This part replaces 29-9590. Price: $74.74 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
44-1010 |
SPRING ARM ASM SP Price: $25.85 |
| 5 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 6 |
24-7922 |
CONDUIT-CONVOLUTED, SPLIT Price: $9.99 |
| 7 |
39-7282 |
DISC PRC4 Price: Call Us |
| 8 |
47-6720 |
BEARING This part replaces 252-99. Price: $22.96 |
| 9 |
12-3270 |
SCREW Price: $3.09 |
| 10 |
46-3570 |
DISCONTINUED Price: Call Us |
| 11 |
364790 |
Washer Price: Call Us |
| 12 |
36-8070 |
V-BELT Price: $16.41 |
| 13 |
3296-6 |
NUT-LOCK This part replaces 32146-6. Price: $1.49 |
| 14 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 15 |
39-6740 |
PULLEY Price: $37.08 |
| 16 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 17 |
62-3720 |
CLAMP-CABLE This part replaces 46-5610. Price: $1.31 |
| 18 |
32121-99 |
PIN-COIL Price: $0.80 |
| 19 |
29-9560 |
LEVER-SHIFT Price: $10.39 |
| 20 |
60-8870 |
YOKE-SHIFT This part replaces 29-9520. Price: $16.30 |
| 21 |
29-9690 |
WASHER Price: $8.10 |
| 22 |
42-4740 |
GEAR-38T Price: $54.57 |
| 23 |
36-4770 |
WASHER Price: $3.50 |
| 24 |
29-9271 |
GEAR-42T Price: $58.12 |
| 25 |
46-3560 |
GEAR Price: $51.40 |
| 26 |
39-7830 |
KEY RETAINER Price: Call Us |
| 27 |
29-9330 |
KEY-SHIFT This part replaces 39-6470. Price: $18.44 |
| 28 |
55-8010 |
SLEEVE-GEAR This part replaces 39-6730. Price: $13.21 |
| 29 |
39-6720 |
SLEEVE Price: $10.49 |
| 30 |
29-9340 |
COLLAR-SHIFT Price: $26.11 |
| 31 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 32 |
32121-108 |
PIN-SPIROL This part replaces 32121-106. Price: $4.45 |
| 33 |
3214-44 |
Screw-Tapping Price: Call Us |
| 34 |
32121-100 |
ROLL PIN 3/16 X 1 IN Price: $1.13 |
| 35 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 36 |
29-9410 |
DISCONTINUED Price: Call Us |
| 37 |
47-5220 |
DISCONTINUE Price: Call Us |
| 38 |
12-6659 |
ASM - OUTPUT SHAFT This part replaces 44-0850. Price: $156.90 |
| 39 |
39-9680 |
KEY RECTANGULAR Price: $3.28 |
| 40 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 41 |
47-7260 |
SEAL This part replaces 253-86. Price: $5.36 |
| 42 |
47-2890 |
BUSHING This part replaces 256-110. Price: $3.19 |
| 43 |
29-9640 |
DISCONTINUED Price: Call Us |
| 44 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 252-96. Price: $4.69 |
| 45 |
608030 |
THRUST WASHER This part replaces 252-73. Price: $1.36 |
| 46 |
46-2840 |
DISCONTINUED Price: Call Us |
| 47 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 48 |
16-0029 |
WHEEL AND TIRE ASM This part replaces 44-0571. Price: $28.44 |
| 49 |
27-6230 |
BOLT-WHEEL Price: $5.35 |
| 50 |
27-6250 |
BUSHING Price: $2.17 |
| 51 |
40-1940 |
WASHER Price: $1.59 |
| 52 |
44-0600 |
WHEEL COVER Price: $25.10 |
| 53 |
47-5210 |
BUSHING Price: $15.01 |
| 54 |
39-6670 |
BEVEL GEAR Price: Call Us |
| 55 |
46-3540 |
GEAR-12T Price: $8.65 |
| 56 |
46-3550 |
GEAR-14T Price: $14.52 |
| 57 |
39-6650 |
GEAR-18T Price: $8.76 |
| 58 |
46-9470 |
DISCONTINUED Price: Call Us |
| 59 |
39-7843 |
DISCONTINUED This part replaces 39-7841. Price: Call Us |
| 60 |
32151-57 |
RING-RETAINING Price: $2.37 |
| 61 |
39-6660 |
PINION-BEVEL Price: $25.89 |
| 62 |
47-2910 |
WASHER-THRUST This part replaces 256-196. Price: $12.99 |
| 63 |
39-690 |
Input Shaft Price: Call Us |
| 64 |
3257-1 |
KEY-WOODRUFF Price: $1.79 |
