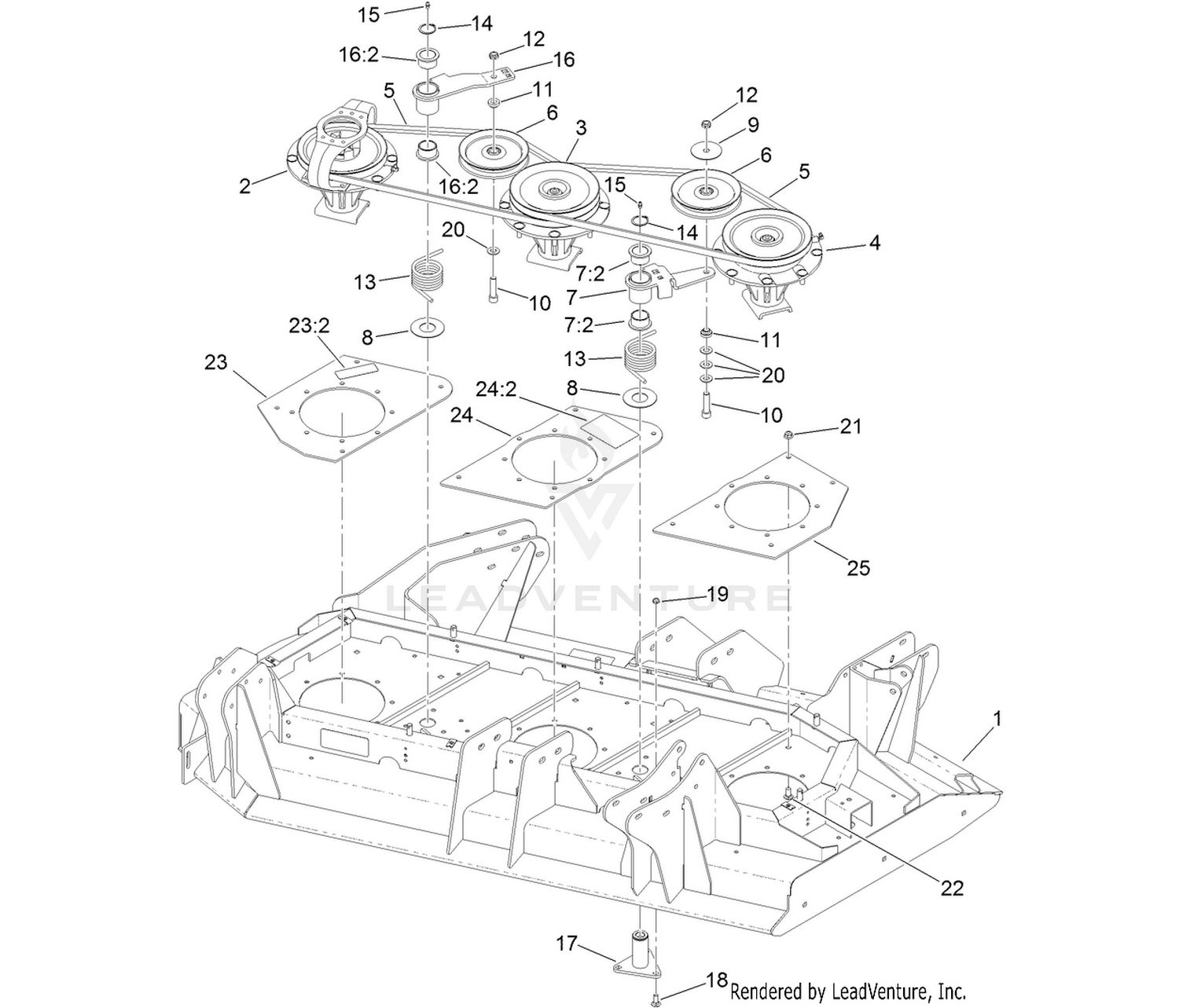

| Ref | Part Number | Description |
|---|
| 1 |
130-9241 |
RIGHT DECK ASM Price: $4,374.87 |
| 2 |
139-1034 |
SINGLE DRIVING SPINDLE ASM This part replaces 131-0768. Price: $1,001.77 |
| 3 |
139-1033 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 117-9234. Price: $537.23 |
| 4 |
139-1032 |
HIGH DRIVEN SPINDLE ASM This part replaces 117-9233. Price: $537.23 |
| 5 |
112-7377 |
BELT-V, B Price: $37.14 |
| 6 |
140-5847 |
PULLEY-IDLER This part replaces 01-268-0160. Price: $98.46 |
| 7 |
140-7079 |
IDLER ARM ASM This part replaces 117-9176. Price: $49.85 |
| 8 |
108-1926 |
WASHER Price: $5.30 |
| 9 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 10 |
3274-5 |
SCREW-HSH Price: $4.00 |
| 11 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 12 |
3296-45 |
NUT-HEX Price: $3.79 |
| 13 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 14 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
140-7078 |
IDLER ARM ASM This part replaces 108-1930. Price: $49.85 |
| 17 |
114-0997 |
PIVOT-IDLER Price: $53.85 |
| 18 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 19 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 23 |
132-1617 |
OUTER SPINDLE PLATE ASM Price: $71.57 |
| 24 |
132-1618 |
CENTER SPINDLE PLATE ASM Price: $88.58 |
