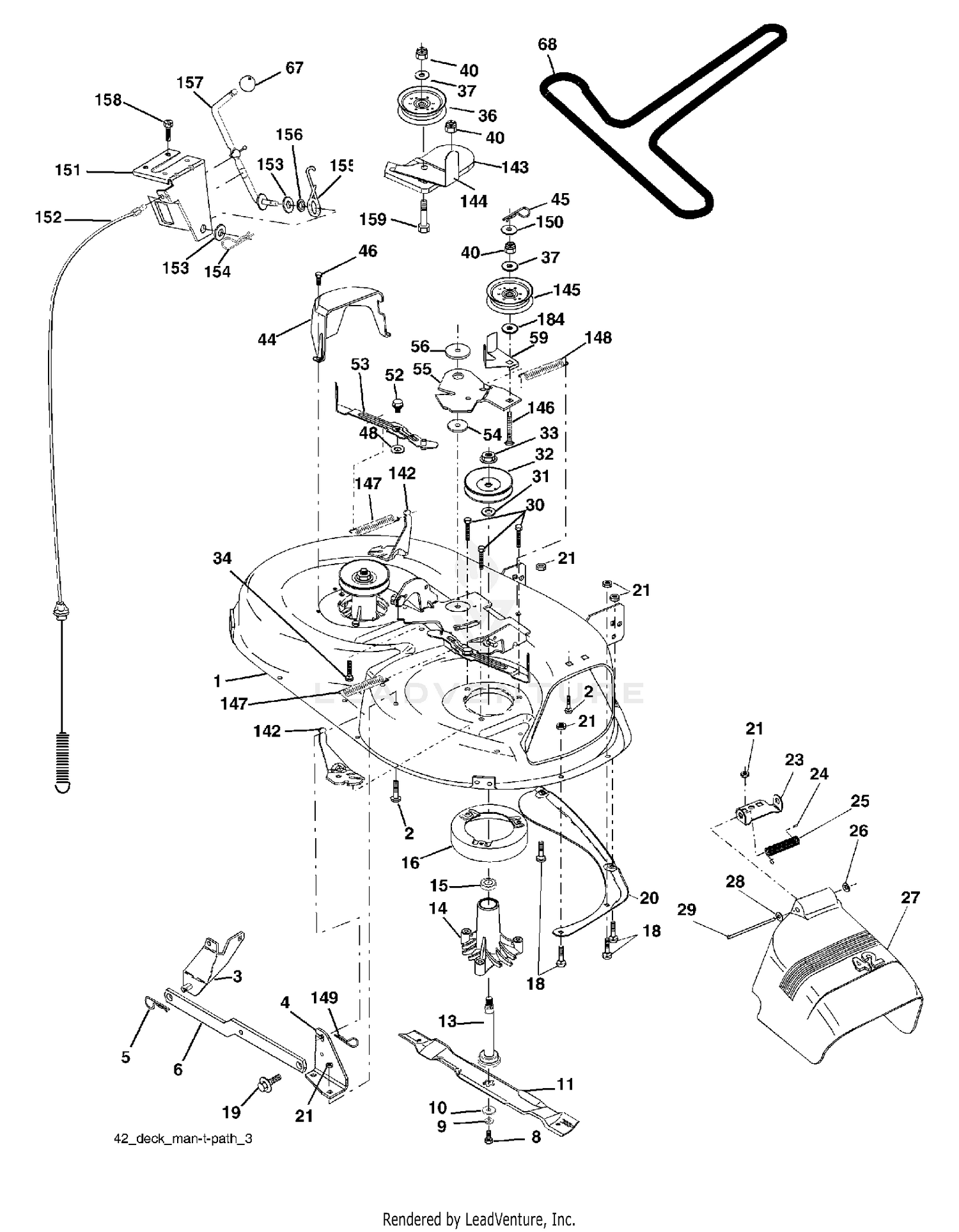

| Ref | Part Number | Description |
|---|
| 1 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 1 |
532176027 |
DECK.WELDMENT.42".BLACK This part replaces 532165892. Price: $279.99 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 2 |
98-8779-01 |
HITCH-TRAILER Price: $59.59 |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK Price: $6.99 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532004939. Price: $1.99 |
| 5 |
99-4543-01 |
TONGUE-TRAILER Price: $215.46 |
| 6 |
532178024 |
BAR SWAY DECK Price: $5.99 |
| 8 |
532850857 |
BLADE BOLT Price: $1.99 |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK Price: $3.99 |
| 18 |
872140505 |
BOLT This part replaces 532066238. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 23 |
532177563 |
BRKT, DEFL. MOWER Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $22.99 |
| 28 |
819111016 |
WASHER Price: $5.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP This part replaces 532178342. Price: $3.99 |
| 34 |
872110614 |
BOLT Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532104360. Price: $14.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK This part replaces 532134236. Price: $14.99 |
| 45 |
532004497 |
RETAINER M Price: $5.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 48 |
532133944 |
WASHER Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 53 |
532184907 |
ARM BRAKE ASSY Price: $11.99 |
| 54 |
532178515 |
WASHER Price: $2.99 |
| 55 |
532155046 |
ARM IDLER 42" MOWER LT/YT Price: $7.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $32.99 |
| 142 |
532165890 |
ARM SPRING BRAKE MOWER Price: $2.99 |
| 143 |
532157109 |
BRACKET, ARM IDLER Price: $3.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH This part replaces 532158634. Price: $5.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED This part replaces 532165888. Price: $14.99 |
| 146 |
532171977 |
BOLT, CARRIAGE IDLER BLACK Price: $3.99 |
| 147 |
532179748 |
SPRING This part replaces 532131335. Price: $1.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $2.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 151 |
532169670 |
BRACKET.CLUTCH.CABLE Price: $14.99 |
| 152 |
532175067 |
KIT.CLUTCH.CABLE This part replaces 532169676. Price: $29.99 |
| 153 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 532169674. Price: $3.99 |
| 154 |
532169675 |
SPRING RETAINER Price: $3.99 |
| 155 |
532169671 |
SPRING RETENTION LEVER Price: $2.99 |
| 156 |
532169672 |
SPACER CLUTCH CABLE Price: $3.99 |
| 157 |
532169669 |
ROD CLUTCH CABLE 3/8" Price: $27.99 |
| 158 |
817240408 |
SCREW Price: $3.99 |
| 159 |
872140614 |
BOLT Price: $2.99 |
| 184 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
