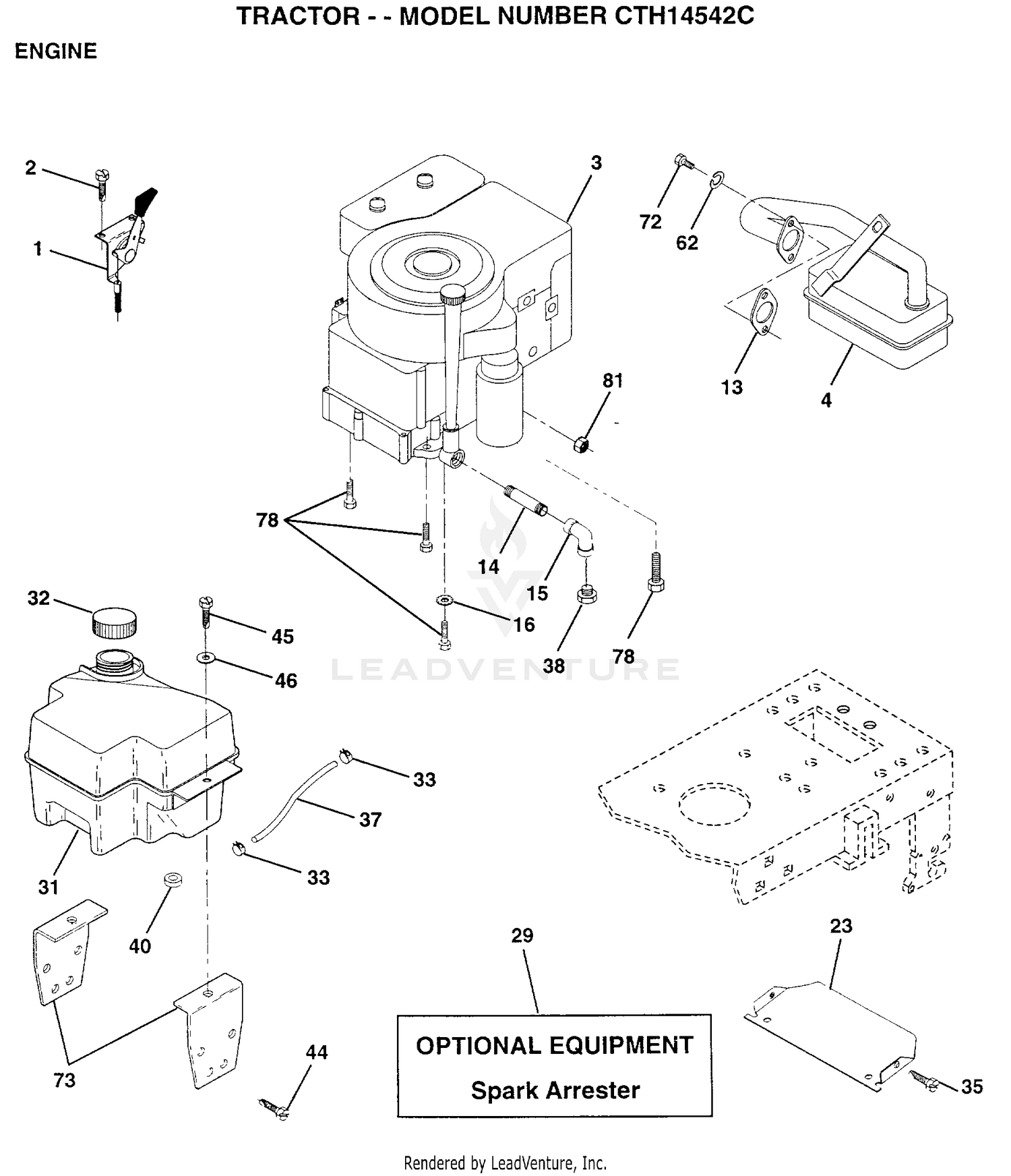

| Ref | Part Number | Description |
|---|
| 1 |
143893 |
CONTROL.THTL.19.6 Price: Call Us |
| 1 |
99-8440 |
DISCONTINUED Price: Call Us |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
95-3300-03 |
BRACKET-ENGINE, RIGHT FRONT Price: $103.58 |
| 3 |
287707 |
ENGINE B&S Price: Call Us |
| 3 |
33114-020 |
SCREW-HH Price: $0.28 |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
94-7416-03 |
BRACKET-MOUNT, ENGINE Price: $52.03 |
| 6 |
94-7430 |
SHAFT-STUB Price: $347.64 |
| 7 |
63-8150 |
KEY-SQUARE Price: $9.44 |
| 8 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 9 |
107-9061 |
ELECTRIC CLUTCH / BRAKE ASM Price: $1,140.58 |
| 10 |
3212-5 |
SCREW-HH Price: $2.46 |
| 11 |
105-3698 |
SPACER Price: $65.71 |
| 12 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 15 |
108-1395-03 |
STOP-CLUTCH Price: $35.50 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
106-4381-03 |
SHAFT-TENSION, PTO Price: $290.36 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 17 |
94-7344 |
PIVOT PLATE ASM Price: $354.30 |
| 18 |
99-9179 |
GASKET-EXHAUST Price: $51.29 |
| 19 |
99-9176 |
NUT-HEX Price: $8.53 |
| 20 |
92-8799 |
BEARING-FLANGE Price: $126.15 |
| 21 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 22 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 23 |
150554 |
SUB= 157405 Price: Call Us |
| 23 |
94-7433-03 |
BRACKET-MUFFLER Price: $19.64 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
5-0652 |
SPACER Price: $5.35 |
| 26 |
43-0090 |
SCREW-HH Price: $8.05 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 29 |
108-6579-03 |
MOUNT BRACKET ASM Price: $191.45 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 31 |
140280 |
SUB= 161911 Price: Call Us |
| 31 |
21-0400-01 |
SPRING-COMPRESSION Price: $20.88 |
| 32 |
110-9696 |
BOLT-HH Price: $18.93 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
108-9692 |
SWITCH-TEMPERATURE Price: $167.87 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 34 |
108-8696 |
MUFFLER-EXHAUST Price: $875.49 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
110436X |
SUB= 9151R Price: Call Us |
| 44 |
17490612 |
SCREW Price: Call Us |
| 45 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 73 |
140282 |
BRACKET.SUPT.TANK Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
