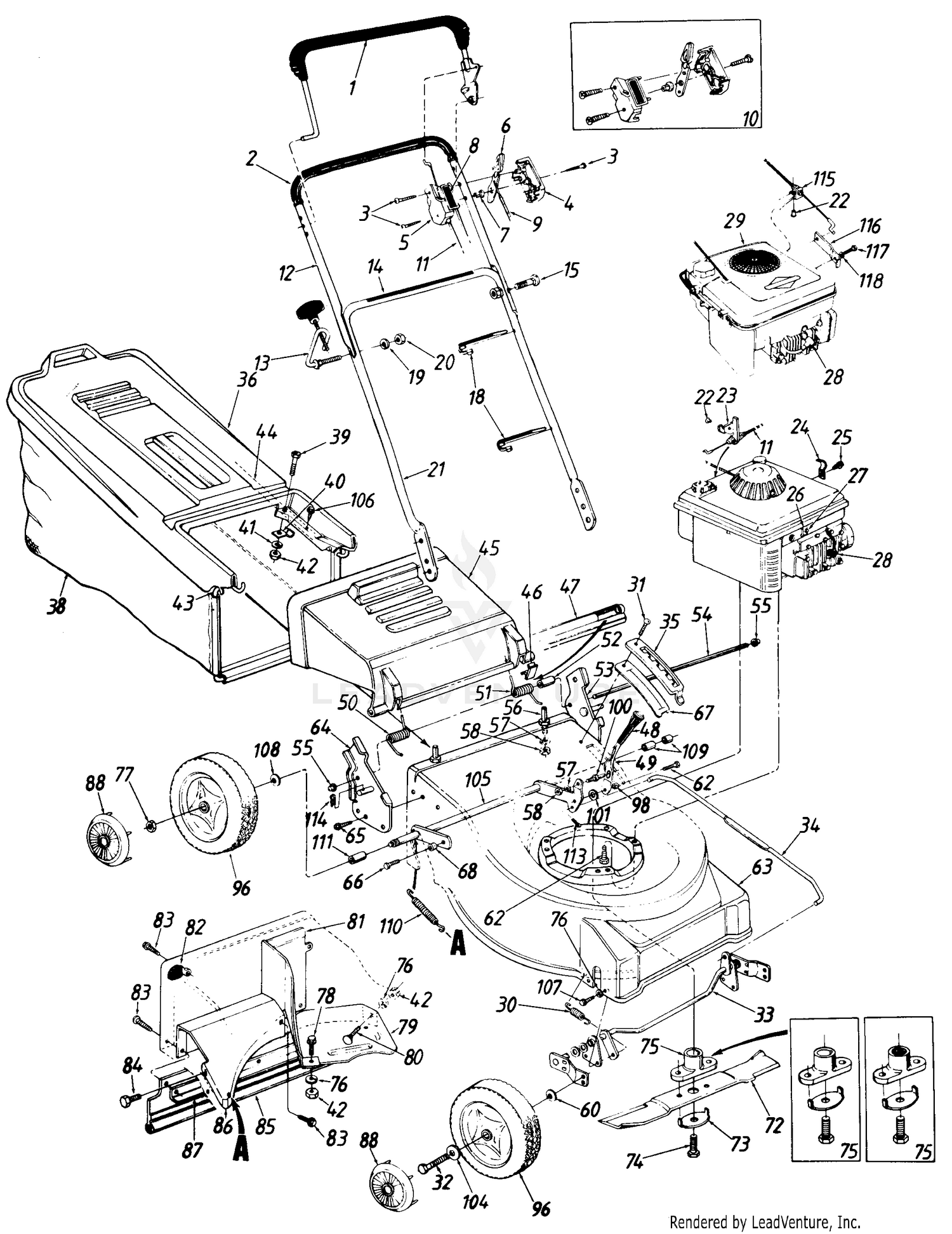

| Ref | Part Number | Description |
|---|
| 1 |
731-0609 |
BAIL (LH) Not Available Price: |
| 2 |
718-0145 |
Grip Price: Call Us |
| 3 |
710-0796 |
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. Price: $4.75 |
| 4 |
731-0817 |
PANEL Not Available Price: |
| 5 |
731-0816 |
CIUTCH PANEL HALF Not Available Price: |
| 6 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 7 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 8 |
777-5774 |
Control Label-Throttle Price: Call Us |
| 10 |
753-0430 |
CONTROL HOUSING COMP. Not Available Price: |
| 12 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0436. Price: |
| 13 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 14 |
777-5776 |
LABEL Price: Call Us |
| 15 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 18 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 19 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 20 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 21 |
749-0907B |
Lower Handle This part replaces 749-0505. Price: $43.95 |
| 28 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 29 |
N/A |
Engine |
| 30 |
732-0589 |
EXTENSION SPRING 2 89" LG. Not Available Price: |
| 31 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 32 |
738-0102 |
Axle Bolt Price: $9.22 |
| 33 |
17022-0637 |
AXLE ASSEMBLY BLACK Not Available This part replaces 17022. Price: |
| 34 |
747-0699 |
ROD-HGT ADJ Not Available Price: |
| 35 |
17323 |
PLATE-HGT Not Available Price: |
| 36 |
631-0003 |
HARDTOP BAG COVER Not Available This part replaces 731-0857. Price: |
| 38 |
964-0252 |
Grass Bag This part replaces 764-0252. Price: $125.85 |
| 39 |
710-0166A |
Truss Mach. Scr. 1/4-20 x 1.0" Lg. This part replaces 710-0166. Price: $6.24 |
| 40 |
12894 |
CABLE CLAMP Not Available Price: |
| 41 |
736-0463 |
Fl-Wash. .281" I.D. x .62" O.D. Price: $3.91 |
| 42 |
N/A |
UNKNOWN |
| 43 |
764-0411-0637 |
CATCHER FRAME Not Available This part replaces 747-0693. Price: |
| 44 |
749-0736 |
REAR CATCHER FRAME Not Available Price: |
| 45 |
931-0859A |
CHUTE DEFLECTOR Not Available This part replaces 731-0859. Price: |
| 46 |
731-0970B |
DEFLECTOR PLUG Not Available This part replaces 731-0970. Price: |
| 47 |
731-0858 |
EXTRUSION SEAL Not Available Price: |
| 48 |
720-0223 |
Grip Price: $12.89 |
| 49 |
732-0580 |
SPRING LEVER Not Available Price: |
| 50 |
732-0578 |
TORSION SPRING (RH) Not Available Price: |
| 51 |
732-0577 |
TORSION SPRING Not Available Price: |
| 52 |
750-0566A |
Spacer, .260 x .372 x 1.030 This part replaces 750-0566. Price: $9.17 |
| 53 |
12297 |
BRACKET ASSEMBLY Not Available Price: |
| 54 |
747-0698B |
HINGE PIN Not Available This part replaces 747-0698. Price: |
| 55 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 56 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 57 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 58 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 60 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 62 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 64 |
12296B-0637 |
BRACKET ASSEMBLY Not Available This part replaces 12296. Price: |
| 65 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 66 |
910-1006 |
HEX SCREW 3/8 x 7/8 Not Available This part replaces 710-1006. Price: |
| 67 |
721-0216 |
SEAL-HGT A Not Available Price: |
| 68 |
750-0526 |
Spacer.385" I.D. Price: $3.96 |
| 73 |
753-0525 |
KIT-BLADE MOUNTING Not Available This part replaces 736-0415. Price: |
| 75 |
753-0462 |
KIT-BLADE Not Available Price: |
| 76 |
N/A |
UNKNOWN |
| 77 |
712-0346 |
Hex Jam Nut 1/2-20 Thd. Price: $3.95 |
| 78 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 79 |
17013 |
BAFFLE-BELT Not Available Price: |
| 80 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 81 |
17007 |
BAFFLE-RR-PANEL Not Available Price: |
| 82 |
731-0931 |
PLUG-CORNER Not Available Price: |
| 83 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 84 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 85 |
731-0669 |
Rear Flap Price: $44.10 |
| 86 |
17008-0637 |
BAFFLE-RR-CHUTE Not Available This part replaces 17008. Price: |
| 87 |
14847 |
RETAINING STRIP Not Available Price: |
| 88 |
N/A |
Hub Cap |
| 96 |
N/A |
Wheel Ass'y. Comp. |
| 98 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 100 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 101 |
736-0258 |
Fl-Wash. 375" I.D. x 1.0" Price: $3.93 |
| 105 |
17031 |
AXLE ASSEMBLY-REAR Not Available Price: |
| 106 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 107 |
710-0352 |
Hex L-Wash. HD AB-Tap Scr. 1/4 x 38" Lg. Price: $4.05 |
| 108 |
736-0108 |
Fl-Wash. .510" I.D. x .75" O.D. Price: $6.07 |
| 109 |
711-0500 |
SLEEVE Not Available Price: |
| 110 |
732-0481 |
EXTENSION SPRING Not Available Price: |
| 111 |
711-0313 |
SLEEVE Not Available Price: |
| 113 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Price: $3.93 |
| 114 |
714-0104 |
Internal Cotter Pin 5/16" Dia. Price: $3.90 |
