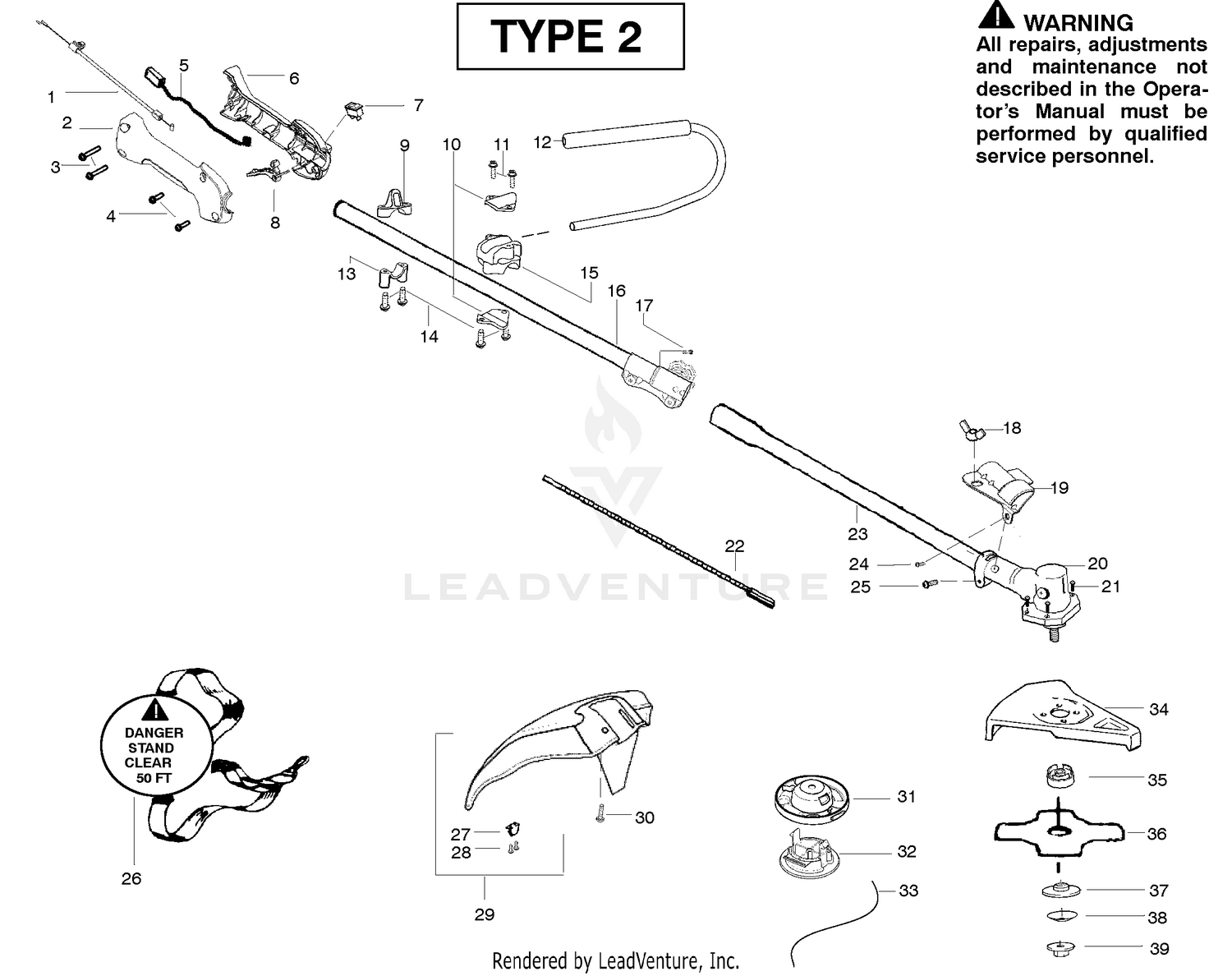

Cutting Equipment Type 2

Cutting Equipment Type 2

Parts (41)

RefPart NumberDescription
1 251-347 BEARING-BALL Price: $9.69
2 530057541 Hsg.-Throttle-right Price: $7.99
2 530059759 Assy-Throttle Cable Price: $9.99
3 106-6941 SEAL Price: $5.74
3 530016406 Screw Price: $1.99
4 106-6942 V-RING Price: $8.86
4 530015814 Screw Price: $1.99
5 107-8133 WASHER-FLAT Price: $3.05
5 530054183 Assy-Wire Price: $4.99
6 107-3505 SPACER-TOOL, ROLLER Price: $8.20
6 530059760 Hsg.-Throttle-left Price: $6.99
7 545030601 Kit-Switch Price: $4.99
8 530049107 TRIGGER RED This part replaces 545077601. Price: $1.99
9 530057986 Clamp-Harness (upper) Price: $2.99
10 530058563 Clamp-Bracket Price: $2.99
11 530015886 Screw Price: $1.99
13 530057987 Clamp-Harness (lower) Price: $3.99
14 530015940 Screw Price: $1.99
15 545024501 Clamp-Handlebar Price: $2.99
17 530016344 Screw Price: $1.99
18 530091373 Nut This part replaces 530016152. Price: $1.99
19 545150701 Bracket-Shield Price: $2.99
20 530096100 Gearbox Price: $54.99
21 530016312 Screw Price: $1.99
22 530096218 Shaft-Flex (lower) Price: $6.99
23 530071789 Assy-Lower Shaft Price: $17.99
24 530015775 Screw Price: $1.99
25 530016014 Screw Price: $1.99
26 530094417 Shoulder Strap This part replaces 530094408. Price: $20.65
27 530052286 Limiter-Line Price: $1.54
28 530015814 Screw Price: $1.99
30 530015820 Bolt Price: $1.99
31 545053902 Assy - Fixed Line Head This part replaces 545049401. Price: $22.99
32 545049501 Cap-Fixed Line Price: $5.99
33 952711635 Accy-Line (12 pcs.) Price: $6.95
34 530071383 Kit-Metal Shield Price: $9.99
35 530095815 Dust cup Price: $6.99
36 952711584 Accy.-Weed Blade Price: $12.81
37 530095816 Washer Price: $6.99
38 530016240 Washer-Belleville Price: $1.99
39 530015793 Nut-Flange Price: $1.99
