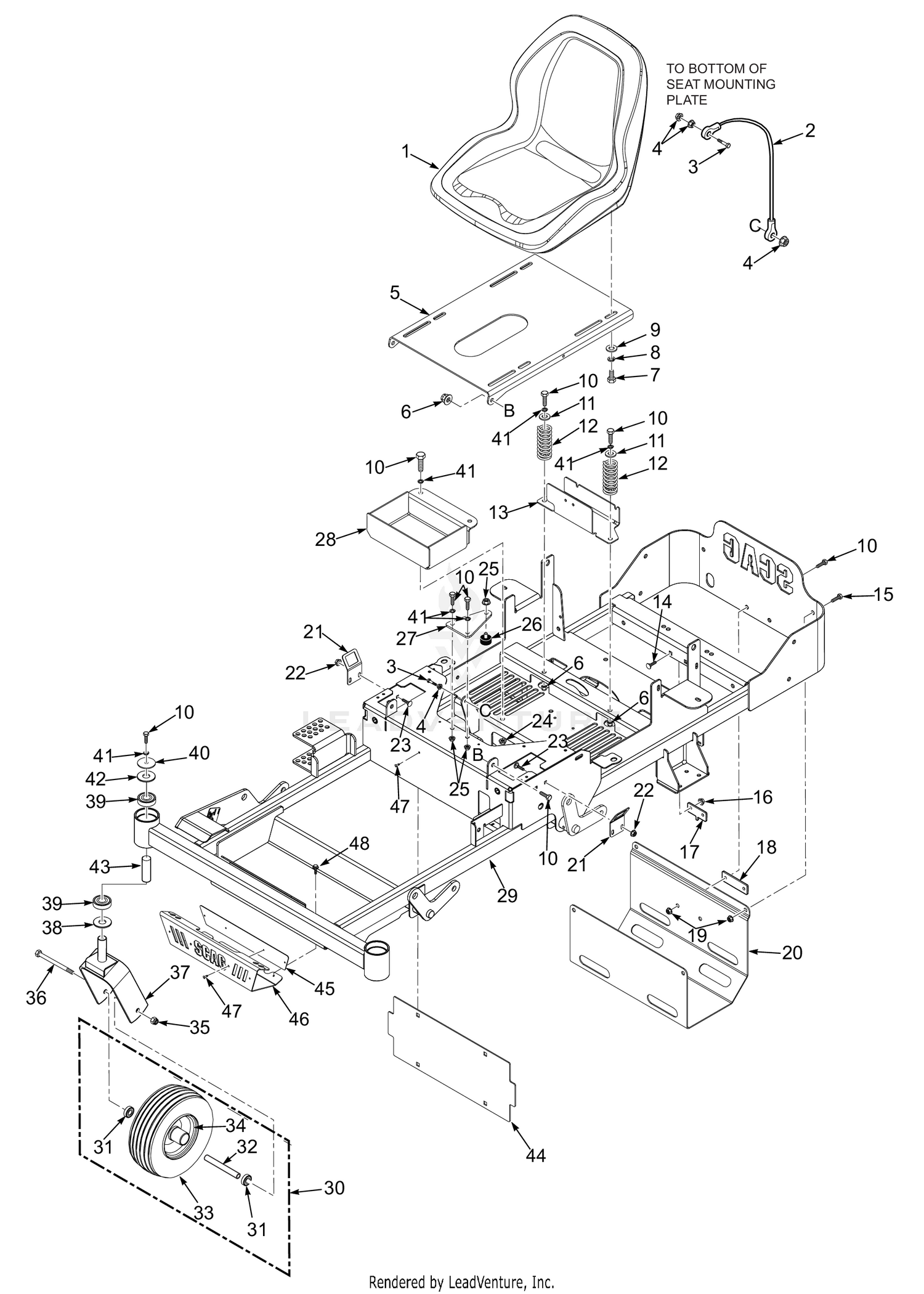

| Ref | Part Number | Description |
|---|
| 1 |
486499 |
Seat, SZL Price: Call Us |
| 2 |
483559 |
Cable, Seat Stop Price: Call Us |
| 3 |
04001-59 |
SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4 Price: Call Us |
| 4 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 5 |
463384 |
Seat-Plate W/Decal Price: Call Us |
| 6 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 7 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 8 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 9 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 10 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 12 |
483372 |
Spring, Seat Price: Call Us |
| 13 |
427341 |
Seat Stop Price: Call Us |
| 14 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 15 |
04001-18 |
Bolt, Hex Head, 3/8-16 x 3/4" Price: Call Us |
| 16 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 17 |
427961 |
Plate, Anti-Rotation Price: Call Us |
| 18 |
428187 |
Plate, Spacer Price: Call Us |
| 19 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 20 |
428131 |
Skid Plate, SZL-36 Price: Call Us |
| 21 |
426727 |
Bracket, Switch Price: Call Us |
| 22 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 23 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 24 |
04132-01 |
Threaded insert, Hex Head (Pressed) Price: Call Us |
| 25 |
04132-01 |
Threaded insert, Hex Head (Pressed) Price: Call Us |
| 26 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 27 |
428183 |
Battery Hold Down Price: Call Us |
| 28 |
428186 |
Battery Box Price: Call Us |
| 29 |
463349 |
Frame Assembly, SZL-36H & SZL42H Price: Call Us |
| 31 |
485243 |
Bearing Price: Call Us |
| 32 |
43974 |
Spacer, Wheel Bearings Price: Call Us |
| 33 |
483417 |
Tire, 11 x 4-5.00 2-Ply Price: Call Us |
| 35 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 36 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" (52V) Price: Call Us |
| 38 |
424636 |
Spacer, Yoke Price: Call Us |
| 39 |
483466 |
Bearing Price: Call Us |
| 40 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 41 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 42 |
04040-11 |
Flatwasher, 7/16" (.500 x 1.25 x .083") Price: Call Us |
| 43 |
43736 |
Spacer, Caster Bearing Price: Call Us |
| 44 |
428141 |
Plate, Backing Price: Call Us |
| 45 |
427875 |
Plate, Decal Price: Call Us |
| 46 |
427868 |
Bumper. Front Price: Call Us |
| 47 |
04090-03 |
Rivot, 3/16 x .402 POP Price: Call Us |
| 453060 |
Yoke |
Weldment, Caster Price: Call Us 453060 |
