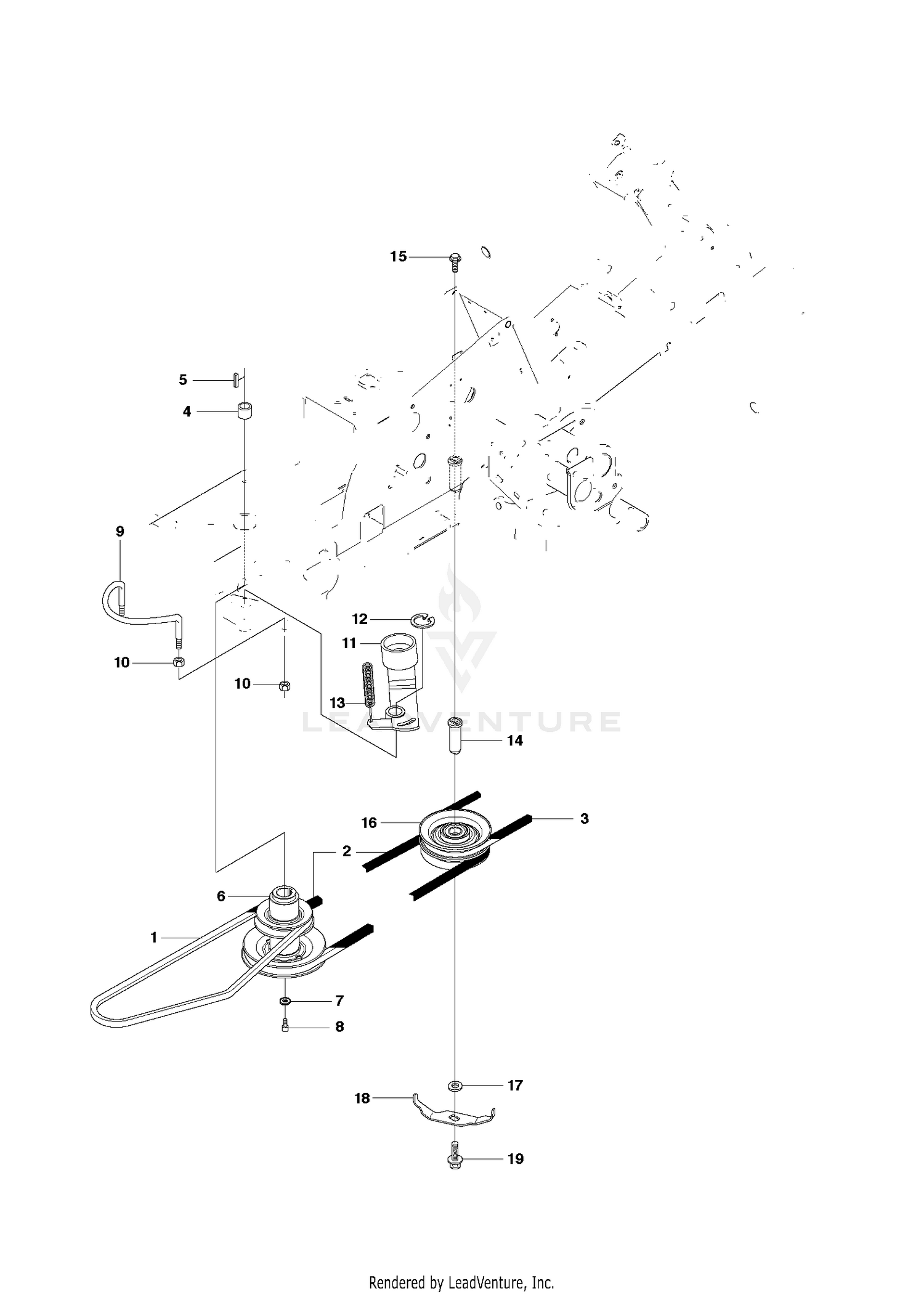

TRANSMISSION
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 589531201 | BELT Price: $27.99 |
| 3 | 594978001 | BELT Price: $59.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 112-7018 | VALVE-INLET Price: $41.87 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 20 | 120-2564 | VALVE-EXHAUST Price: $34.21 |
| 30 | 98-9648 | SPRING-VALVE Price: $13.49 |
| 40 | 107-9092 | RETAINER-SPRING Price: $2.58 |
| 50 | 117-7572 | COLLET-SPRING, VALVE Price: $9.43 |
| 60 | 99-8385 | SEAL-STEM, VALVE Price: $7.29 |
| 70 | 98-9497 | CAP-VALVE Price: $8.36 |
| 80 | 130-1248 | SHAFT-ARM, ROCKER Price: $39.09 |
| 90 | 99-8363 | BOLT-FLANGE Price: $1.66 |
| 100 | 98-9505 | BRACKET-ARM, ROCKER Price: $22.17 |
| 110 | 105-3758 | PIN-SPRING Price: $0.57 |
| 120 | 98-9507 | WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 | 110-3832 | WASHER-PLAIN Price: $0.71 |
| 140 | 98-9504 | SPRING-ARM, ROCKER Price: $0.66 |
| 160 | 112-7020 | ROCKER ARM ASM Price: $75.86 |
| 170 | 98-9502 | SCREW-ADJUSTING Price: $2.78 |
| 180 | 98-9503 | NUT Price: $1.33 |
| 190 | 98-9506 | STUD Price: $5.98 |
| 200 | 98-9393 | NUT Price: $2.72 |
