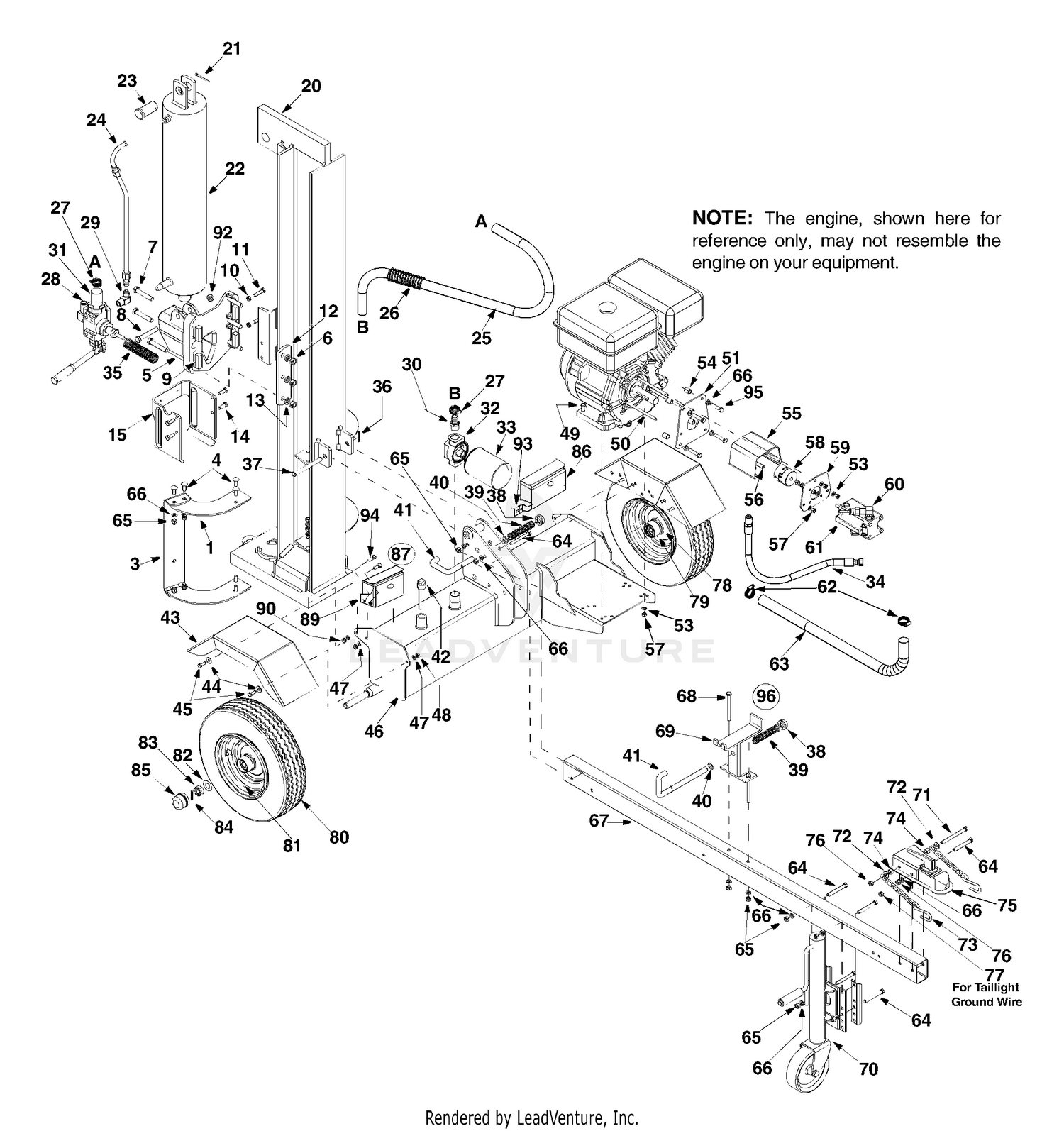

| Ref | Part Number | Description |
|---|
| 1 |
781-0686 |
LOGSPLITTER TRAY ARM KIT Not Available Price: |
| 3 |
753-05424 |
Log Cradle This part replaces 781-0682. Price: $46.92 |
| 4 |
710-3097 |
Carriage Bolt 3/8-16 x 1.0 Price: $5.79 |
| 5 |
719-0550A |
Wedge Assembly This part replaces 719-0550. Price: $215.56 |
| 6 |
712-0239 |
Lock Nut 1/2-20 Price: $5.01 |
| 7 |
710-1018 |
Hex Cap Screw 1/2-20 x 2.75 Price: $9.86 |
| 8 |
710-1806 |
Hex Screw 1/2-13 x 3.25 Price: $9.43 |
| 9 |
781-0351 |
Adjustable Gib Price: $16.53 |
| 10 |
712-0711 |
Hex Jam Nut 3/8-24 Price: $3.90 |
| 11 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 Price: $6.50 |
| 12 |
781-0790A-0637 |
WEDGE PLATE This part replaces 781-0790. Price: $35.76 |
| 13 |
736-0921 |
Lock Washer 1/2 Price: $3.90 |
| 14 |
710-0654A |
Hex Screw 3/8-16 x 1.0 Price: $3.75 |
| 15 |
781-0525 |
Dislodger Price: $107.70 |
| 20 |
981-04080 |
LOGSPLITTER BEAM ASSEMBLY Not Available This part replaces 681-0129B. Price: |
| 21 |
714-0211 |
Cotter Pin Price: $3.82 |
| 23 |
711-1135 |
CYLINDER MOUNTING PIN Not Available Price: |
| 24 |
727-0471 |
HYDRAULIC TUBE Not Available Price: |
| 25 |
727-0443 |
Return Hose 3/4" ID x 44" Lg. Price: $104.04 |
| 26 |
781-0526A |
HOSE GUARD This part replaces 781-0526. Price: $46.62 |
| 27 |
726-0132 |
Hose Clamp 5/8" Price: $13.50 |
| 28 |
737-0153 |
Return Elbow Price: $50.72 |
| 30 |
737-0235 |
HOSE BARB-3/4 IN Not Available Price: |
| 31 |
918-0481A |
Control Valve This part replaces 718-0481. Price: $336.67 |
| 32 |
753-06643 |
Filter Housing This part replaces 737-0316. Price: $85.81 |
| 33 |
723P0405 |
FILTER ELEMENT (10 MICRON LFP-1652) This part replaces 723-0405. Price: $39.50 |
| 34 |
727-0502 |
High Pressure Hydraulic Hose Price: $183.68 |
| 35 |
781-0538A |
HOSE GUARD This part replaces 781-0538. Price: $31.24 |
| 36 |
714-0470 |
Cotter Pin 1/8" Price: $3.90 |
| 37 |
738-0805 |
HINGE PIN Not Available Price: |
| 38 |
726-0214 |
Push Cap Price: $9.11 |
| 39 |
732-0583 |
Compression Spring 4" Price: $10.65 |
| 40 |
736-0116 |
Flat Washer.635 ID x.93 OD Price: $5.65 |
| 41 |
781-0690 |
Locking Rod Price: $31.33 |
| 42 |
737-0348A |
Vented Dipstick Price: $20.53 |
| 43 |
781-04002 |
Fender Assembly Price: $127.52 |
| 44 |
736-0371 |
Lock Washer 5/16 Price: $3.94 |
| 45 |
710-3038 |
Hex Screw Price: $4.17 |
| 46 |
753-05567 |
KIT-SERVICE LOGSPL Not Available This part replaces 681-0178A. Price: |
| 47 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 48 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 49 |
710-0409 |
Hex Cap Screw 5/16-24 x 1.75 Price: $4.02 |
| 50 |
710-1253 |
HEX SCREW 5/16-24X5.25LG Not Available Price: |
| 51 |
781-1100-0637 |
MOUNT PLATE Not Available This part replaces 781-1100. Price: |
| 53 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 54 |
711-0396 |
Spacer.385 x.623 x.750 Lg. Price: $10.02 |
| 55 |
719-0315 |
SHIELD COUPLING Not Available Price: |
| 56 |
914-0114 |
Key Not Available This part replaces 714-0114. Price: |
| 57 |
912-3057 |
NUT-5/16X 24 This part replaces 712-0123. Price: $5.94 |
| 59 |
781-0097-0637 |
SUPPORT BRACKET This part replaces 781-0097. Price: $61.35 |
| 61 |
918-04128 |
Gear Pump This part replaces 718-04128. Price: $852.43 |
| 62 |
726-0174 |
Hose Clamp Price: $8.87 |
| 63 |
727-0451 |
Suction Hose Price: $94.80 |
| 64 |
710-0521 |
Hex Cap Screw 3/8-16 x 3.0 Price: $4.54 |
| 65 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 66 |
736-0169 |
Lock Washer 3/8 Price: $3.33 |
| 67 |
781-0680B |
Tube This part replaces 781-0680A. Price: $168.83 |
| 68 |
710-0411 |
Hex Cap Screw 3/8-16 x 4.0 Price: $7.16 |
| 69 |
781-0398 |
BEAM SUPPORT ASSEMBLY Not Available Price: |
| 70 |
981-04029 |
Adjustable Jack Stand This part replaces 681-04029. Price: $259.82 |
| 71 |
710-0944 |
Hex Cap Screw 3/8-16 x 4.25 Price: $10.13 |
| 72 |
736-0262 |
Flat Washer.385 ID x.870 OD Price: $3.66 |
| 73 |
713-0433A |
LOGSPLITTER TOW CHAIN This part replaces 713-0433. Price: $39.25 |
| 74 |
750-0497 |
Spacer Price: $9.24 |
| 75 |
681-04030 |
Hitch Coupler Price: $63.83 |
| 76 |
712-0375 |
Lock Nut 3/8-16 Price: $4.02 |
| 77 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 78 |
921-0168 |
Grease Retainer This part replaces 721-0168. Price: $8.47 |
| 79 |
941-04298 |
Cone Bearing This part replaces 741-0987. Price: $14.84 |
| 80 |
634-0186 |
Wheel Assembly Price: $337.74 |
| 81 |
634-0186 |
WHEEL ASSEMBLY GRAY 16X4.8X8 This part replaces 634-0180. Price: $337.74 |
| 82 |
736-0351 |
Flat Washer .76" ID x 1.5" OD Price: $3.93 |
| 83 |
712-0359 |
Slotted Nut 3/4-16 Price: $10.13 |
| 84 |
714-0162 |
Cotter Pin 5/32" x 1-1/4" Lg. Price: $4.29 |
| 85 |
734-0873 |
Hub Cap Price: $10.38 |
| 86 |
681-0074-0637 |
TAIL LIGHT BRACKET (LH) (POWDER BLACK) Not Available This part replaces 681-0074. Price: |
| 89 |
781-0624-0637 |
TAIL LIGHT BRACKET Not Available This part replaces 781-0624. Price: |
| 90 |
912-3057 |
NUT-5/16X 24 This part replaces 712-0123. Price: $5.94 |
| 92 |
712-3022 |
Lock Nut 1/2-13 Price: $3.61 |
| 93 |
712-0292 |
Tinn Clip Nut 1/4-20 Price: $8.97 |
| 94 |
710-0157 |
Hex Screw 5/16-24 Price: $3.90 |
| 95 |
710-0347 |
Hex Screw 3/8-16 x 1.75 Price: $4.39 |
