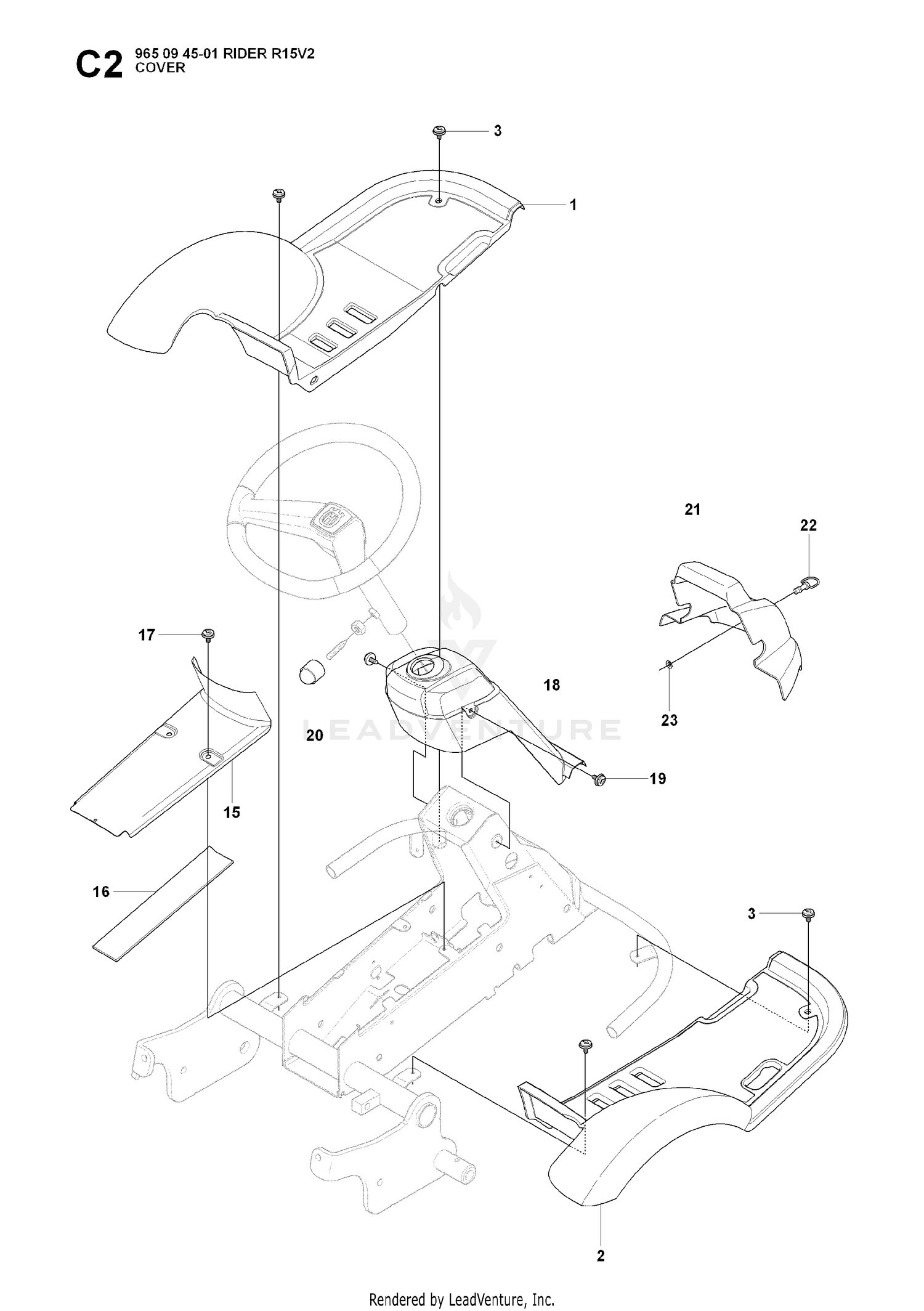

COVER 2
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544895901 | FOOT PLATE Price: $39.99 |
| 2 | 544895903 | FOOT PLATE Price: $44.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 544400501 | SCREW Price: $3.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 9 | 112-1725 | SPRING-COMPRESSION Price: $14.14 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 544239201 | COVER Price: $49.99 |
| 16 | 544427501 | MAT Price: $8.99 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 544400501 | SCREW Price: $3.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 544326501 | COVER Price: $24.99 |
| 19 | 107-2951 | FRAME Price: $239.55 |
| 19 | 544400501 | SCREW Price: $3.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 535433901 | COVER Price: $44.99 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 22 | 525390601 | BOLT This part replaces 506963501. Price: $8.99 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 25 | 106-3937 | CARRIER FRAME ASM Price: $489.45 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
