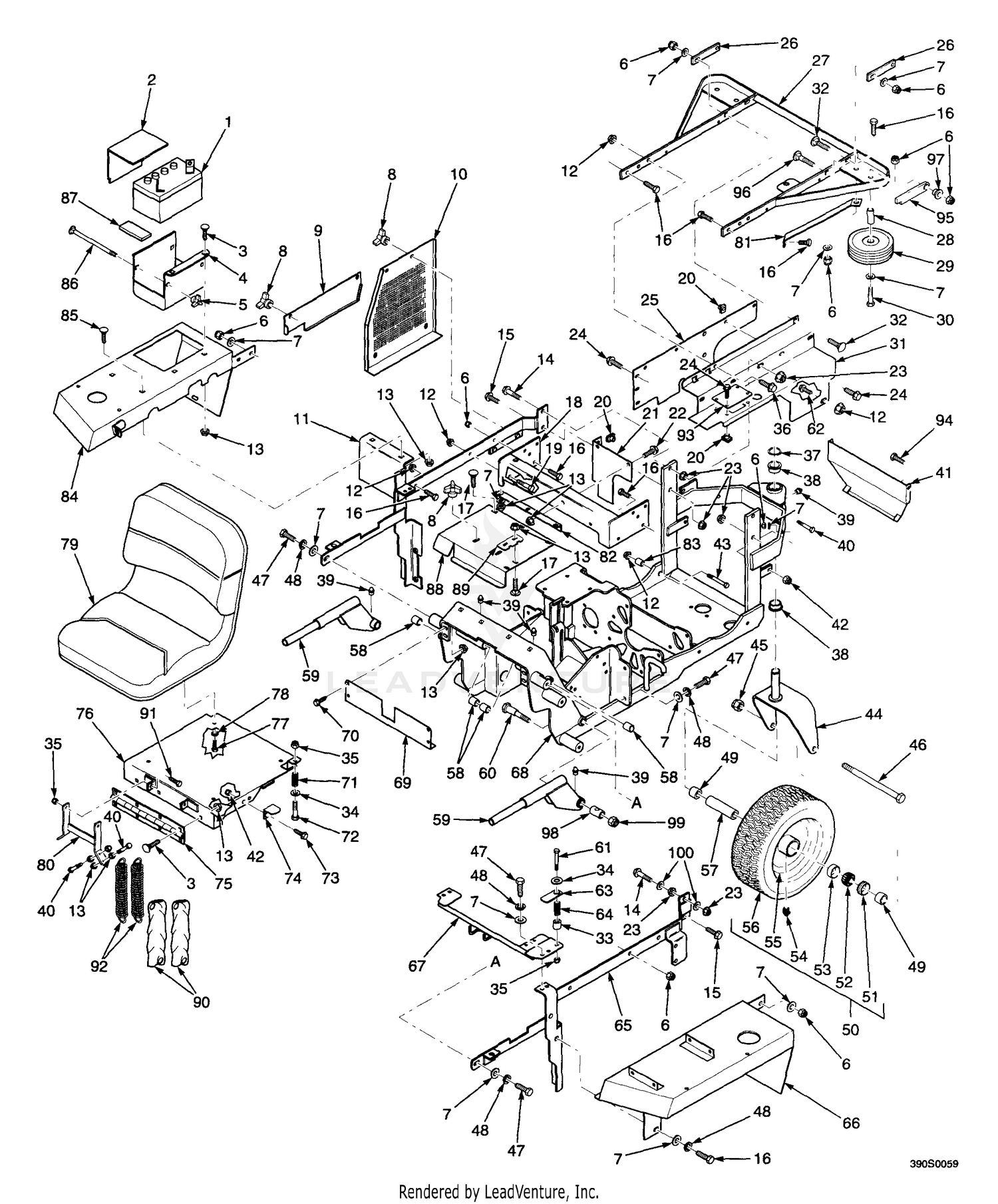

| Ref | Part Number | Description |
|---|
| 1 |
48015 |
Battery Price: Call Us |
| 2 |
42392 |
Cover, Battery Price: Call Us |
| 3 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4 Price: Call Us |
| 4 |
421197 |
Box, Battery Price: Call Us |
| 5 |
04029-01 |
Wingnut, Plastic, 1/4-20 Price: Call Us |
| 6 |
04021-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 7 |
04041-07 |
Flatwasher, 3/8 (.391 x .938 x .105) Price: Call Us |
| 8 |
04029-03 |
Wingnut, Plastic, 3/8-16" Price: Call Us |
| 9 |
422088 |
Belt Cover, Front Price: Call Us |
| 10 |
422089 |
Belt Cover, Rear Price: Call Us |
| 11 |
45756 |
Frame, Right Side Price: Call Us |
| 12 |
04019-04 |
Serr. Fl. Hex Nut, 3/8-16" Price: Call Us |
| 13 |
04019-03 |
Serr. Fl. Hex Nut, 5/16-18" Price: Call Us |
| 14 |
04017-39 |
Serr. Fl. Hex Head CPSCR, 1/2-13 x 2.00" Price: Call Us |
| 15 |
04017-37 |
Serr. Fl. Hex Head CPSCR, 1/2-13 x 1-1/4" Price: Call Us |
| 16 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 17 |
04003-14 |
Carriage Bolt, 5/16-18 x 1/2" Price: Call Us |
| 18 |
421894 |
Cross Brace, Frame Price: Call Us |
| 19 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 20 |
04110-01 |
U-Nut Price: Call Us |
| 21 |
422082 |
Heat Shield, Front Price: Call Us |
| 22 |
04017-18 |
Serr. Fl. Hex Head CPSCR, 5/16-18 x 1-1/4" Price: Call Us |
| 23 |
04019-06 |
Serr. Fl. Hex Nut, 1/2-13 Price: Call Us |
| 24 |
04017-05 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 25 |
422081 |
Heat Shield, Side Price: Call Us |
| 26 |
421967 |
Link Price: Call Us |
| 27 |
45757 |
Frame, Bagger Support Price: Call Us |
| 28 |
481376 |
Spacer, Wheel Price: Call Us |
| 29 |
481249 |
Wheel, Bumper Price: Call Us |
| 30 |
04001-31 |
Bolt, Hex Head, 3/8-16 x 2-1/2" Price: Call Us |
| 31 |
422230 |
Heat Shield, Top Price: Call Us |
| 32 |
04003-11 |
Carriage Bolt, 3/8-16 x 1-1/4" Price: Call Us |
| 33 |
43419 |
Pivot, Seat Latch Price: Call Us |
| 34 |
04040-15 |
Flatwasher, 5/16 (.375 x .875 x .083) Price: Call Us |
| 35 |
04021-10 |
Hex Locknut, Elastic Stop, 5/16-18 Price: Call Us |
| 36 |
04017-26 |
Serr. Fl. Hex Head CPSCR, 3/8-16 x 3/4" Price: Call Us |
| 37 |
04050-05 |
Retaining Ring, 1-1/4" Price: Call Us |
| 38 |
48100-02 |
Bushing, Oilite, 1.127 ID Price: Call Us |
| 39 |
48114-04 |
Grease Fitting Price: Call Us |
| 40 |
04001-12 |
Bolt, Hex Head, 5/16-18 x 1-3/4" Price: Call Us |
| 41 |
421902 |
Shield, Engine Price: Call Us |
| 42 |
04021-08 |
Hex Lock Nut, Elastic Stop, 1/4-20 Price: Call Us |
| 43 |
04001-54 |
Bolt, Hex Head, 3/8-16 x 3.00" Price: Call Us |
| 44 |
45802 |
Yoke, Rear Caster Price: Call Us |
| 45 |
04021-13 |
Hex Locknut, Elastic Stop, 5/8-11 Price: Call Us |
| 46 |
04001-40 |
Bolt, Hex Head, 5/8-11 x 9.00" Price: Call Us |
| 47 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1.00" Price: Call Us |
| 48 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 49 |
43020-07 |
Spacer Price: Call Us |
| 51 |
481897 |
Seal, Wheel Bearing This part replaces 48005-06. Price: Call Us |
| 52 |
481896 |
Cone, Bearing This part replaces 48005-05. Price: Call Us |
| 53 |
481895 |
Cup, Bearing This part replaces 48005-04. Price: Call Us |
| 54 |
48114-06 |
Grease Fitting Price: Call Us |
| 55 |
481900 |
RIM ASSY., PAINTED This part replaces 481303-03. Price: Call Us |
| 56 |
481899 |
TIRE, 13 X 6.50-6 This part replaces 481303-02. Price: Call Us |
| 57 |
43405 |
Sleeve, Rear Tire Price: Call Us |
| 58 |
48100-06 |
Bushing, Oilite, .753 ID Price: Call Us |
| 59 |
46959 |
Shaft, Push Arm Mounting Price: Call Us |
| 60 |
43434 |
Pivot, Pusharm Price: Call Us |
| 61 |
04001-13 |
Bolt, Hex Head, 5/16-18 x 2-3/4" Price: Call Us |
| 62 |
04017-26 |
Serr. Fl. Hex Head CPSCR, 3/8-16 x 3/4" Price: Call Us |
| 63 |
422085 |
Latch, Seat Price: Call Us |
| 64 |
48050 |
Spring Price: Call Us |
| 65 |
45755 |
Frame, Left Side Price: Call Us |
| 66 |
46884 |
Fender, Left With Decal Price: Call Us |
| 67 |
45824 |
Crossbrace Price: Call Us |
| 68 |
461025 |
MAINFRAME ASSY, STR (SERVICE) This part replaces 46961. Price: Call Us |
| 69 |
422091 |
Crossmember, Front Price: Call Us |
| 70 |
04017-16 |
Serr. Fl. Hex Head CPSCR, 5/16-18 x 3/4" Price: Call Us |
| 71 |
481389 |
Spring, Seat Price: Call Us |
| 72 |
04001-130 |
Bolt, Special Price: Call Us |
| 73 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 74 |
422090 |
Actuator, Seat Switch Price: Call Us |
| 75 |
481246 |
Hinge, Seat Price: Call Us |
| 76 |
45800 |
Seat Base Price: Call Us |
| 77 |
04001-08 |
Bolt, Hex Head, 5/16-18 x 3/4" Price: Call Us |
| 78 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 79 |
481362 |
Seat Price: Call Us |
| 80 |
45875 |
Mounting Brkt Wlmt, Deck Springs Price: Call Us |
| 81 |
421899 |
Brace, Bucket Support Price: Call Us |
| 82 |
481388 |
Hinge, Gearbox Cover Price: Call Us |
| 83 |
43404 |
Spacer Price: Call Us |
| 84 |
46885 |
Fender, Right With Decal Price: Call Us |
| 85 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4" Price: Call Us |
| 86 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 87 |
48661 |
Pad, Rubber Price: Call Us |
| 88 |
46966 |
G'BOX COVER W/DECALS This part replaces 46894. Price: Call Us |
| 89 |
422087 |
Bracket, Dump Valve Price: Call Us |
| 90 |
481374 |
Spring Cover Price: Call Us |
| 91 |
04001-09 |
Bolt, 5/16-18 x 1.00" Price: Call Us |
| 92 |
481250 |
Spring, Deck Price: Call Us |
| 93 |
422229 |
Cover, Access Hole Price: Call Us |
| 94 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 95 |
422292 |
Prop Rod, Hopper Price: Call Us |
| 96 |
04003-05 |
Carr. Bolt, 3/8-16 x 1-1/2" Price: Call Us |
| 97 |
43260 |
Washer, Step Price: Call Us |
| 98 |
481501 |
Bushing, 1.003 ID x 2.10" Price: Call Us |
| 99 |
04021-14 |
Nut, 3/4-16 UNF Elastic Stop Price: Call Us |
