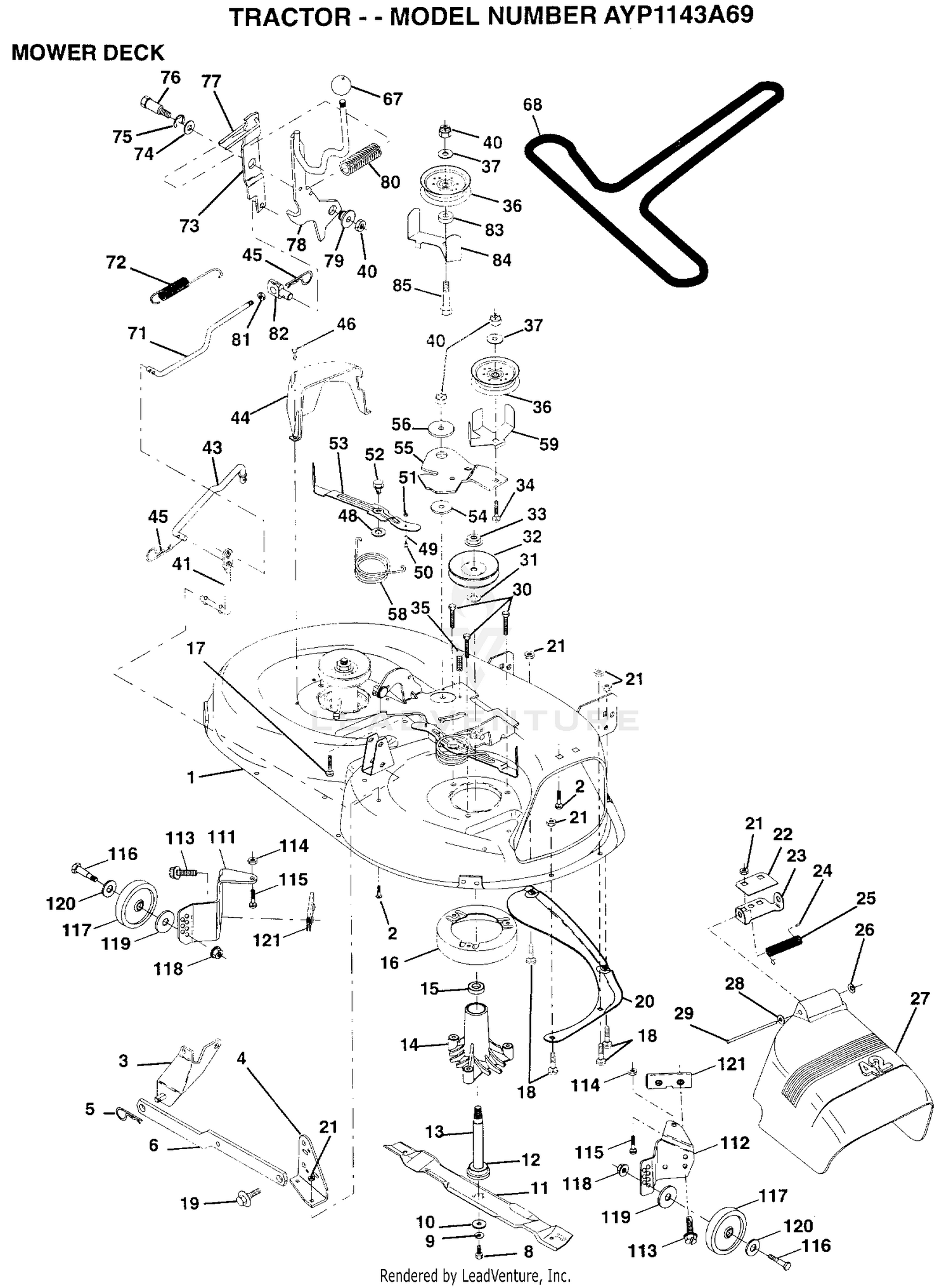

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 2 |
105-7822 |
DECAL-CAUTION Price: $13.82 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
2412-4 |
CLAMP-R Price: $4.22 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
105-2564 |
BATTERY COVER ASM Price: $78.84 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
72-3560 |
DECAL Price: $12.52 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 42 |
72-3700 |
DECAL-DANGER Price: $38.02 |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 44 |
93-3177-03 |
COVER-BOX, TOOL Price: $56.35 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 50 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 52 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 84 |
144394 |
SUB= 156084 Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 111 |
140353 |
SUB= 155197 Price: Call Us |
| 112 |
132262 |
SUB= 155198 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
