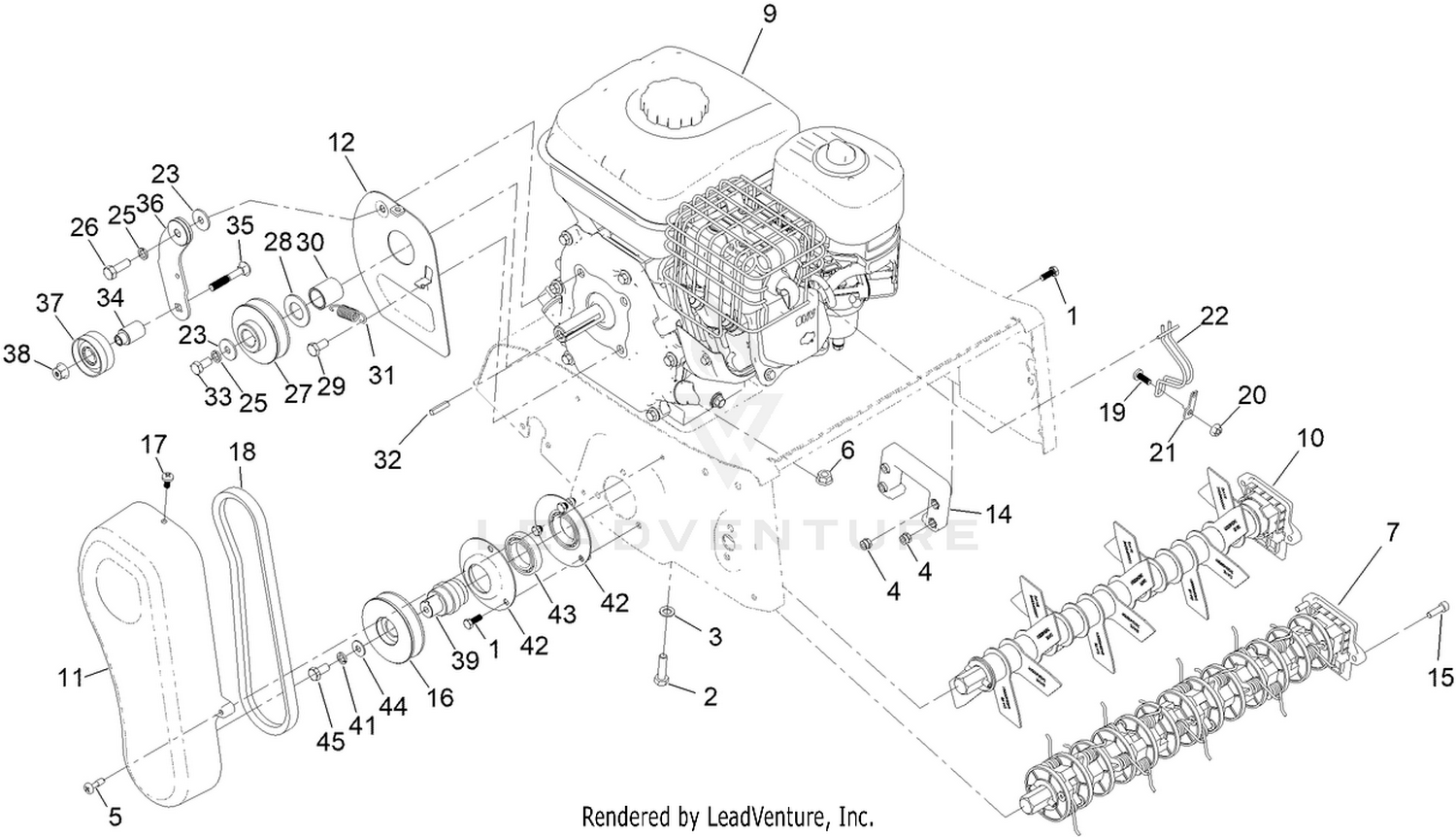

| Ref | Part Number | Description |
|---|
| 1 |
134-5466 |
BOLT-HEX Price: $0.42 |
| 2 |
09369 |
SCREW-HH Price: Call Us |
| 3 |
134-5498 |
WASHER Price: $0.28 |
| 4 |
134-5500 |
NUT-LOCK, PREVAILING TORQUE Price: Call Us |
| 5 |
134-5501 |
SCREW Price: $0.71 |
| 6 |
134-0118 |
NUT-LOCK, FLANGE Price: Call Us |
| 7 |
134-7553 |
SPRING TINE ASSEMBLY Price: $58.99 |
| 10 |
134-7556 |
SCARIFIER BLADE SHAFT ASSEMBLY Price: $58.99 |
| 11 |
134-5574 |
GUARD-PULLEY Price: $7.40 |
| 12 |
134-5592 |
PLATE-PULLEY, ENGINE Price: $11.06 |
| 14 |
134-5548 |
DOCK-SHAFT, TINE Price: $2.80 |
| 15 |
134-5573 |
SCREW-SOCKET CAP HEAD Price: $0.28 |
| 16 |
134-5555 |
PULLEY-SHAFT, TINE Price: $16.03 |
| 17 |
134-5553 |
SCREW-PAN HEAD Price: $0.28 |
| 18 |
134-5626 |
BELT Price: $5.37 |
| 19 |
134-6108 |
CROSS SCREW M6X16 Price: $0.71 |
| 20 |
134-6109 |
M6 HEX NUT Price: $0.95 |
| 21 |
134-6110 |
EXHAUST GUARD BRACKET Price: $0.29 |
| 22 |
134-6111 |
GUARD-EXHAUST Price: $1.86 |
| 23 |
134-5591 |
SPACER-SHAFT Price: $0.37 |
| 25 |
134-5488 |
WASHER- LOCK, SPRING Price: $0.28 |
| 26 |
03162 |
SCREW-HH Price: Call Us |
| 27 |
134-5590 |
PULLEY Price: $16.03 |
| 28 |
134-5595 |
SPACER-SHAFT Price: Call Us |
| 29 |
134-5596 |
BOLT-HEX Price: Call Us |
| 30 |
134-6263 |
SHEATH Price: Call Us |
| 31 |
134-5604 |
SPRING Price: $0.67 |
| 32 |
134-5605 |
KEY Price: Call Us |
| 33 |
134-5483 |
BOLT-HEX Price: $0.42 |
| 34 |
134-5599 |
SLEEVE Price: $1.76 |
| 35 |
134-5600 |
BOLT-CARRIAGE Price: $0.28 |
| 36 |
134-6115 |
PULLEY ARM WELDED ASSY Price: Call Us |
| 37 |
134-5602 |
BEARING Price: $4.97 |
| 38 |
134-5507 |
NUT-LOCK, PREVAILING TORQUE Price: $0.58 |
| 39 |
134-5494 |
COUPLER Price: $6.67 |
| 41 |
134-5488 |
WASHER- LOCK, SPRING Price: $0.28 |
| 42 |
134-5487 |
FLANGE Price: $2.85 |
| 43 |
134-5485 |
BEARING Price: $7.10 |
| 44 |
134-5490 |
WASHER Price: $0.28 |
