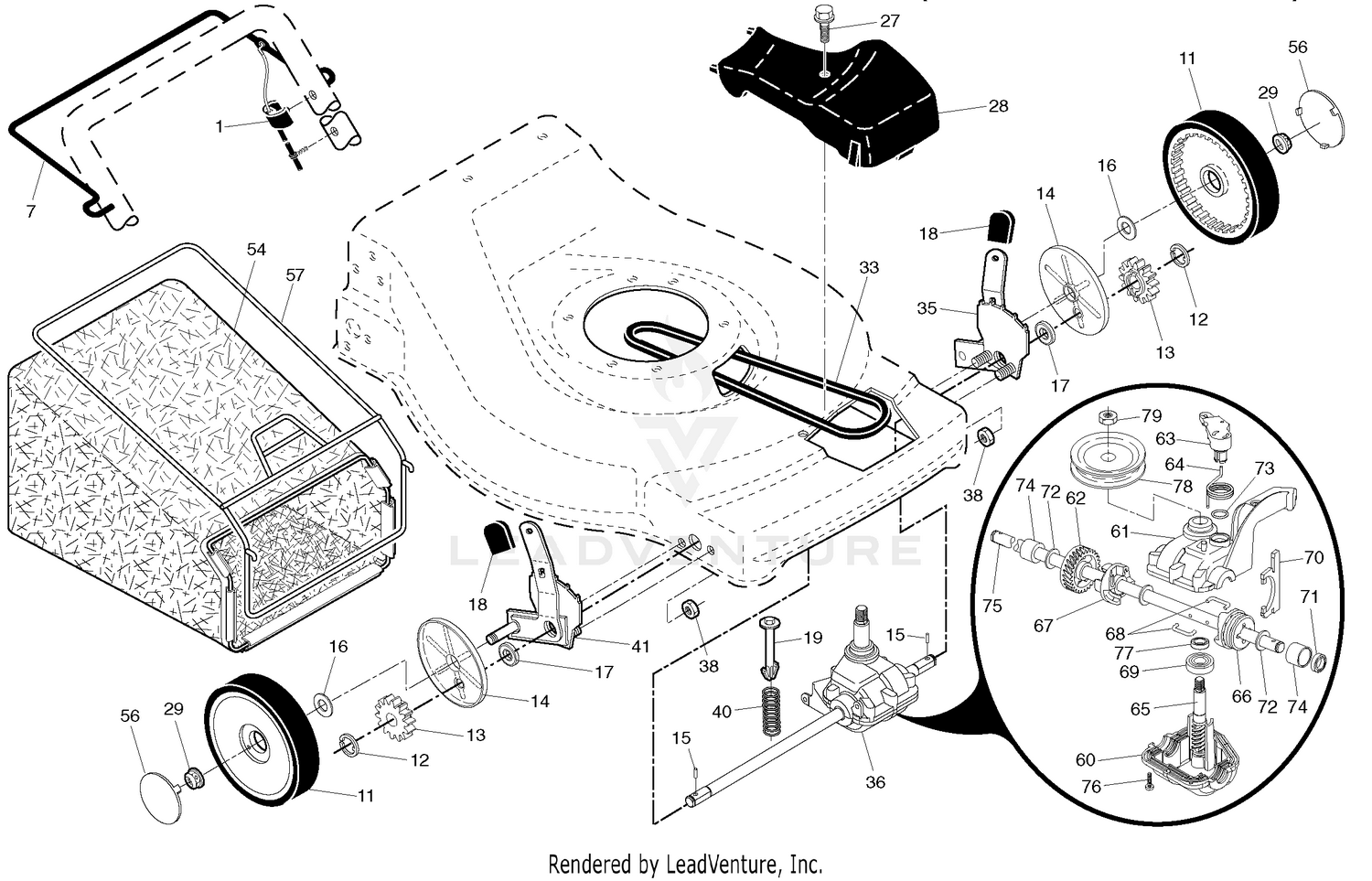

| Ref | Part Number | Description |
|---|
| 1 |
68-5370 |
DECAL Price: $6.21 |
| 2 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 3 |
21-9260 |
COVER-DUST Price: $8.19 |
| 4 |
82-8660-01 |
COVER-TOWER Price: $30.45 |
| 5 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 6 |
150495 |
Retainer, Spring Price: Call Us |
| 6 |
67-8690-03 |
SUPPORT-COLUMN Price: $81.08 |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
77-3120-01 |
BRACKET-MOUNTING, COLUMN Price: $49.33 |
| 9 |
80-2960 |
SPACER-TOWER Price: $11.13 |
| 10 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 11 |
180775 |
Wheel & Tire Assembly, Front Price: Call Us |
| 11 |
82-8760 |
ELBOW-HYD Price: $59.61 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
63-8970 |
HOSE-HYD Price: $162.31 |
| 13 |
403849 |
Pinion Price: Call Us |
| 13 |
70-1390 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 15 |
404845 |
Pawl, Drive Price: Call Us |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 16 |
68-9730 |
HOSE-STEERING, HYD Price: $116.90 |
| 17 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 17 |
68-9720 |
HOSE-STEERING, HYD Price: $118.16 |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 18 |
82-8770 |
ELBOW-HYD Price: $73.15 |
| 19 |
63-8980 |
HOSE-HYD Price: $160.86 |
| 20 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 21 |
108-6557 |
STEER VALVE AND COLUMN ASM Price: $1,800.82 |
| 22 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 23 |
323-6 |
SCREW-HH Price: $0.66 |
| 24 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 25 |
80-2940-03 |
PLATE-PIVOT Price: $40.35 |
| 26 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 27 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 27 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 28 |
108-6092 |
LEVER-STEERING, TILT This part replaces 93-1353-03. Price: $49.30 |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 29 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 29 |
409149 |
Locknut, Hex Price: Call Us |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
82-8650 |
CLAMP-COLUMN Price: $16.37 |
| 32 |
82-9010 |
DISC-FRICTION Price: $15.53 |
| 33 |
146527 |
V-Belt Price: Call Us |
| 33 |
80-2930 |
WASHER-FLAT Price: $5.00 |
| 34 |
80-2880 |
BRACKET-TILT Price: $18.75 |
| 35 |
32128-20 |
NUT-HF Price: $0.99 |
| 36 |
3218-7 |
NUT-JAM Price: $3.86 |
| 36 |
415226 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
82-8940 |
DECAL-STEERING, TILT Price: $24.33 |
| 38 |
322-4 |
SCREW-HH Price: $0.35 |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
70-1380 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 40 |
137090 |
Spring Price: Call Us |
| 54 |
411062 |
Grassbag Assembly Price: Call Us |
| 56 |
407793X421 |
Hubcap Price: Call Us |
| 57 |
411952 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
416988 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196561 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
416987 |
Pulley, Drive Price: Call Us |
