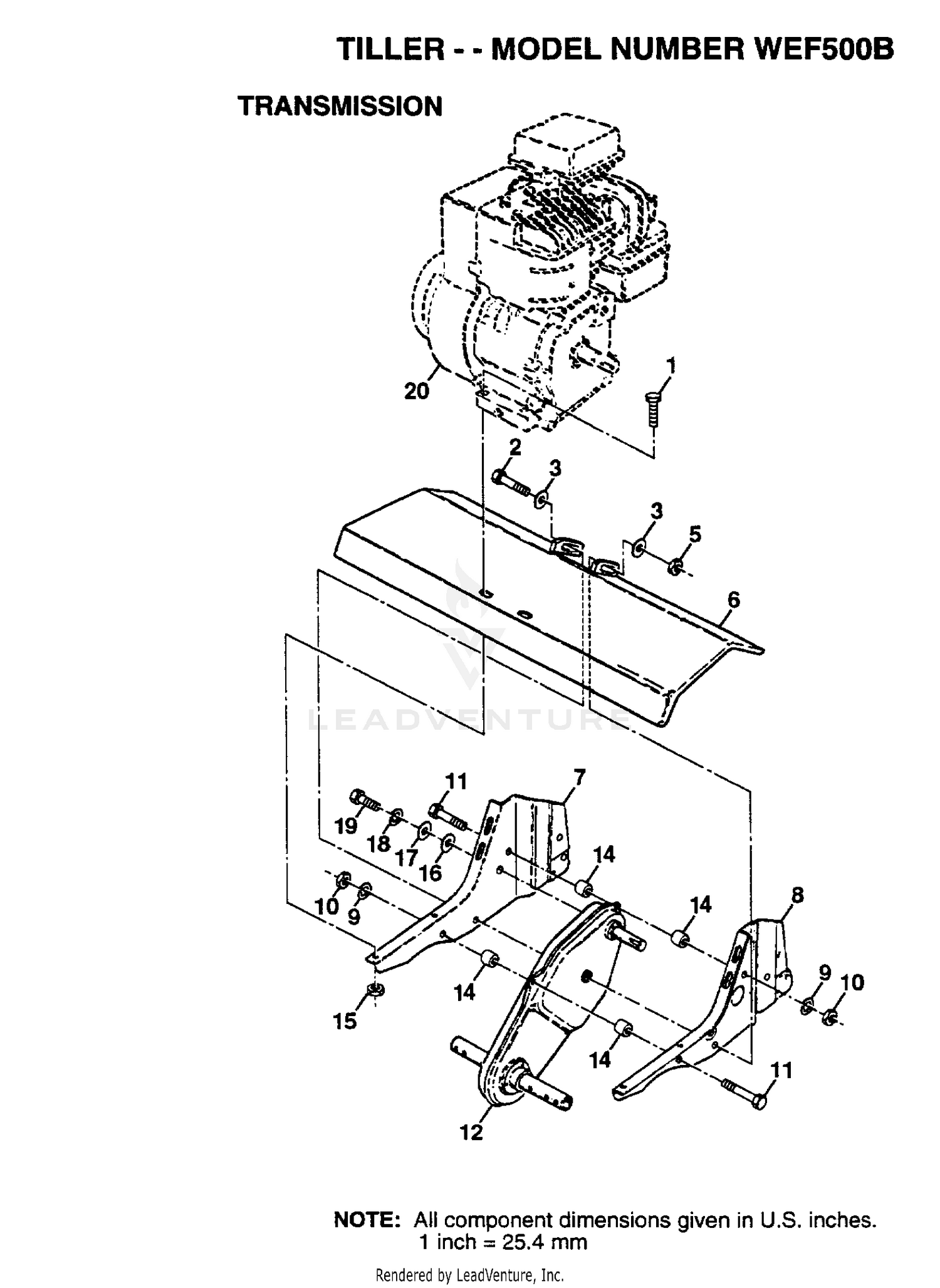

| Ref | Part Number | Description |
|---|
| 1 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 1 |
98-7708 |
NUT Price: $7.76 |
| 2 |
74780652 |
BOLT HEX 3/8-16 Price: Call Us |
| 2 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 3 |
19131311 |
WASHER Price: Call Us |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 5 |
73800600 |
NUT Price: Call Us |
| 5 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 6 |
9056R550 |
SHIELD.PNT.TINE Price: Call Us |
| 6 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 7 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 7 |
1949J500 |
SUB= 9181949J500 Price: Call Us |
| 8 |
110519X500 |
SUB= 110519X Price: Call Us |
| 8 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 9 |
10040500 |
LOCKWASHER Price: Call Us |
| 9 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 10 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 10 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 11 |
74760544 |
SUB= 74780544 Price: Call Us |
| 11 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 12 |
126669X |
SUB= 532126669 Price: Call Us |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
9173R |
SPLIT SPACER RT Price: Call Us |
| 14 |
98-7730 |
NUT Price: $1.31 |
| 15 |
73510500 |
NUT Price: Call Us |
| 15 |
98-7731 |
BOLT Price: $3.94 |
| 16 |
19091412 |
WASHER Price: Call Us |
| 16 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 17 |
19092016 |
WASHER Price: Call Us |
| 17 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 18 |
10040400 |
LOCKWASHER Price: Call Us |
| 18 |
98-7732 |
NUT Price: $1.45 |
| 19 |
110-3799 |
REGULATOR ASM This part replaces 98-7733. Price: $426.99 |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 22 |
98-7729 |
BOLT Price: $2.35 |
| 23 |
98-7720 |
COVER-END Price: $39.58 |
| 24 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 25 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 26 |
98-7724 |
BRUSH Price: $12.41 |
