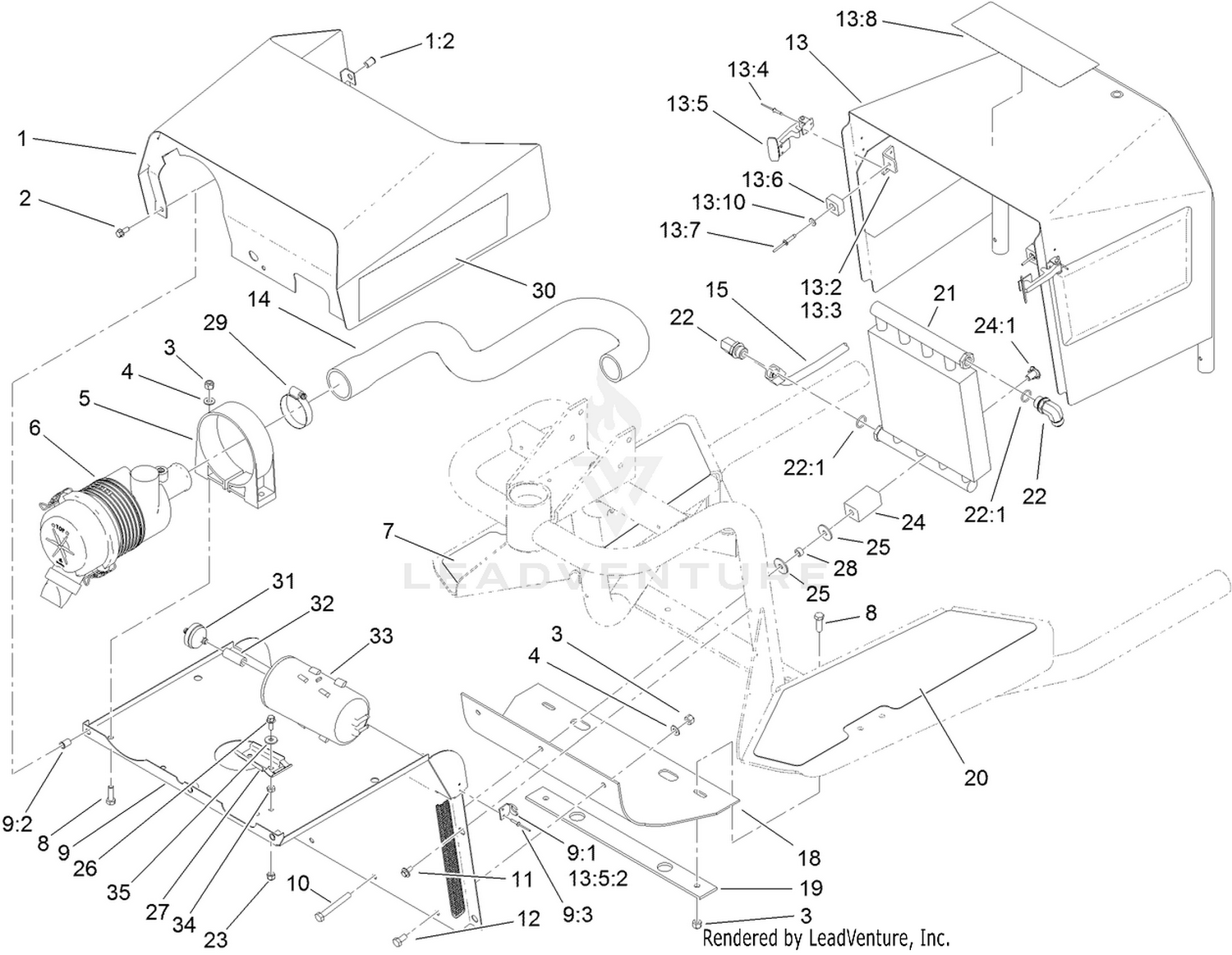

| Ref | Part Number | Description |
|---|
| 1 |
99-1644 |
DASH SHROUD ASM Price: $365.54 |
| 2 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 6 |
95-5805 |
AIR CLEANER ASM Price: $140.44 |
| 7 |
92-7158 |
TREAD-FLOOR, RH Price: $26.24 |
| 8 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 |
95-5817 |
FRONT SHIELD ASM Price: $354.47 |
| 10 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 11 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
767148 |
FILTER CONVERSION KIT This part replaces 95-0610. Price: $112.49 |
| 14 |
119-9033 |
HOSE-INTAKE, AIR Price: $59.35 |
| 15 |
114-0679 |
TUBE-HYD Price: $73.35 |
| 18 |
95-5826 |
SHIELD-RUBBER Price: $40.16 |
| 19 |
95-0620-01 |
STRIP-RETAINER Price: $12.71 |
| 20 |
92-7159 |
TREAD-FLOOR, LH Price: $26.24 |
| 21 |
92-8997 |
COOLER-OIL Price: $512.86 |
| 22 |
AU218-5106 |
FITTING-ELB 90 This part replaces 353-371. Price: $10.29 |
| 23 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 24 |
85-9550 |
RUBBER CLAMP ASM Price: $5.56 |
| 25 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 26 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 27 |
114-0292 |
BRACKET-CANISTER, CARBON Price: $7.79 |
| 28 |
85-9120 |
SPACER-PIVOT, TILT Price: $4.01 |
| 29 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 30 |
106-8101 |
DECAL Price: $53.64 |
| 31 |
115-7854 |
FILTER-FUEL, INLINE Price: $6.69 |
| 32 |
106-5317 |
HOSE-FUEL Price: $3.52 |
| 33 |
127-8685 |
CANISTER-CARBON This part replaces 115-2251. Price: $46.53 |
| 34 |
3218-1 |
NUT-JAM Price: $1.29 |
