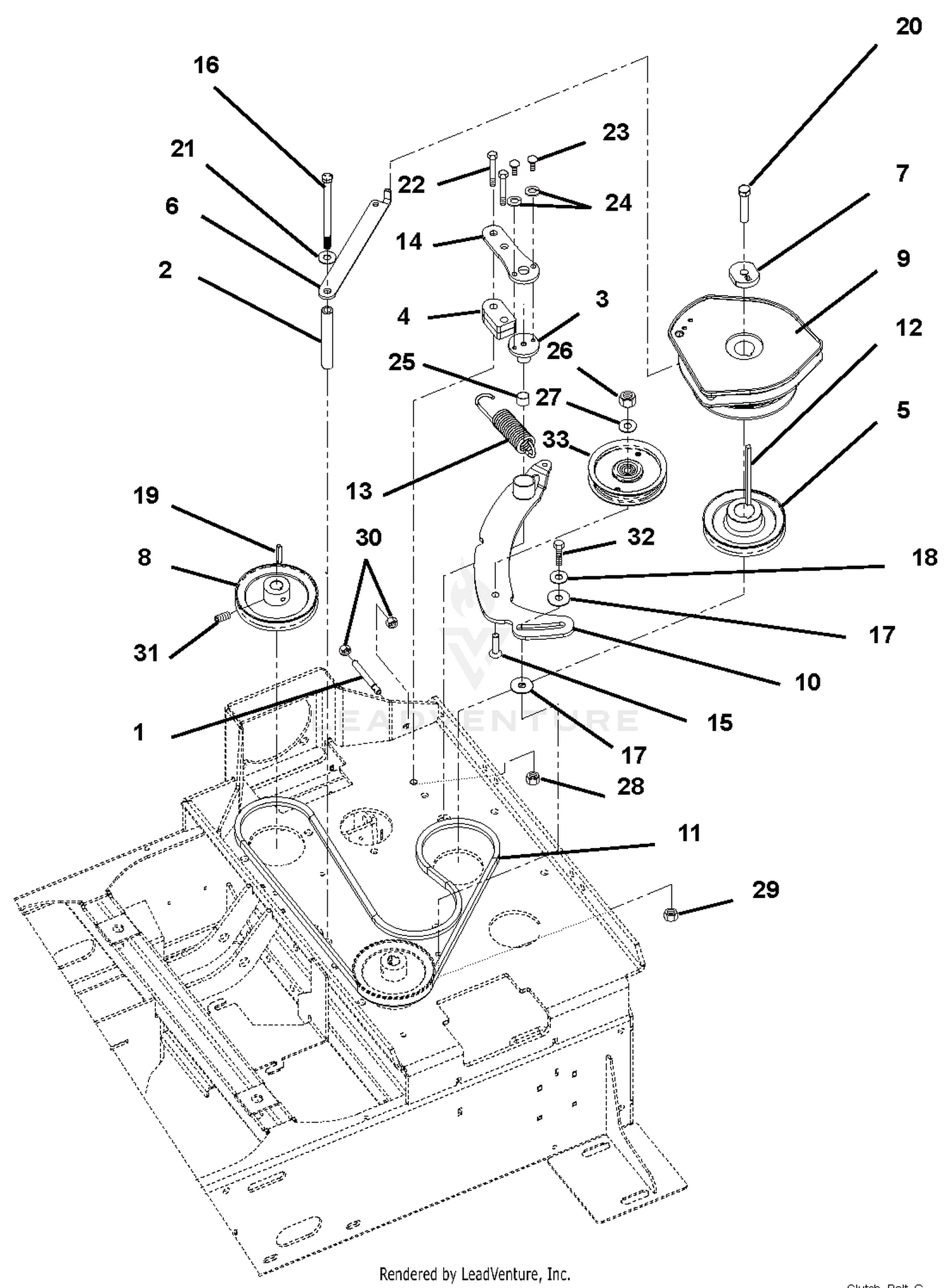

| Ref | Part Number | Description |
|---|
| 1 |
00104024 |
ROD, THREADED ADJUSTMENT Price: $19.45 |
| 2 |
03821751 |
TUBE, RD .625 X .120 X 4.50 Price: $44.95 |
| 3 |
03791600 |
PIN, TENSIONER PIVOT Price: $62.45 |
| 4 |
03791351 |
PLATE, SPACER - PUMP TESIONER Price: $20.45 |
| 5 |
00180641 |
PULLEY, V-BELT 5.00X1.13 W/KEYWAY Price: $81.95 |
| 6 |
03821651 |
PLATE, CLUTCH STOP Price: $40.95 |
| 7 |
03821851 |
WASHER, CLUTCH UNIVERSAL Price: $25.95 |
| 8 |
00180836 |
PULLEY, V-BELT 4.78X17MM W/KEY Price: $50.95 |
| 9 |
00180923 |
CLUTCH, ELECT-OGURA, GT3.5 Price: $423.95 |
| 10 |
03791151 |
WLDT, Z PUMP BELT IDLER ARM Price: $101.95 |
| 12 |
00180962 |
KEY, .250 X .250 X 4.62 SQ Price: $6.95 |
| 13 |
00180999 |
SPRING, EXT 1.19X.162X4.25 Y Price: $29.95 |
| 14 |
03791251 |
PLATE, PUMP TENSIONER TOP Price: $20.45 |
| 15 |
05901332 |
BOLT, 3/8-16X1.50 FLAT SOC Y Price: $5.45 |
| 17 |
00180961 |
WASHER, .400X1.27X.062 NYLON Price: $1.95 |
| 18 |
06400902 |
WASHER, .406X1.00X.060 FLAT Y Price: $3.95 |
| 19 |
00966053 |
KEY, M5 X M5 X M36 RD Price: $3.45 |
| 20 |
05900040 |
BLT-HEX .44-20X2.25 G5 YZ EP80 Price: $6.45 |
| 21 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 22 |
05901718 |
BLT,HEX .38-16X2.00 G5 ZCC This part replaces 00960050. Price: $2.95 |
| 23 |
05901705 |
BLT-HEX .25-20X.50 G5 ZCC This part replaces 05947900. Price: $0.45 |
| 24 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 25 |
00105546 |
BRG, SLV .753X.878X.750 Price: $6.45 |
| 26 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 27 |
00164038 |
WASHER, .390X.750X.080 FLAT Y Price: $3.45 |
| 28 |
06508000 |
NUT-LK-FLG .375-16 PL Price: $3.95 |
| 29 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 30 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 31 |
00967343 |
SET SCREW, 5/16-18X.625 SQ CUP Price: $1.45 |
| 32 |
07070114 |
BLT-SHLDR .38X.50X.31-18 SLT Y This part replaces 05901331. Price: $5.45 |
