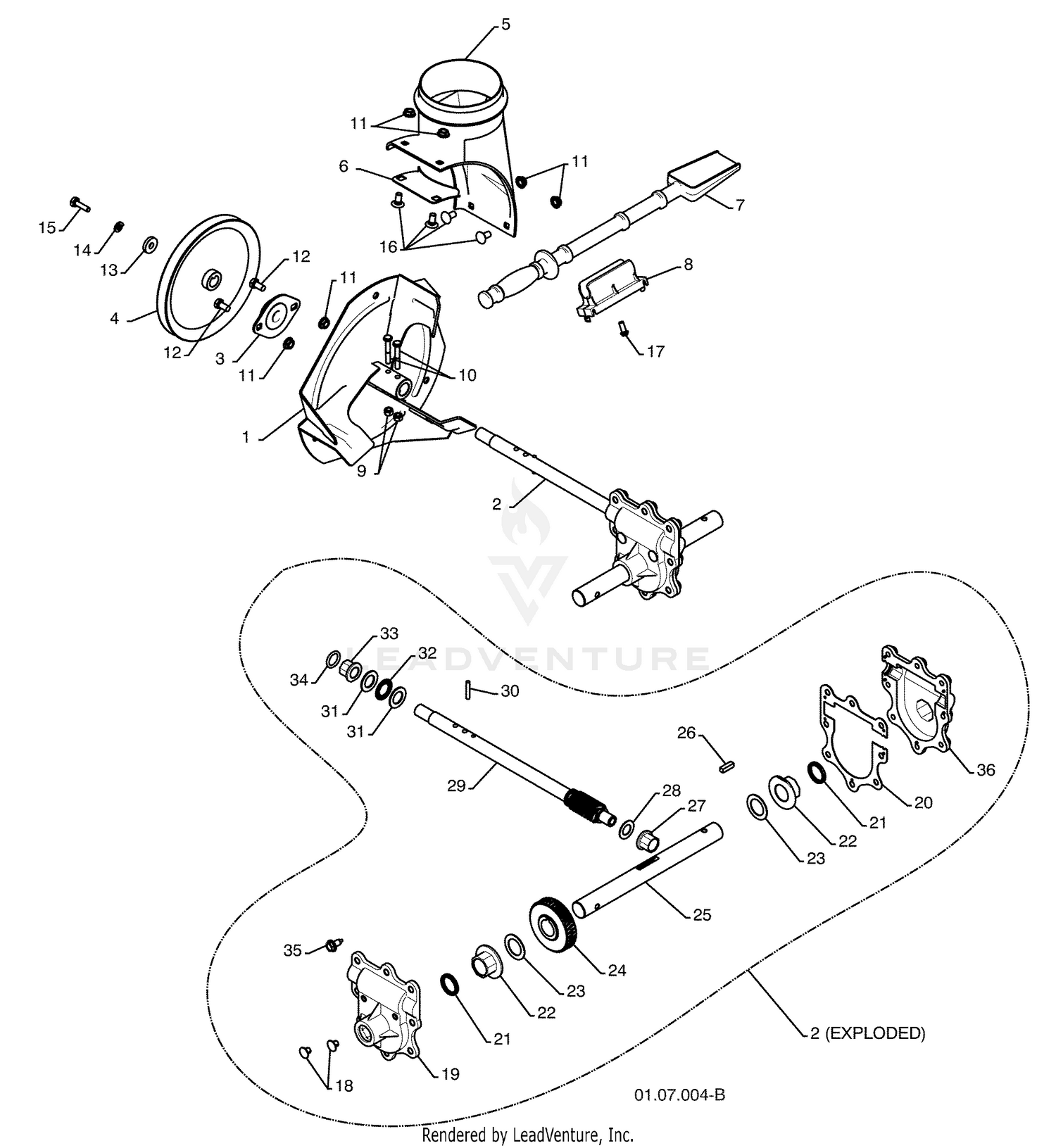

| Ref | Part Number | Description |
|---|
| 1 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 1 |
74-9080 |
DISCONTINUED Price: Call Us |
| 2 |
598831601 |
Service Kit This part replaces 532196710. Price: $199.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 5 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 6 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 6 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 8 |
323-5 |
SCREW-HH This part replaces 323-33. Price: $0.41 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
130-2486 |
MOUNT This part replaces 53-9681. Price: $36.47 |
| 9 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 10 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 10 |
74-5470-03 |
MOUNT-ENGINE, LH Price: $44.48 |
| 11 |
33115-100 |
SCREW-HH This part replaces 48-7840. Price: $1.57 |
| 11 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 12 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 12 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 13 |
32128-37 |
NUT-HF Price: $3.63 |
| 13 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 14 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 14 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 15 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
874940516 |
CAPSCREW.HX.HD.5/16-18X1.00.NY Price: $3.99 |
| 16 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 18 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 19 |
33114-030 |
SCREW-HH This part replaces 48-7730. Price: $0.50 |
| 19 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 20 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 21 |
76-4120-03 |
MOUNT-ENGINE, RH Price: $79.57 |
| 22 |
48-7810 |
SCREW Price: $7.98 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 23 |
48-7570 |
SCREW-HH Price: $8.48 |
| 23 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 24 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 24 |
84-0760-03 |
ADAPTER-PUMP Price: $876.02 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 25 |
93-5398 |
SCREW-HH Price: $3.22 |
| 26 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 28 |
74-3650 |
FAN Price: $269.64 |
| 29 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 29 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 30 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 30 |
76-4220-03 |
MOUNT-ENGINE, LH Price: $127.64 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 32 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 32 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 33 |
84-1440-03 |
DISCONTINUED Price: Call Us |
| 34 |
33113-012 |
SCREW-HH This part replaces 48-7610. Price: $0.71 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
| 35 |
77-3600 |
SHIELD-ADAPTER Price: $24.35 |
| 36 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 37 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 38 |
76-4310-03 |
SUPPORT-BASE, BATTERY Price: $22.33 |
| 39 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 40 |
14-0949 |
BATTERY BASE WA *B Price: $97.58 |
| 41 |
323-4 |
SCREW-HH Price: $1.02 |
| 42 |
100-3794 |
DISCONTINUED Price: Call Us |
| 43 |
94-5615 |
BRACKET-HOSE, RETURN Price: $58.90 |
| 44 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
