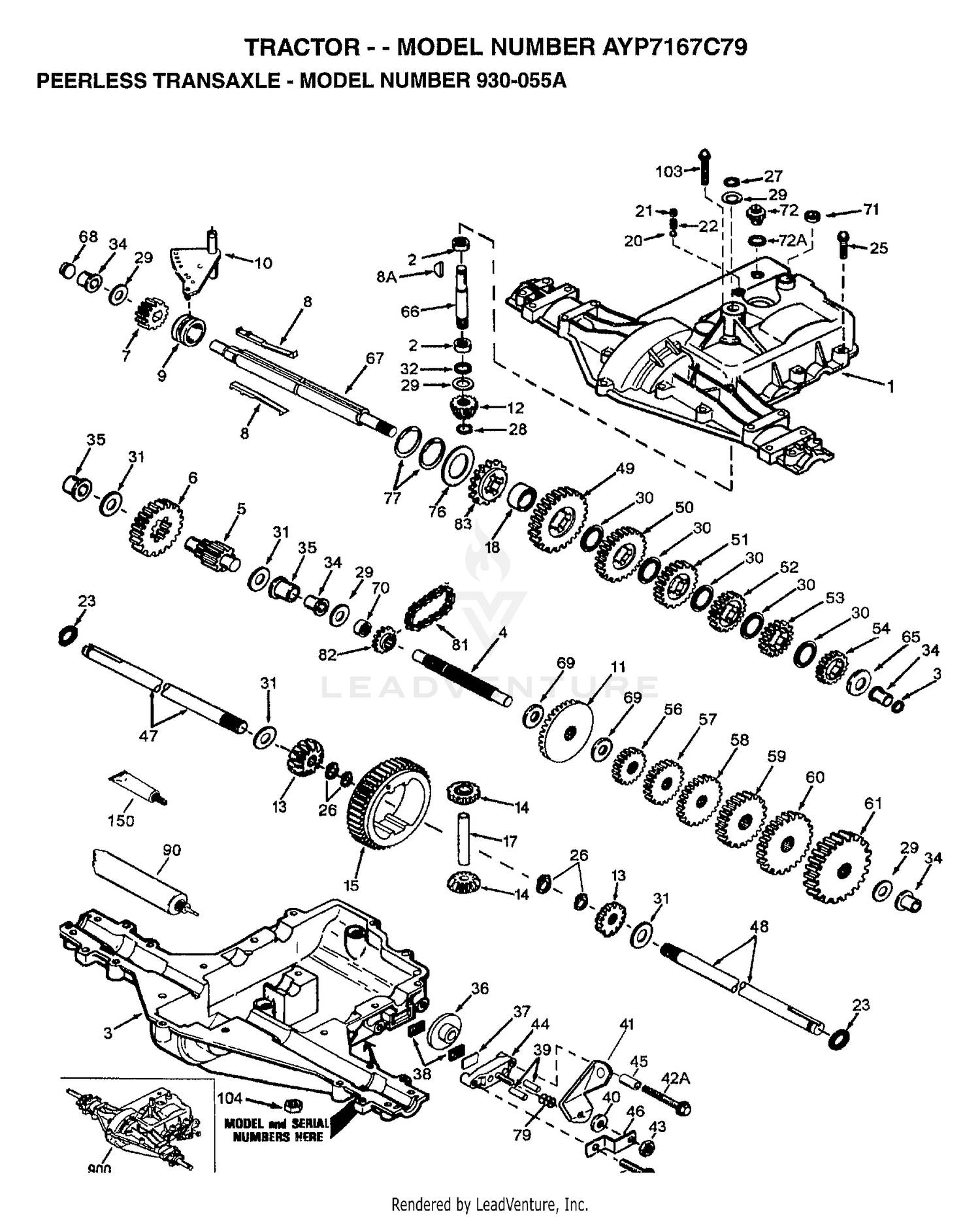

| Ref | Part Number | Description |
|---|
| 1 |
114-5052 |
HOUSING ASM This part replaces 75-0020. Price: $2,587.20 |
| 1 |
772108A |
TRANSAXLE COVER Price: Call Us |
| 2 |
75-0030 |
GASKET-HOUSING Price: $20.85 |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 3 |
75-0040 |
SECTION-CENTER Price: $2,817.90 |
| 3 |
770102A |
TRANSAXLE CASE Price: Call Us |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 4 |
83-4780 |
HOUSING-PUMP, CHARGE Price: $714.23 |
| 5 |
75-0060 |
PLUG Price: $22.19 |
| 5 |
776219B |
OUTPUT SHAFT AND PINION Price: Call Us |
| 6 |
104-2189 |
PLUG-THREAD, STRAIGHT This part replaces 75-0070. Price: $24.99 |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 7 |
86-7520 |
RH TRUNNION COVER ASM Price: $486.26 |
| 8 |
75-0090 |
CAPSCREW-HH Price: $2.16 |
| 8 |
792136A |
SHIFT KEY Price: Call Us |
| 8A |
792047 |
KEY, WOODRUFF Price: Call Us |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 9 |
86-7530 |
LH TRUNNION COVER ASM Price: $465.32 |
| 10 |
75-0110 |
CAPSCREW-HH Price: $2.14 |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 11 |
75-0120 |
CAPSCREW-HH Price: $7.11 |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 12 |
75-0130 |
DISCONTINUED Price: Call Us |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
110-6342 |
SPRING This part replaces 75-0140. Price: $9.45 |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
75-0150 |
GUIDE-SEAL Price: $270.30 |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 15 |
75-0160 |
PLUG-PIPE Price: $4.39 |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 16 |
75-0170 |
PLUG-THREAD, STRAIGHT Price: $18.20 |
| 17 |
75-0180 |
CAPSCREW-HH Price: $19.18 |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 18 |
75-0190 |
PLUG-SPECIAL Price: $124.62 |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 19 |
67-9090 |
PLUG This part replaces 75-0200. Price: $41.68 |
| 20 |
75-0210 |
O-RING Price: $7.35 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
75-0220 |
PIN Price: $77.53 |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 22 |
75-0230 |
SEAL-LIP Price: $80.68 |
| 22 |
792079 |
SPRING Price: Call Us |
| 23 |
75-0240 |
O-RING Price: $2.36 |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 24 |
75-0250 |
DISCONTINUED Price: Call Us |
| 25 |
75-0260 |
VALVE-RELIEF Price: $97.16 |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 26 |
75-0270 |
SPRING Price: $9.79 |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 27 |
75-0280 |
SPRING Price: $7.03 |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
75-0290 |
DISCONTINUED Price: Call Us |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
75-0310 |
SHIM Price: $131.21 |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
75-0320 |
NIPPLE Price: $89.72 |
| 31 |
780001 |
WASHER Price: Call Us |
| 32 |
75-0330 |
SEAL-LIP Price: $31.04 |
| 33 |
75-0340 |
BEARING-NEEDLE Price: $86.35 |
| 33 |
788095 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
75-0350 |
PIN Price: $8.75 |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
75-0360 |
GEROTOR Price: $430.63 |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 36 |
75-0370 |
O-RING Price: $10.08 |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 37 |
75-0380 |
PLATE-VALVE Price: $518.86 |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
75-0390 |
DISCONTINUED Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
75-0410 |
O-RING Price: $5.70 |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790079 |
BRAKE LEVER Price: Call Us |
| 41 |
86-7540 |
SHAFT-PUMP Price: $910.85 |
| 42 |
75-0430 |
RING-RETAINING Price: $23.82 |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
75-0440 |
SHAFT-MOTOR Price: $550.98 |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
75-0450 |
COLLAR Price: $44.00 |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 45 |
786066 |
SPACER Price: Call Us |
| 46 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 47 |
774690 |
AXLE Price: Call Us |
| 47 |
94-3975 |
PIN This part replaces 75-0480. Price: $5.80 |
| 48 |
774691 |
AXLE Price: Call Us |
| 49 |
75-0500 |
BEARING-NEEDLE Price: $83.78 |
| 49 |
778215 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
75-0510 |
PIN Price: $8.40 |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
75-0520 |
BEARING-BALL Price: $88.98 |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
75-6930 |
VALVE-SCREW Price: $97.36 |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
32120-74 |
RING-SNAP Price: $0.54 |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 55 |
93-0097 |
VALVE-SCREW Price: $235.37 |
| 56 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 57 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 58 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 59 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 60 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 61 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
776135 |
SHAFT, INPUT Price: Call Us |
| 67 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 68 |
786116A |
PLUG Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 103 |
792166 |
SCREW Price: Call Us |
| 104 |
792167 |
LOCKNUT Price: Call Us |
| 150 |
510334 |
GASKET ELIMINATOR Price: Call Us |
