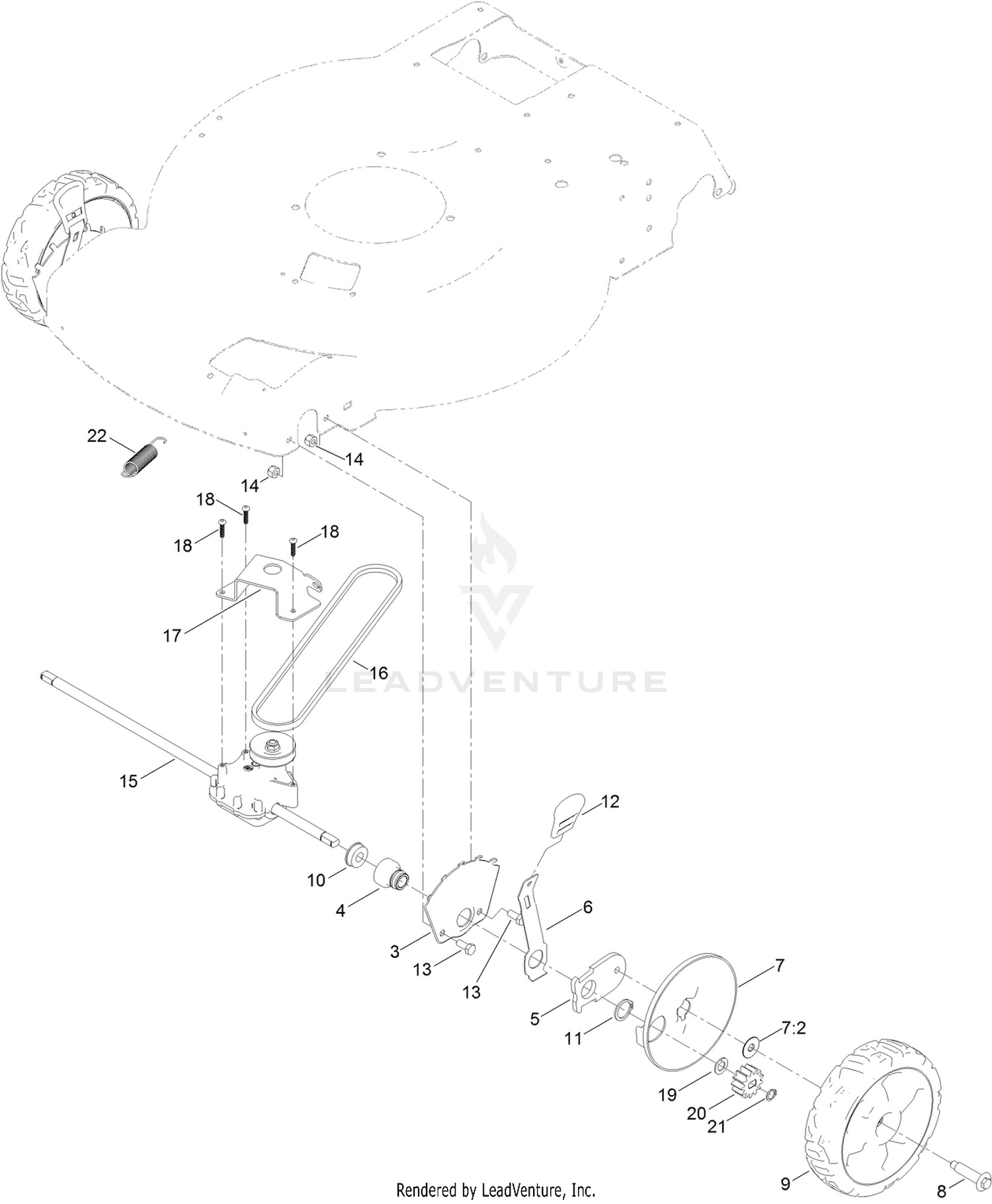

Front Wheel and HOC Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 115-1956-03 | PLATE-HOC, FRONT Price: $9.99 |
| 4 | 131-0836 | RETAINER-BEARING, HOC Price: $13.99 |
| 5 | 137-9128 | ARM-PIVOT, FRONT Price: $6.79 |
| 6 | 105-1809 | ARM-SPRING Price: $10.99 |
| 7 | 131-4513 | WHEEL COVER ASM Price: $9.99 |
| 8 | 614650 | BOLT-SHOULDER Price: $3.99 |
| 9 | 130-6711 | WHEEL ASM, 8IN Price: $27.99 |
| 10 | 104-8699 | BEARING-BALL Price: $4.39 |
| 11 | 32151-36 | RING-RETAINING Price: $1.73 |
| 12 | 110-0549 | KNOB-HOC Price: $0.99 |
| 13 | 137-3052 | SCREW-HH Price: $0.39 |
| 14 | 119-4038 | NUT-HEX Price: $0.31 |
| 15 | 137-4823 | TRANSMISSION Price: $105.99 |
| 16 | 71-9450 | V-BELT Price: $21.99 |
| 17 | 114-7978-03 | BRACKET-TRANSMISSION Price: $10.99 |
| 18 | 120-9676 | SCREW-PLASTITE Price: Call Us |
| 19 | 110-7191 | WASHER-THRUST Price: $1.79 |
| 20 | 131-0896 | GEAR-PINION, 13T Price: $6.49 |
| 21 | 32151-61 | RING-RETAINING Price: $2.39 |
