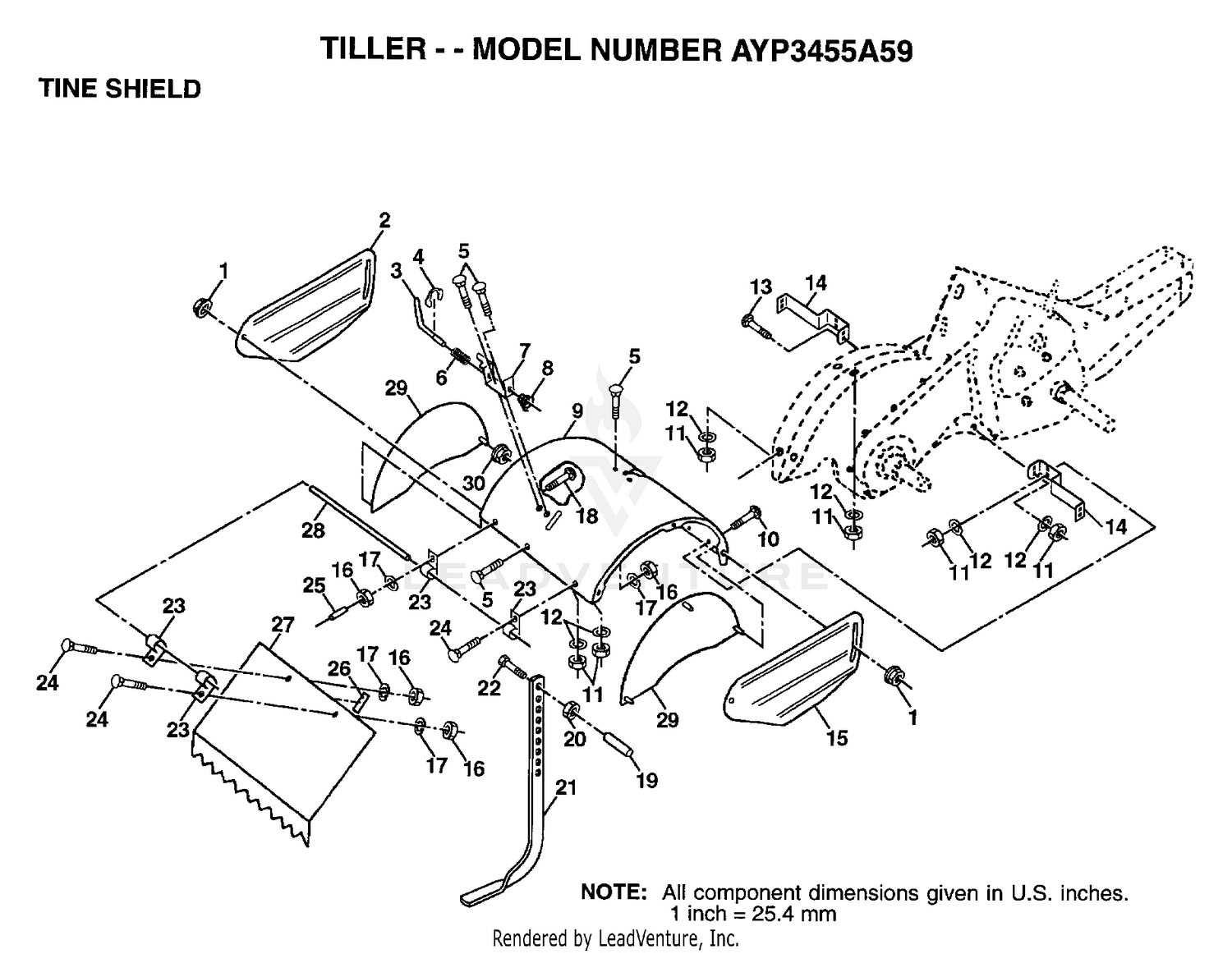

TINE SHIELD
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-3840 | SHAFT-AXLE, LH Price: $885.27 |
| 1 | 100-3841 | SHAFT-AXLE, RH Price: $728.15 |
| 1 | 98000129 | NUT Price: Call Us |
| 2 | 100-3847 | RETAINER-BEARING Price: $86.16 |
| 2 | 104086X505 | SHIELD.SD.OUT.LH Price: Call Us |
| 3 | 100-3842 | SEAL-OIL Price: $23.39 |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 21-8180 | BEARING ASM Price: $65.11 |
| 5 | 100-3845 | SEAL-GREASE Price: $7.52 |
| 5 | 72140506 | BOLT Price: Call Us |
| 6 | 100-3848 | O-RING Price: $4.69 |
| 6 | 8394J | SPRING TI Price: Call Us |
| 7 | 100-3849 | CAP-BEARING Price: $433.26 |
| 7 | 8393J | STAKE PIN TI Price: Call Us |
| 8 | 100-3850 | ZERK-SPECIAL Price: $2.24 |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 9 | 106-9205 | STUD-WHEEL Price: $7.80 |
| 9 | 124289X505 | TINE SHIELD Price: Call Us |
| 10 | 106-9209-03 | DRUM-BRAKE Price: $254.79 |
| 10 | 72140508 | BOLT Price: Call Us |
| 11 | 139-2564 | NUT-LUG This part replaces 242-50. Price: $0.99 |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 13 | 72110510 | BOLT Price: Call Us |
| 15 | 104101X505 | SHIELD.SD.OUT.RH Price: Call Us |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 18 | 72040410 | BOLT Price: Call Us |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 21 | 102156X500 | STAKE DEPTH 16 Price: Call Us |
| 22 | 74930632 | BOLT Price: Call Us |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 24 | 72140404 | BOLT Price: Call Us |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 27 | 102695X505 | LEVELING SHIELD Price: Call Us |
| 28 | 120588X | PIN HINGE Price: Call Us |
| 29 | 124309X505 | SIDE SHIELD Price: Call Us |
