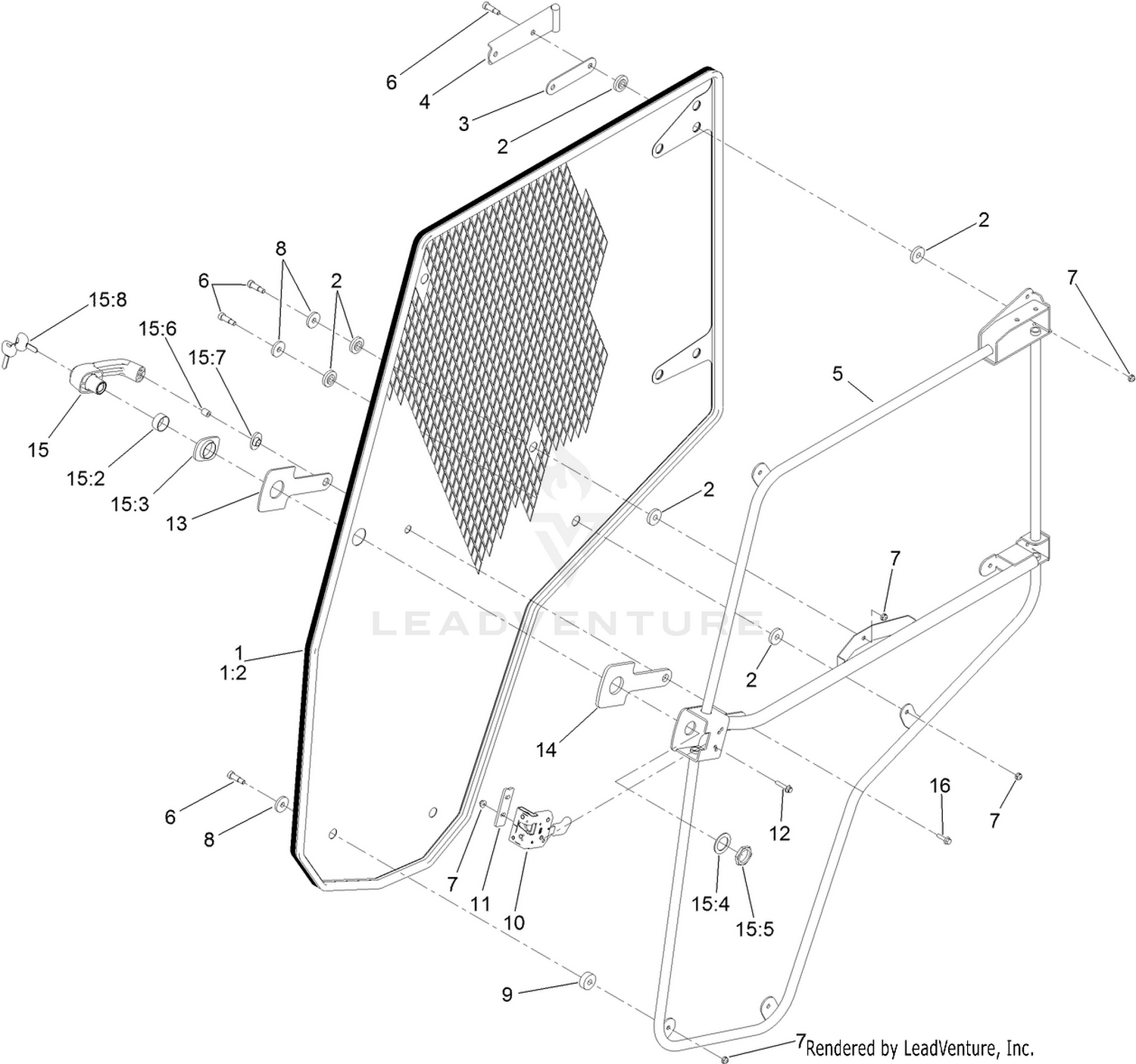

RH Door Cage Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-0902 | RH SCREEN DOOR ASM Price: $580.32 |
| 2 | 125-9982 | BUSHING-FLANGE Price: $1.76 |
| 3 | 132-3722-03 | SPACER Price: $9.30 |
| 4 | 125-9618-03 | HINGE-DOOR, RH Price: $37.15 |
| 5 | 132-3732-03 | FRAME-CAGE, RH DOOR Price: $540.29 |
| 6 | 125-9520 | SCREW-SHOULDER, HSH Price: $1.83 |
| 7 | 104-7201 | NUT-HF Price: $0.69 |
| 8 | 130-5815 | WASHER-BACKUP Price: $3.60 |
| 9 | 125-9537 | BUSHING-FLANGE Price: $2.58 |
| 10 | 121-8390 | LATCH-RH Price: $63.03 |
| 11 | 121-8395 | PLATE-SUPPORT, LATCH Price: $5.43 |
| 12 | 3234-21 | SCREW-HHF Price: $2.19 |
| 13 | 130-6172-03 | SPACER Price: $24.63 |
| 14 | 121-8331 | GASKET-HANDLE Price: $15.02 |
| 15 | 121-8630 | HANDLE ASM Price: $121.56 |
