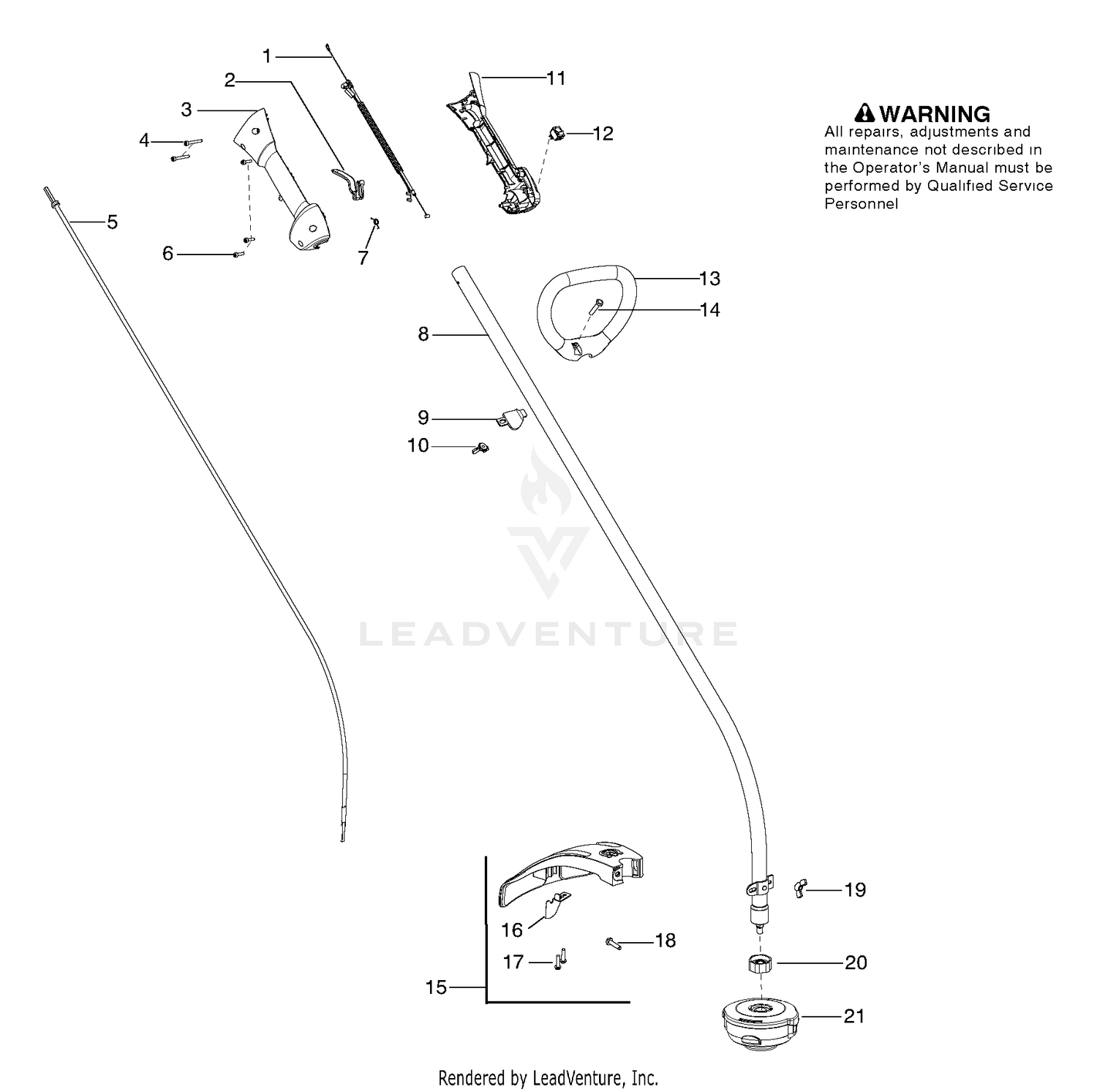

| Ref | Part Number | Description |
|---|
| 1 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS This part replaces 530150561. Price: $19.99 |
| 2 |
545066001 |
TRIGGER THROTTLE Price: $5.99 |
| 2 |
93-5137 |
LEVER-TRACTION Price: $126.70 |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 3 |
545062002 |
HOUSING-THROTTLE (RH) Price: $9.99 |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 4 |
530016448 |
SCREW Price: $2.99 |
| 5 |
530096314 |
FLEXSHAFT Price: $17.99 |
| 5 |
93-5173-03 |
TUBE-CONTROL This part replaces 93-5173. Price: $56.18 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 7 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 7 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 8 |
545031001 |
KIT DRIVESHAFT Price: $39.99 |
| 8 |
93-5486 |
DISCONTINUED Price: Call Us |
| 9 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 9 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 10 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 10 |
93-5488 |
POST - HUB Price: $51.49 |
| 11 |
545067001 |
HSG THROTTLE LH Price: $9.99 |
| 11 |
93-5175-03 |
DISCONTINUED This part replaces 93-5175. Price: Call Us |
| 12 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 12 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 13 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 13 |
530150076 |
HANDLE ASSIST Price: $9.99 |
| 14 |
33104-050 |
SCREW-HHF Price: $1.70 |
| 14 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 15 |
93-5347 |
ABRASIVE-PEDAL Price: $12.38 |
| 16 |
530052287 |
CUTTER Price: $3.99 |
| 16 |
93-5368 |
ABRASIVE-PEDAL Price: $9.23 |
| 17 |
530015814 |
SCREW Price: $0.17 |
| 17 |
93-5133-01 |
PEDAL-TRACTION This part replaces 93-5133. Price: $132.14 |
| 18 |
3217-6 |
NUT-HEX Price: $1.19 |
| 18 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 19 |
33113-016 |
SCREW-HH Price: $0.34 |
| 19 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 20 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 20 |
545017403 |
DUST CUP Price: $5.99 |
| 21 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 21 |
537338311 |
TRIMMER HEAD T25 This part replaces 537338303. Price: $27.99 |
| 22 |
93-5129-03 |
BRACKET-PEDAL ASM This part replaces 93-5129. Price: $99.35 |
| 23 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
33003-00 |
NUT-HF Price: $0.25 |
