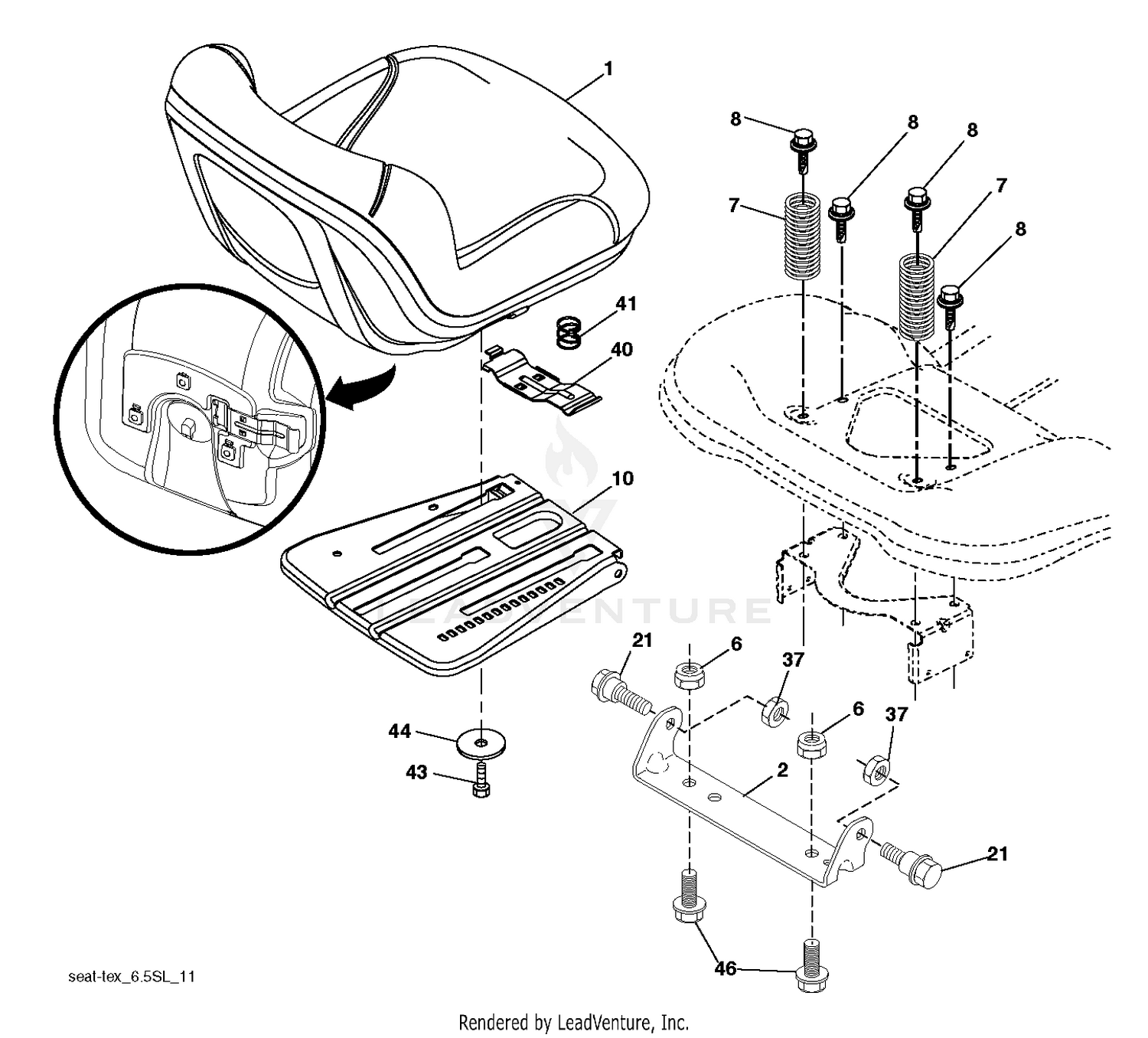

| Ref | Part Number | Description |
|---|
| 1 |
33108-025 |
Screw-HHF Price: Call Us |
| 1 |
583544801 |
SEAT.TH110.HUSQ.TEX.GREY This part replaces 532439709. Price: $129.99 |
| 2 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
3290-271 |
RIVET-POP Price: $0.25 |
| 4 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 5 |
93-4215 |
DISCONTINUED Price: Call Us |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
92-7424 |
HOSE-OVERFLOW, RADIATOR Price: $17.86 |
| 7 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK Price: $5.99 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 9 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
92-7374 |
SHROUD-FAN, RH Price: $98.41 |
| 11 |
93-7584 |
HOSE-INTAKE Price: $92.76 |
| 12 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 13 |
93-7553 |
SEAL-HOOD Price: $41.30 |
| 14 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 15 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 15 |
94-2646 |
FAN GUARD WA *B Price: $362.62 |
| 15 |
94-4577 |
DECAL - WARNING, FAN, JAP Price: $22.92 |
| 16 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 17 |
304-46 |
DRAINCOCK Price: $7.55 |
| 18 |
92-7463 |
DISCONTINUED Price: Call Us |
| 19 |
92-7516-03 |
BRACKET-SUPPORT, COOLER BASE This part replaces 92-7516. Price: $46.80 |
| 20 |
74-3410 |
RADIATOR ASM Price: $2,099.35 |
| 21 |
114-3995 |
OIL COOLER ASM This part replaces 82-3740. Price: $1,388.56 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $2.99 |
| 22 |
92-7631 |
SEAL-SCREEN Price: $33.08 |
| 23 |
94-2638 |
NUT-FLAT Price: $0.54 |
| 24 |
92-7505-03 |
SCREEN ASM This part replaces 92-7505. Price: $1,733.53 |
| 25 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 26 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 27 |
93-4208 |
SEAL-SCREEN, STRIP Price: $68.49 |
| 28 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 29 |
92-7535 |
HOSE ASM Price: $197.33 |
| 31 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 32 |
237-65 |
O-RING Price: $2.50 |
| 33 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 34 |
69-3020 |
LATCH-CAMLOC Price: $43.54 |
| 35 |
3269-4 |
RIVET-POP Price: $1.19 |
| 36 |
92-7623-03 |
DISCONTINUED This part replaces 92-7623. Price: Call Us |
| 36 |
94-3084-01 |
BUMPER ASM-SHORT This part replaces 94-3084. Price: $689.22 |
| 37 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 38 |
2410-42 |
CAP-END Price: $11.62 |
| 39 |
92-7493 |
DISCONTINUED Price: Call Us |
| 40 |
325-5 |
SCREW-HH Price: $1.20 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 41 |
92-7558 |
DISCONTINUED Price: Call Us |
| 42 |
92-7416-03 |
STRAP-RADIATOR This part replaces 92-7416. Price: $32.23 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
| 44 |
92-7375 |
DISCONTINUED Price: Call Us |
| 45 |
92-7388-03 |
SUPPORT-RADIATOR ASM This part replaces 92-7388. Price: $365.32 |
| 46 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 46 |
588090401 |
BOLT.3/8-16X1;1.25OD.WSHR.SEMS Price: $5.99 |
| 47 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 48 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 49 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 50 |
94-2646 |
FAN GUARD WA *B Price: $362.62 |
| 51 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 52 |
2412-96 |
CLAMP-R Price: $3.46 |
| 53 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 54 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 55 |
322-9 |
SCREW-HH Price: $3.09 |
| 56 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 57 |
76-8750 |
PLATE-WARNING Price: $9.67 |
