| Ref | Part Number | Description |
|---|
| 1 |
544082301 |
INLET PIPE ASSY Price: $37.99 |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 1 |
MA-A529X02171 |

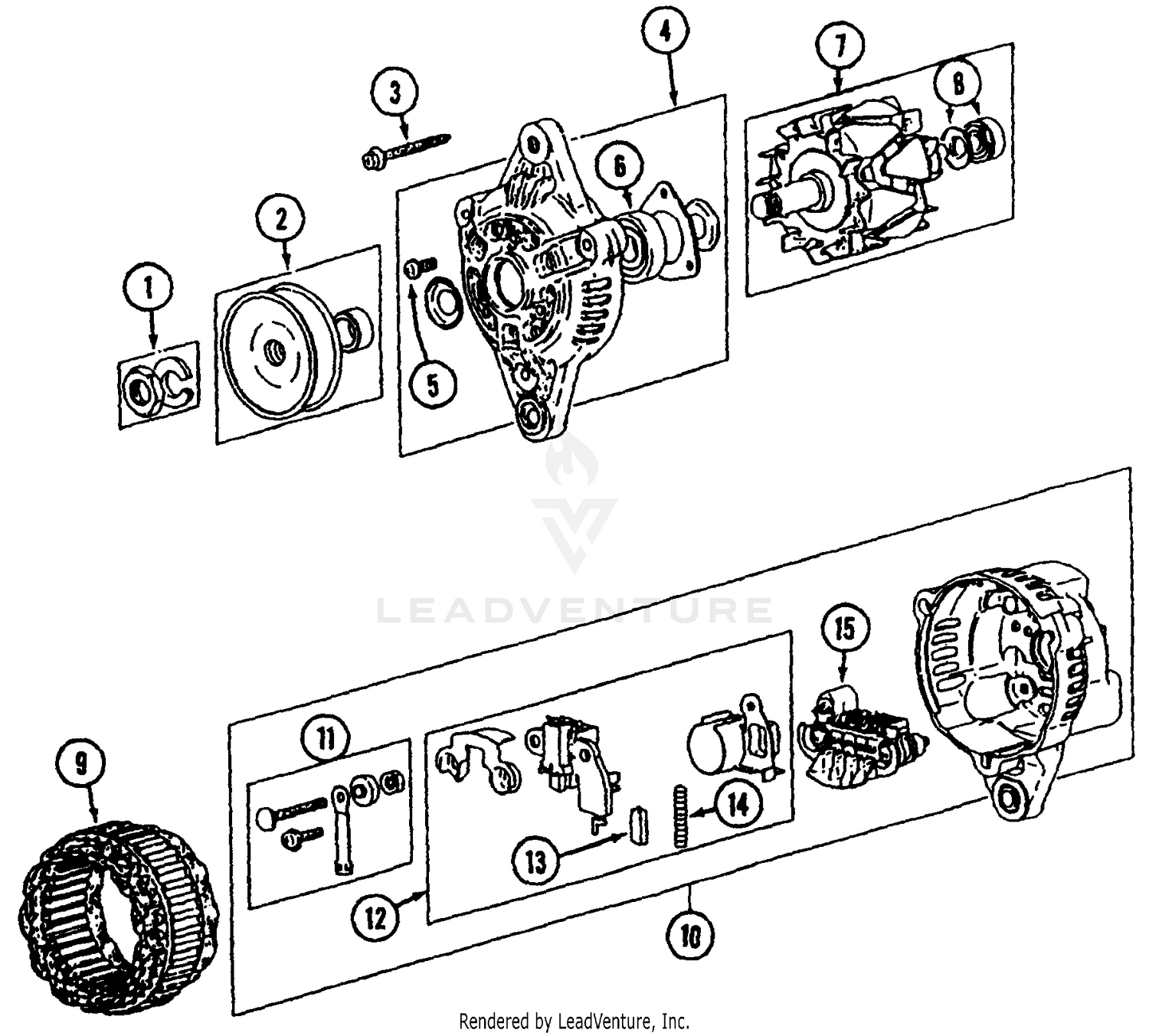

NUT SET-ALTERNATOR Not Available Price: |
| 2 |
503200216 |
SCREW Price: $3.99 |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 2 |
MA-A628T54270 |
PULLEY ASSEMBLY-ALTERN Not Available Price: |
| 3 |
32128-25 |
NUT-HF Price: $3.19 |
| 3 |
544083801 |
INTERMEDIATE WALL Price: $5.99 |
| 3 |
MA-A414X18271 |
BOLT SET-ALTERNATO Not Available Price: |
| 4 |
544084001 |
FLANGE Price: $3.99 |
| 4 |
98-9342 |
DECAL-SOLENOID, INFORMATION Price: $69.36 |
| 4 |
MA-A640T34970 |
HOUSING AS Not Available Price: |
| 5 |
503210725 |
SCREW Price: $3.99 |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 5 |
MA-A414X18371 |
SCREW-SET Not Available Price: |
| 6 |
544084101 |
FLANGE Price: $3.99 |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 6 |
MA-S930P61770 |
BEARING, FRONT Not Available Price: |
| 7 |
544148201 |
THROTTLE Price: $27.99 |
| 7 |
92-5524 |
DISCONTINUED Price: Call Us |
| 7 |
MA-A880T38970 |
ROTOR ASSEMBLY-ALTERNAT Not Available Price: |
| 8 |
505453601 |
CARBURETOR KIT (CARB & HOSE) This part replaces 544147801. Price: $119.99 |
| 8 |
63-9920 |
DISCONTINUED Price: Call Us |
| 8 |
MA-S930P17901 |
BEARING-REAR Not Available This part replaces MA-S930P17970. Price: |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
505514701 |
FILTER HOLDER ASSY This part replaces 544080501. Price: $11.99 |
| 9 |
MA-A383T31370 |
ALTERNATOR STATOR Not Available Price: |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 10 |
501981401 |
Price: Call Us |
| 10 |
MA-A641T74470 |
HOUSING ASSEMBLY-REAR Not Available Price: |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 11 |
544231401 |
SHACKLE Price: $11.99 |
| 11 |
MA-A450X12571 |
TERMINAL S Not Available Price: |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 12 |
MA-A866X12571 |
REGULATOR ASSEMBLY-ALT Not Available Price: |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
MA-A648C02981 |
BRUSH-ALTERNATOR Not Available This part replaces MA-A648D02570. Price: |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 14 |
MA-A389C01101 |
SPRING-BRUSH Not Available Price: |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
544359902 |
CONTROL Price: $7.99 |
| 16 |
503210750 |
SCREW Price: $2.99 |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 18 |
502080701 |
Price: Call Us |
| 18 |
93-8060 |
DECAL-REELS Price: $53.80 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 19 |
502081001 |
SHAFT ASSY Price: $14.99 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
502081101 |
SPRING Price: $3.99 |
| 21 |
502080801 |
COLLAR Price: $4.99 |
| 21 |
98-9303 |
CABLE-THROTTLE Price: $21.41 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
502081201 |
VALVE Price: $6.99 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
503481801 |
SCREW Price: $2.99 |
| 24 |
537385201 |
CLIP Price: $2.99 |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 25 |
502080901 |
ROD Price: $11.99 |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
