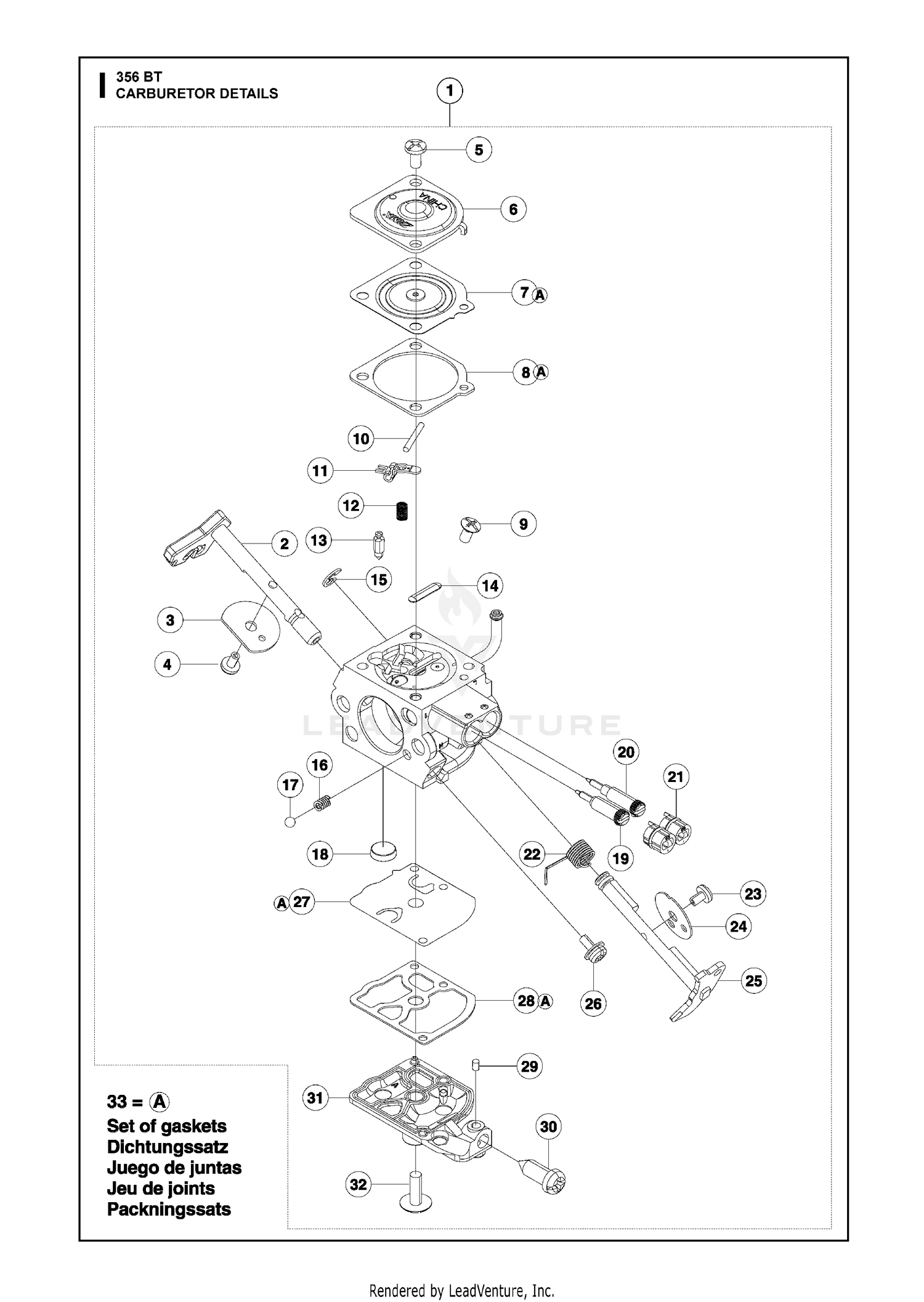

CARBURETOR DETAILS
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 579462701 | CARBURETOR C1Q-EL52 Price: $84.99 |
| 2 | 537390201 | SHAFT Price: $19.99 |
| 3 | 537370301 | CHOKE CAP Price: $6.99 |
| 4 | 503481801 | SCREW Price: $2.99 |
| 5 | 503480501 | SCREW Price: $2.99 |
| 6 | 503974301 | COVER Price: $5.99 |
| 7 | 504113501 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 503480301 | GASKET METERING SIDE Price: $4.99 |
| 9 | 503480101 | SCREW Price: $2.99 |
| 11 | 503665901 | LEVER Price: $3.99 |
| 12 | 537273401 | SPRING This part replaces 537020301. Price: $4.99 |
| 13 | 503479701 | INLET NEEDLE Price: $8.99 |
| 14 | 503535601 | PLUG Price: $3.99 |
| 15 | 537385201 | CLIP Price: $2.99 |
| 16 | 537012601 | SPRING Price: $2.99 |
| 17 | 537012501 | BALL Price: $2.99 |
| 18 | 503535701 | STRAINER Price: $3.99 |
| 21 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 22 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 23 | 503479201 | SCREW Price: $2.99 |
| 24 | 537390101 | THROTTLE FLAP Price: $6.70 |
| 25 | 537390001 | SHAFT Price: $19.99 |
| 26 | 503755301 | SCREW * Price: $2.99 |
| 27 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 28 | 537020101 | GASKET Price: $3.99 |
| 29 | 503481101 | PLUG Price: $3.99 |
| 30 | 537020701 | SCREW Price: $6.99 |
| 31 | 537020201 | COVER Price: $19.99 |
| 32 | 503479601 | SCREW Price: $2.99 |
| 33 | 537243601 | GASKET SET Price: $14.99 |
