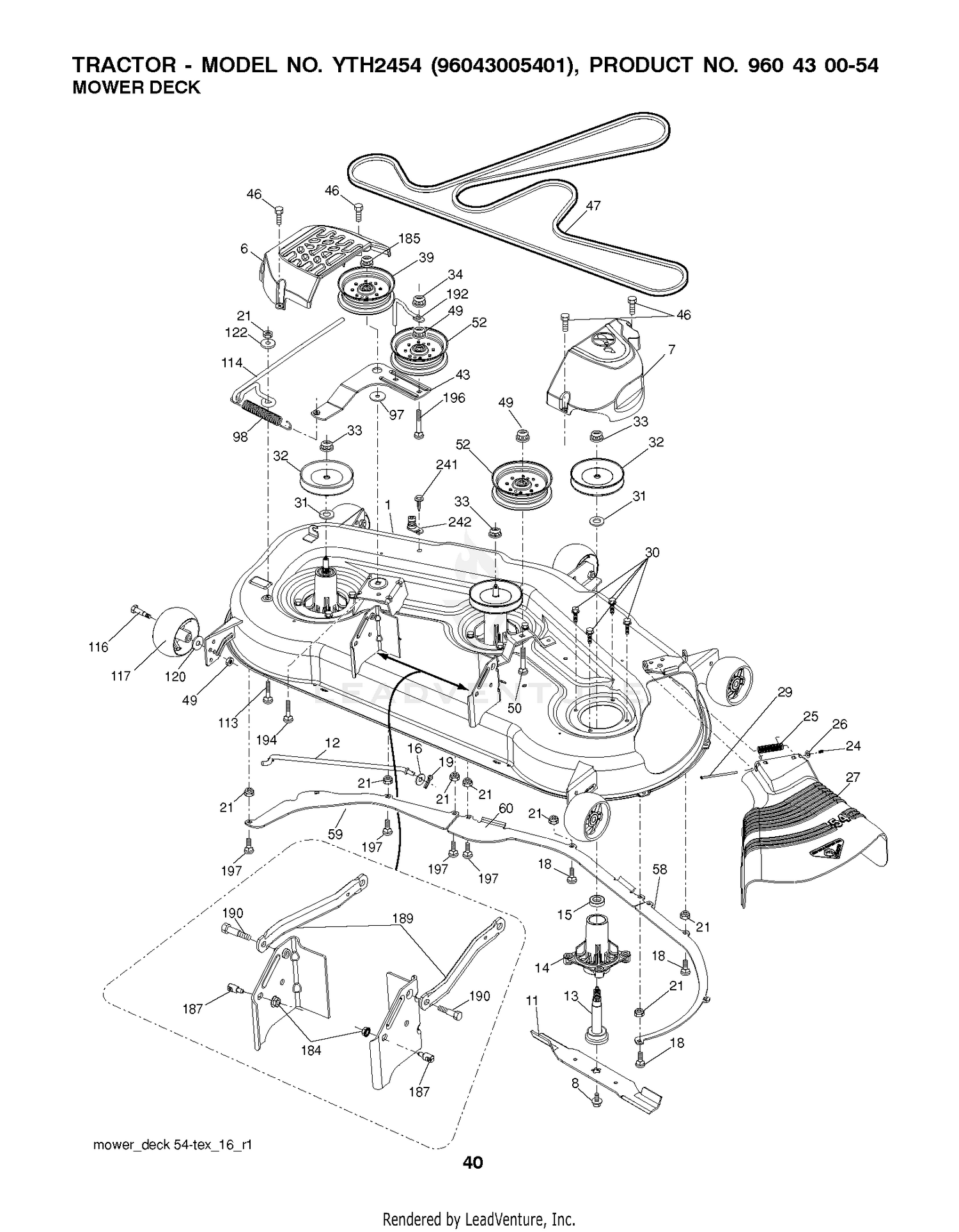

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532199298 |
DECK.SVC.54".5GWB.GREY This part replaces 532403125. Price: $449.99 |
| 2 |
115-2927 |
PIN ASM Price: $122.73 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
115-8991 |
TONGUE-HITCH Price: $1,784.06 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
138-5902 |
HYDRAULIC CYLINDER ASM This part replaces 115-8933. Price: $1,441.66 |
| 10 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 11 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 12 |
115-8934 |
PIN ASM Price: $74.80 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 13 |
323-7 |
SCREW-HH Price: $0.65 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
327-23 |
SCREW-HH Price: $3.60 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
104-2024 |
NUT-HEX, NI Price: $14.64 |
| 21 |
112-4953 |
WASHER-PLAIN Price: $6.02 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
115-9010-01 |
BRACKET ASM Price: $146.60 |
| 23 |
325-8 |
SCREW-HH Price: $3.52 |
| 24 |
107-3395 |
WASHER-HARDENED Price: $1.49 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
117-8325-01 |
STAND ASM Price: $92.04 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 27 |
99-5610 |
PIN Price: $40.16 |
| 28 |
3274-1 |
SCREW-HSH Price: $5.52 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $54.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 184 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X This part replaces 872140716. Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
