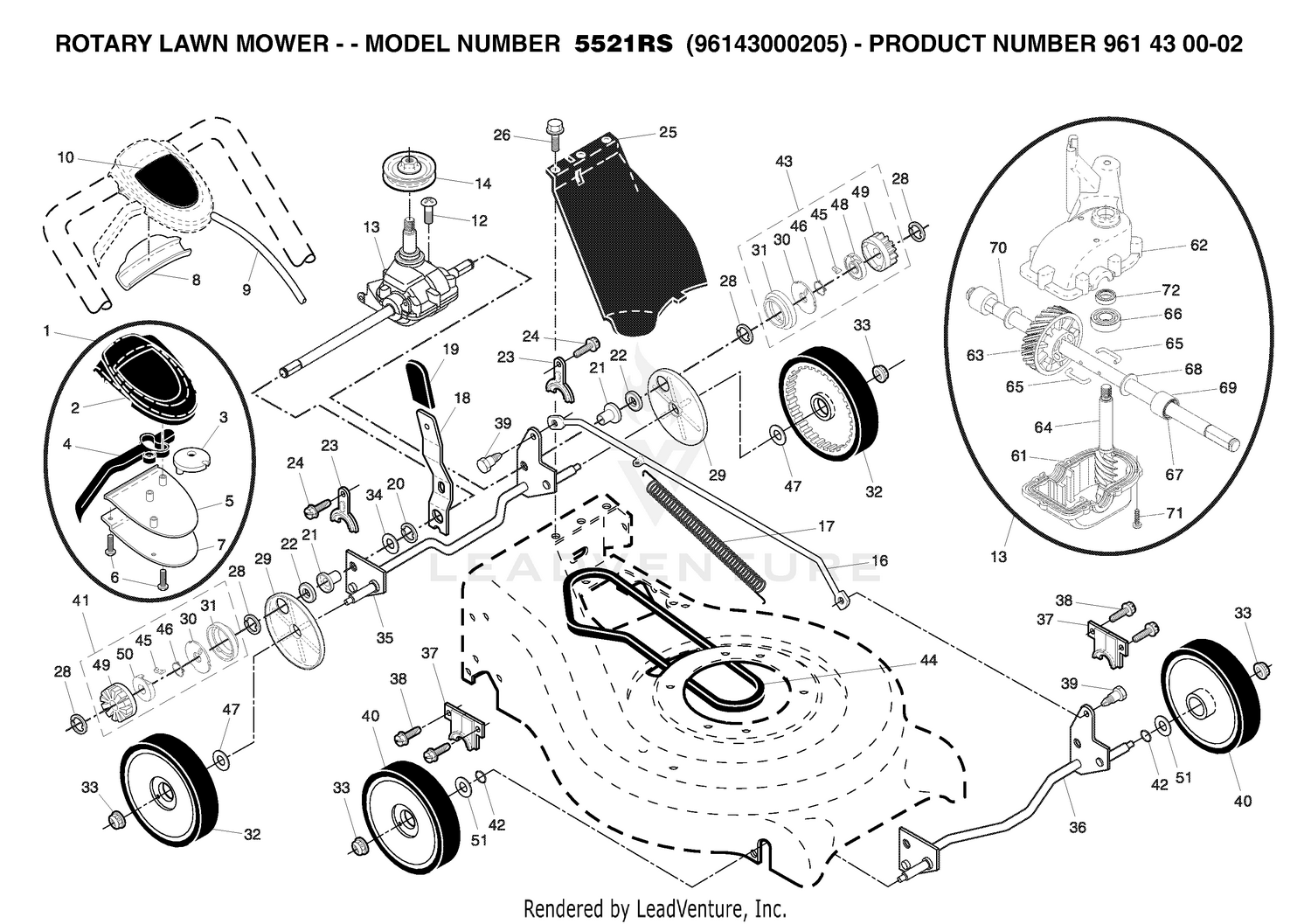

| Ref | Part Number | Description |
|---|
| 1 |
532196755 |
CONTROL.DR.AW.GRY.RWGD.BLACK Price: $59.99 |
| 2 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195761. Price: $29.99 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 9 |
532196784 |
DRIVE CONTROL CABLE Price: $44.99 |
| 10 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
| 12 |
532187653 |
SCREW Price: $4.99 |
| 13 |
532414282 |
KIT.TRANSMISION.REPLACE.180868 This part replaces 532188645. Price: $109.99 |
| 14 |
532193443 |
PULLEY.1.PIECE Price: $13.99 |
| 16 |
532407147 |
ROD.CONNECTING.SPT.BLACK Price: $22.99 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532404942. Price: $5.99 |
| 18 |
532418835 |
SPRING.SELECTOR.SPT.21.BZP This part replaces 532196162. Price: $5.99 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532190622. Price: $2.99 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 25 |
532400783 |
COVER.DRIVE.21.RWGD.MO Price: $9.99 |
| 26 |
532750634 |
SCREW Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 30 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 31 |
532184172 |
SEAL.PINION Price: $5.99 |
| 32 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 35 |
532403102 |
SHAFT.ASM.REAR.TORQUE.BZP.8 This part replaces 532410922. Price: $29.99 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. This part replaces 532410933. Price: $22.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 41 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 42 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 43 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 44 |
532183688 |
BELT.DRIVE.EZ.WALK.HI-VAC Price: $13.99 |
| 45 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 46 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 48 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 49 |
532175103 |
GEAR, PINION Price: $10.99 |
| 50 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 51 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 61 |
532187530 |
CASE, LOWER Price: $10.99 |
| 62 |
532187531 |
CASE, UPPER Price: $22.99 |
| 63 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 64 |
532187533 |
SHAFT INPUT Price: $24.99 |
| 65 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 66 |
532183506 |
BEARING Price: $5.99 |
| 67 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 68 |
532183509 |
WASHER Price: $3.99 |
| 69 |
532183511 |
BUSHING Price: $4.99 |
| 71 |
532183513 |
SCREW Price: $3.99 |
| 72 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
