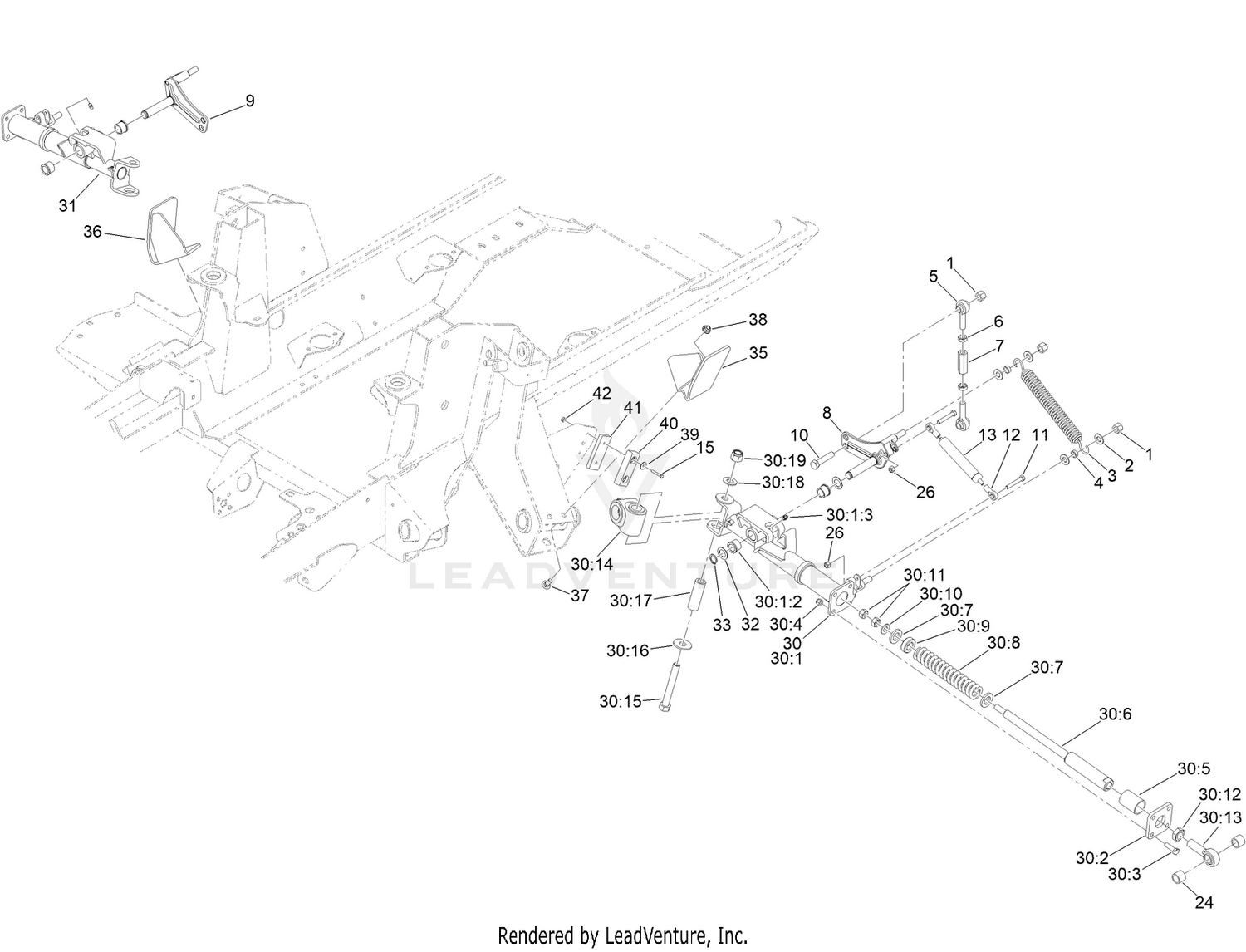

| Ref | Part Number | Description |
|---|
| 1 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
104-7520 |
SPRING-DAMPER Price: $49.77 |
| 4 |
104-7521 |
BUSHING Price: $3.43 |
| 5 |
105-2808 |
END-ROD Price: $88.58 |
| 6 |
3220-5 |
NUT-JAM Price: $0.65 |
| 7 |
105-2809 |
TUBE-LINK Price: $77.02 |
| 8 |
114-2717 |
CRANK-BELL, LH Price: $170.50 |
| 9 |
114-2716 |
CRANK-BELL, RH Price: $170.50 |
| 10 |
325-9 |
SCREW-HH Price: $1.87 |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
104-8331 |
END-ROD, SPHERICAL Price: $46.75 |
| 13 |
105-3249 |
DAMPER Price: $176.72 |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 24 |
136-0077 |
SPACER Price: $13.72 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
140-6485 |
LH REAR ARM STRUT ASM Price: $591.72 |
| 31 |
140-6486 |
RH REAR ARM STRUT ASM Price: $591.72 |
| 32 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 33 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 35 |
120-8856-03 |
BRACKET-ROLLER, LH Price: $57.85 |
| 36 |
120-8874-03 |
BRACKET-ROLLER, RH Price: $54.83 |
| 37 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
3256-61 |
WASHER-FLAT Price: $1.79 |
| 40 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 41 |
119-8308 |
PLATE Price: $25.33 |
