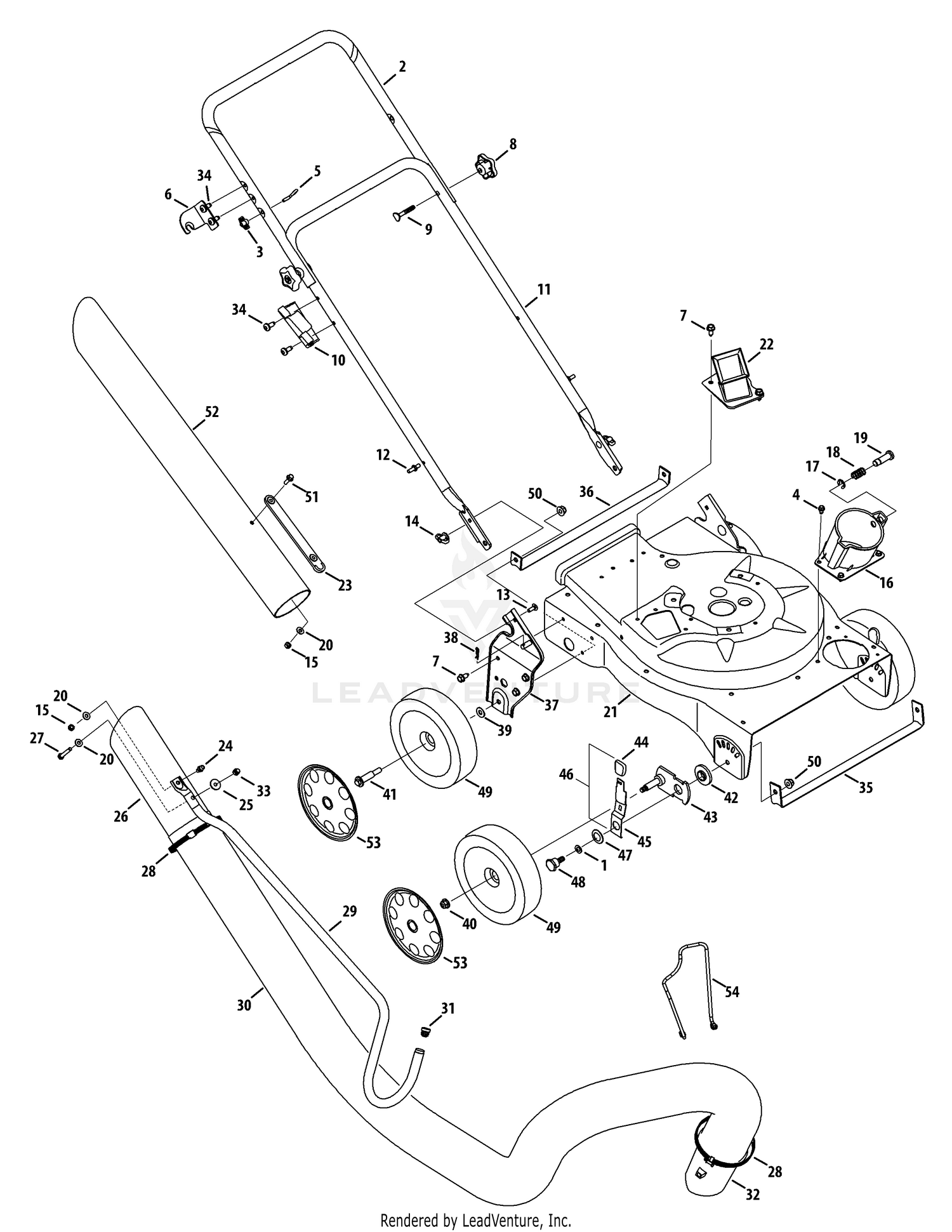

| Ref | Part Number | Description |
|---|
| 1 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 2 |
749-04172-0637 |
Upper Handle Price: $34.43 |
| 3 |
720-0279 |
Knob Price: $3.93 |
| 4 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 5 |
710-1205 |
Eye Bolt Price: $3.53 |
| 6 |
781-1056-0637 |
Upper Handle Bracket Price: $21.30 |
| 7 |
710-0726 |
Hex Cap Screw 5/16-12 x.750 Price: $3.82 |
| 8 |
720-04072A |
Star Knob Price: $6.07 |
| 9 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 10 |
731-04911 |
Nozzle Handle Clip Price: $10.05 |
| 11 |
749-04165-0637 |
Lower Handle Price: $38.11 |
| 12 |
711-1293 |
Studs Price: $4.21 |
| 13 |
710-0703 |
Carriage Screw 1/4-20 x.75 Price: $3.66 |
| 14 |
712-0397A |
Wing Nut 1/4-20 Price: $3.71 |
| 15 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 912-0291. Price: $3.93 |
| 17 |
916-0104 |
E Ring.500 Dia Price: $3.37 |
| 18 |
932-3035 |
Compression Spring Price: $9.73 |
| 19 |
711-1571 |
Clevis Pin Price: $7.58 |
| 20 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 936-3020. Price: $5.94 |
| 21 |
781-04223-0638 |
Upper Flail Housing Price: $176.28 |
| 22 |
681-04088-0638 |
Chipper Chute Assembly Price: $66.42 |
| 23 |
723-04008A |
Chute Strap Price: $8.86 |
| 24 |
911-04069 |
Pin Price: $7.81 |
| 25 |
748-0457 |
Spacer Price: $4.74 |
| 26 |
731-2478A |
HOSE NOZZLE 3.875 This part replaces 731-2478. Price: $68.17 |
| 27 |
710-3288 |
Hex Cap Screw 1/4-20 x 2.625 Price: $5.94 |
| 28 |
723-0295 |
Adjustment Clamp Price: $9.43 |
| 29 |
749-1270A |
Nozzle Handle Price: $61.84 |
| 30 |
764-0648A |
Vacuum Hose Price: $144.99 |
| 31 |
720-0369 |
Handle Plug Price: $12.19 |
| 32 |
731-2292 |
Hose Adapter, Briggs Price: $35.59 |
| 33 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 34 |
710-1611B |
TT Screw, 5/16-18 x .750 Price: $5.94 |
| 35 |
781-04082-0637 |
Front Wheel Support Brace Price: $25.01 |
| 36 |
781-04081-0637 |
Rear Wheel Support Brace Price: $24.01 |
| 37 |
981-0155A-0638 |
Handle Brkt Ass’y LH Not Available Price: |
| 37 |
981-0156A-0638 |
Handle Bracket Ass’y RH Price: $37.02 |
| 38 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 39 |
736-0105 |
Bell Washer.401 ID x.870 OD Price: $3.96 |
| 40 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 41 |
738-04523 |
SHOULDER SCREW .496X1.605 3/8-16 Price: $9.29 |
| 42 |
741-04242 |
Height Adjustment Bearing Price: $6.57 |
| 43 |
681-04195 |
Pivot Arm Assembly Price: $13.05 |
| 44 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 45 |
732-1026 |
Spring Lever Price: $5.77 |
| 47 |
736-0741 |
Bell Washer.760 ID x.25 OD Price: $3.99 |
| 48 |
738-1172 |
Shoulder Screw,.750 x.500 Price: $5.01 |
| 49 |
634-05036 |
Wheel, 8 x 2 Price: $29.71 |
| 50 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 51 |
710-04666 |
Screw, 1/4-20 x .75 Price: $6.04 |
| 52 |
731-06445 |
Hose Extension Price: $35.34 |
| 53 |
731-07198 |
Hubcap, 8" Price: $6.28 |
