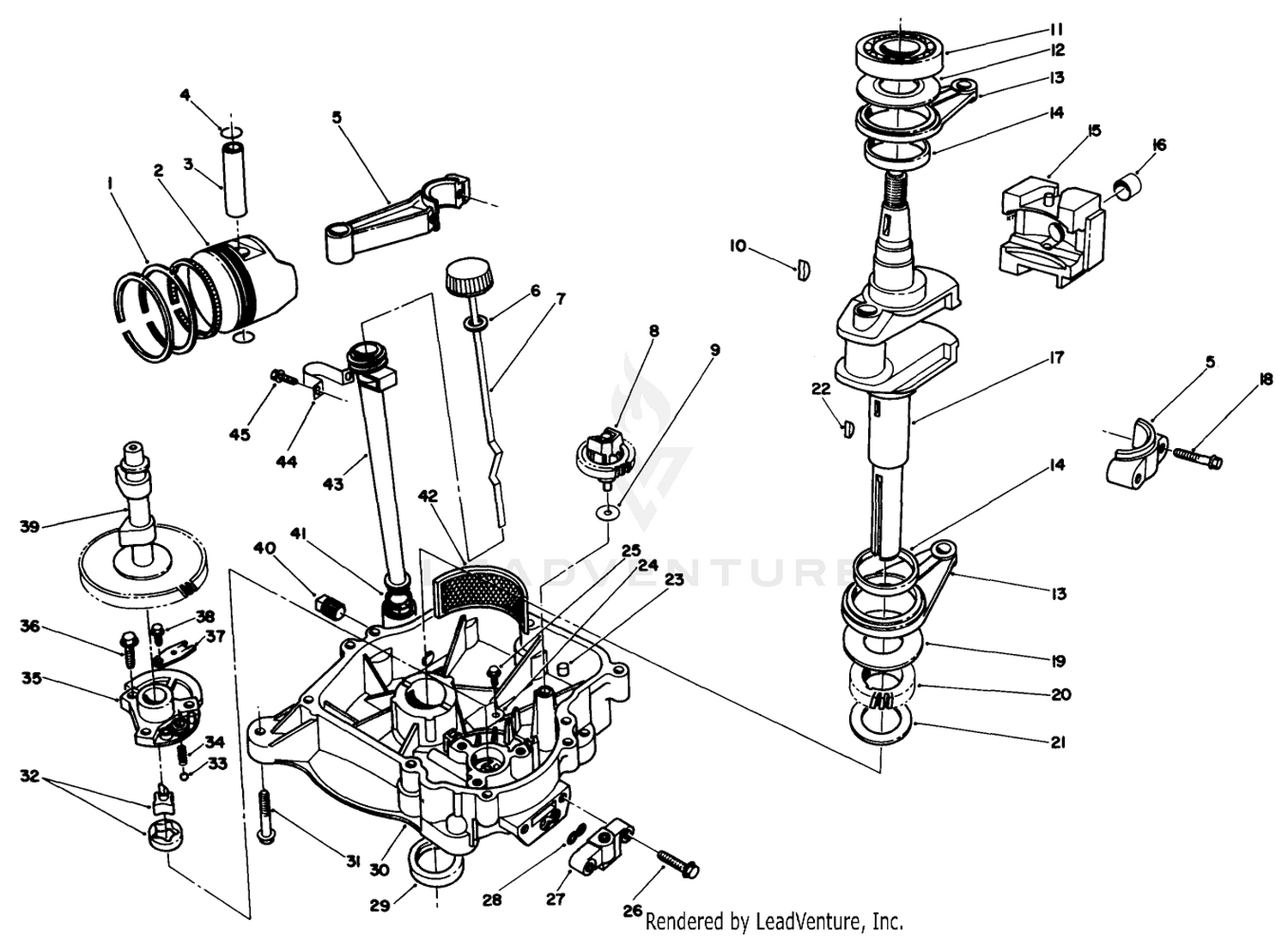

Crankcase Assembly
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13008-6001 | Piston Ring Set Price: Call Us |
| 2 | 13001-2084 | Piston Price: Call Us |
| 3 | 13002-2066 | Pin-Piston Price: Call Us |
| 4 | 92033-2066 | Ring-Snap Price: Call Us |
| 5 | 13251-6005 | Connecting Rod Ass-y-Standard (includes item 44) Price: Call Us |
| 6 | 11009-2346 | Gasket Price: Call Us |
| 7 | 52005-2058 | Gauge Price: Call Us |
| 9 | 314401-5135A | Washer Price: Call Us |
| 10 | 510A5100 | Key-Woodruff Price: Call Us |
| 11 | 601A6207 | Ball Bearing Price: Call Us |
| 12 | 92026-2150 | Spacer Price: Call Us |
| 13 | 46102-6001 | Rod Assy (includes item 135) Price: Call Us |
| 14 | 92141-2088 | Bushing Price: Call Us |
| 15 | 13042-6001 | Weight Price: Call Us |
| 16 | 92141-2007 | Bushing Price: Call Us |
| 17 | 49119-2106 | Crankshaft Price: Call Us |
| 18 | 315801-3245A | Bolt Price: Call Us |
| 19 | 92026-2156 | Spacer Price: Call Us |
| 20 | 59056-2018 | Gear Price: Call Us |
| 21 | 92025-2145 | Shim (1.18) Price: Call Us |
| 22 | 510A5100 | Key-Woodruff Price: Call Us |
| 23 | 551A0814 | Pin-Dowel Price: Call Us |
| 24 | 13169-2359 | Plate Price: Call Us |
| 25 | 130B0508 | Bolt Price: Call Us |
| 26 | 130B0830 | Bolt Price: Call Us |
| 27 | 14025-2145 | Cover Price: Call Us |
| 28 | 92055-2063 | Seal Price: Call Us |
| 29 | 92049-2095 | Seal-Oil Price: Call Us |
| 30 | 49015-6001 | Gasket Price: Call Us |
| 31 | 130G0825 | Bolt-Flanged (8X25) Price: Call Us |
| 32 | 16082-2057 | Pump ASM-Oil Price: Call Us |
| 33 | 600A1000 | Ball Price: Call Us |
| 34 | 92081-2216 | Spring Price: Call Us |
| 35 | 16142-6001 | Cover-Pump Price: Call Us |
| 36 | 130G0825 | Bolt-Flanged (8X25) Price: Call Us |
| 37 | 13169-2360 | Plate Price: Call Us |
| 38 | 130B0610 | BOLT-FLANGED (6X10) Price: Call Us |
| 39 | 120442109 | Camshaft Price: Call Us |
| 41 | 670D2016 | O-RING (16mm) Price: Call Us |
| 42 | 49065-2056 | Filter-Oil Price: Call Us |
| 43 | 59231-2059 | Filler Price: Call Us |
| 44 | 92037-2160-9H | Clamp Price: Call Us |
