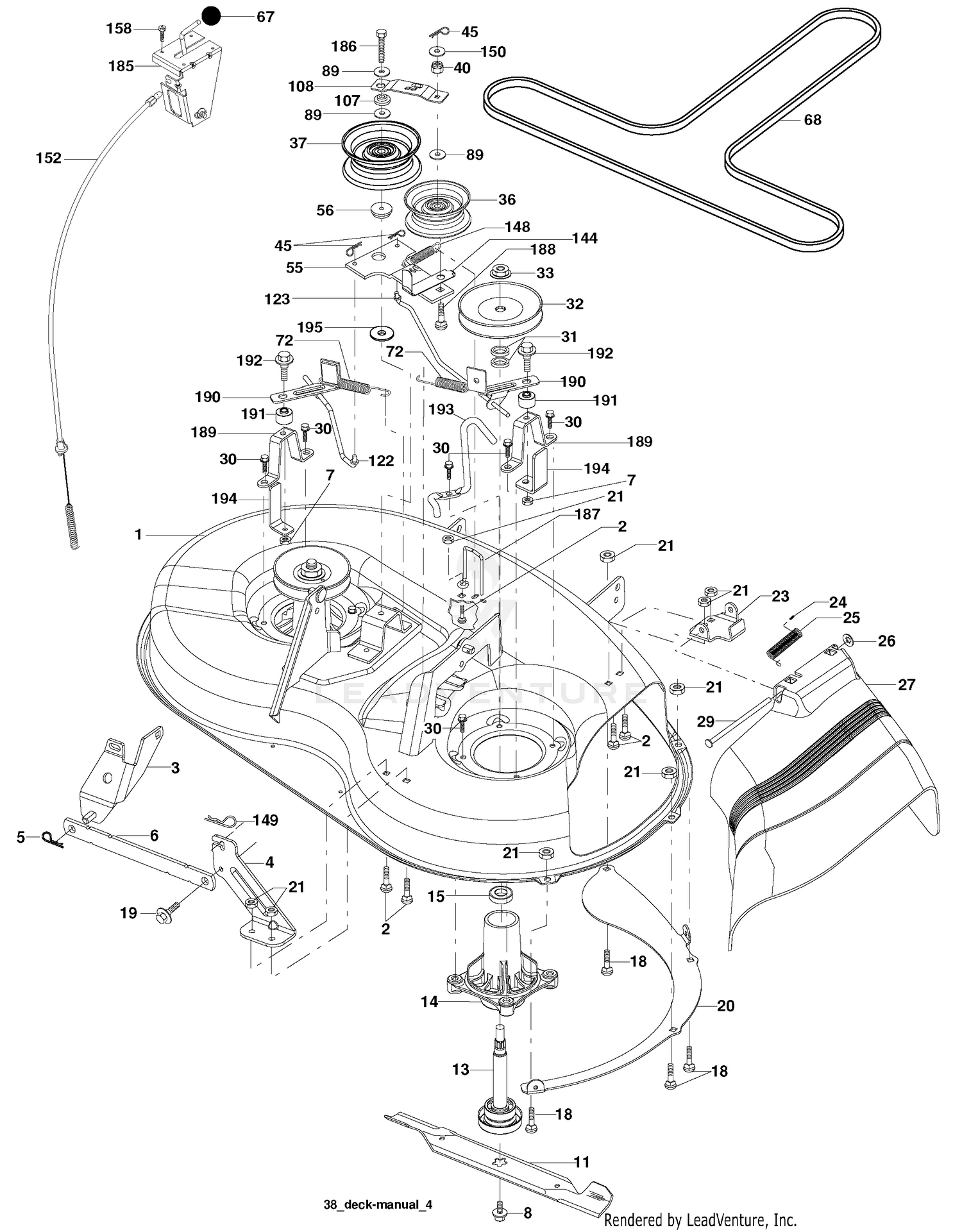

| Ref | Part Number | Description |
|---|
| 1 |
192556 |
Mower Housing Assembly Price: Call Us |
| 1 |
27-6861 |
SHAFT-FLANGED AXLE, LH Price: $984.28 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
192568 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 7 |
73800500 |
Nut Lock Hex w/Insert 5/16-18 unc Price: Call Us |
| 8 |
193003 |
Bolt 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 11 |
193957 |
Blade Mower Price: Call Us |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 12 |
94-6935 |
LOCKNUT Price: $1.09 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 14 |
187281 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 16 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 17 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 18 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 18 |
72140505 |
Blade Rdhd Sqnk 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 20 |
400095 |
Baffl e Vortex Front Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 23 |
192557 |
Bracket, Mower Defl ector Price: Call Us |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
197026 |
Spring, Torsion, Defl ector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
192572X428 |
Shield, Defl ector Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
193198 |
Pulley, Idler Flat Price: Call Us |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
193214 |
V-Belt Price: Call Us |
| 72 |
193216 |
Spring Brake Return Price: Call Us |
| 89 |
19131311 |
Washer 13/32 x 13/16 x 11 Ga. Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 122 |
192575 |
Rod, Brake LH Price: Call Us |
| 123 |
192576 |
Rod, Brake RH Price: Call Us |
| 144 |
193414 |
Keeper Belt Idler Tension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
193235 |
Clutch Cable 38" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 186 |
17490644 |
Screw Hex Wsh Thdrol 3/8-16 x 2-3/4 Price: Call Us |
| 187 |
193412 |
Keeper Belt M Shape Price: Call Us |
| 188 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 189 |
192559 |
Brake Stand Price: Call Us |
| 190 |
192560 |
Brake Arm Price: Call Us |
| 191 |
192561 |
Brake Spacer Price: Call Us |
| 192 |
193782 |
Bolt/Washer Asm. 5/16-18 Price: Call Us |
| 193 |
193413 |
Keeper Belt Rh Mandrel Price: Call Us |
| 194 |
194105 |
Brake Guard Price: Call Us |
| 195 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
