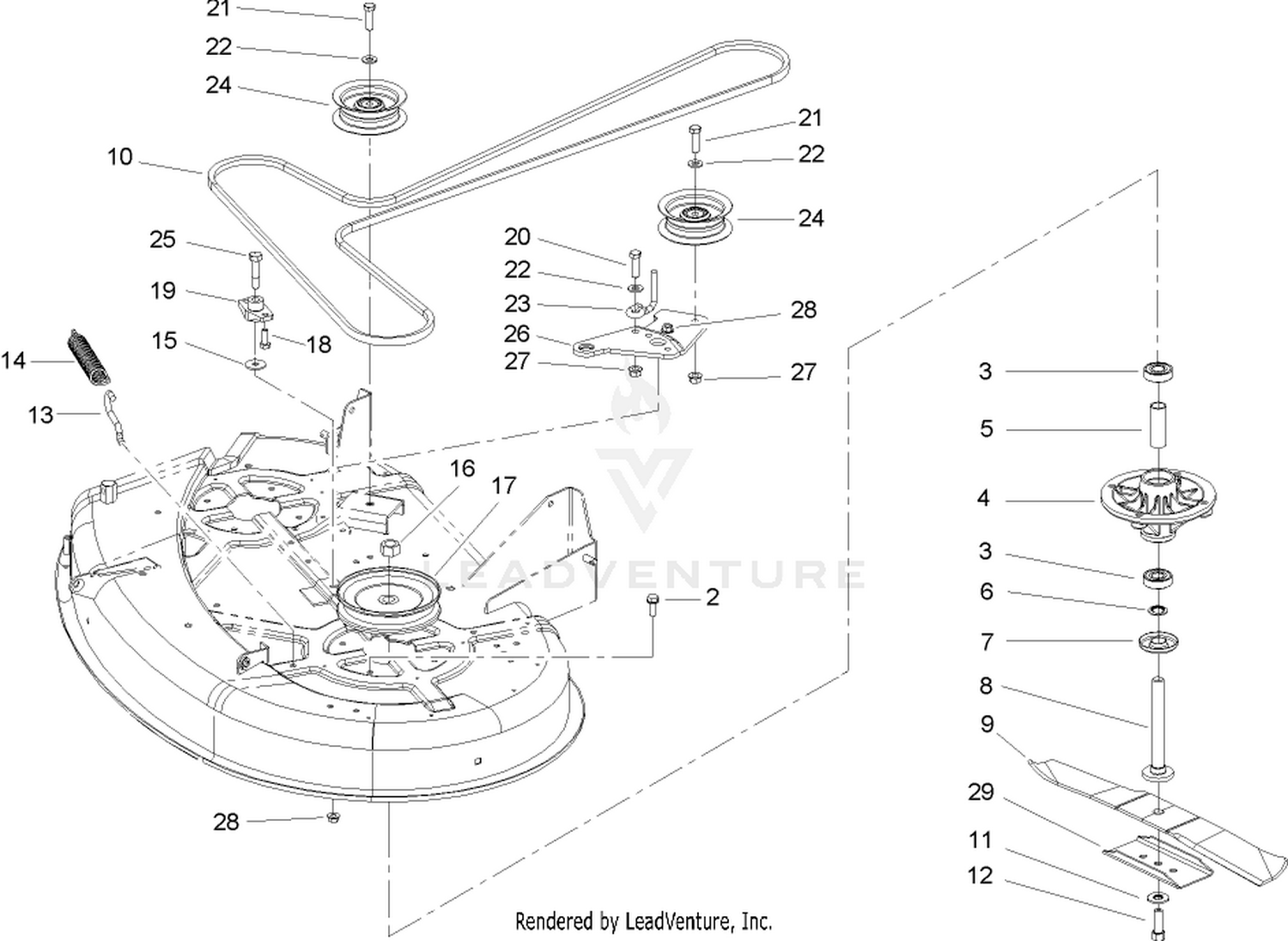

| Ref | Part Number | Description |
|---|
| 2 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 3 |
38-7820 |
BEARING-BALL This part replaces 100-1048. Price: $13.99 |
| 4 |
88-4510 |
HOUSING-SPINDLE Price: $71.13 |
| 5 |
62-3661 |
SPACER Price: $10.41 |
| 6 |
80-4380 |
SPACER Price: $4.08 |
| 7 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 8 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 9 |
106-2247-03 |
BLADE Price: $20.79 |
| 10 |
106-2173 |
BELT-V Price: $66.75 |
| 11 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 12 |
26-0671 |
SCREW-HH Price: $7.99 |
| 13 |
138-7267 |
HOOK-SPRING, RETURN This part replaces 88-5970. Price: $1.12 |
| 14 |
106-2177 |
SPRING-EXTENSION Price: $9.92 |
| 15 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 16 |
3219-6 |
NUT-HEX Price: $2.78 |
| 17 |
88-5330 |
PULLEY Price: $71.58 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 19 |
88-4980 |
BUSHING-ARM, IDLER Price: $9.66 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
323-9 |
SCREW-HH Price: $1.29 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
138-7270 |
GUIDE-BELT, IDLER This part replaces 107-7307. Price: $1.69 |
| 24 |
132-9420 |
PULLEY-IDLER, FLAT This part replaces 106-2175. Price: $25.16 |
| 25 |
7-0030 |
SCREW-SHOULDER, HH Price: $7.99 |
| 26 |
107-2467-03 |
ARM-IDLER Price: $29.89 |
| 27 |
32128-21 |
NUT-HF Price: $0.39 |
| 28 |
32128-25 |
NUT-HF Price: $3.19 |
