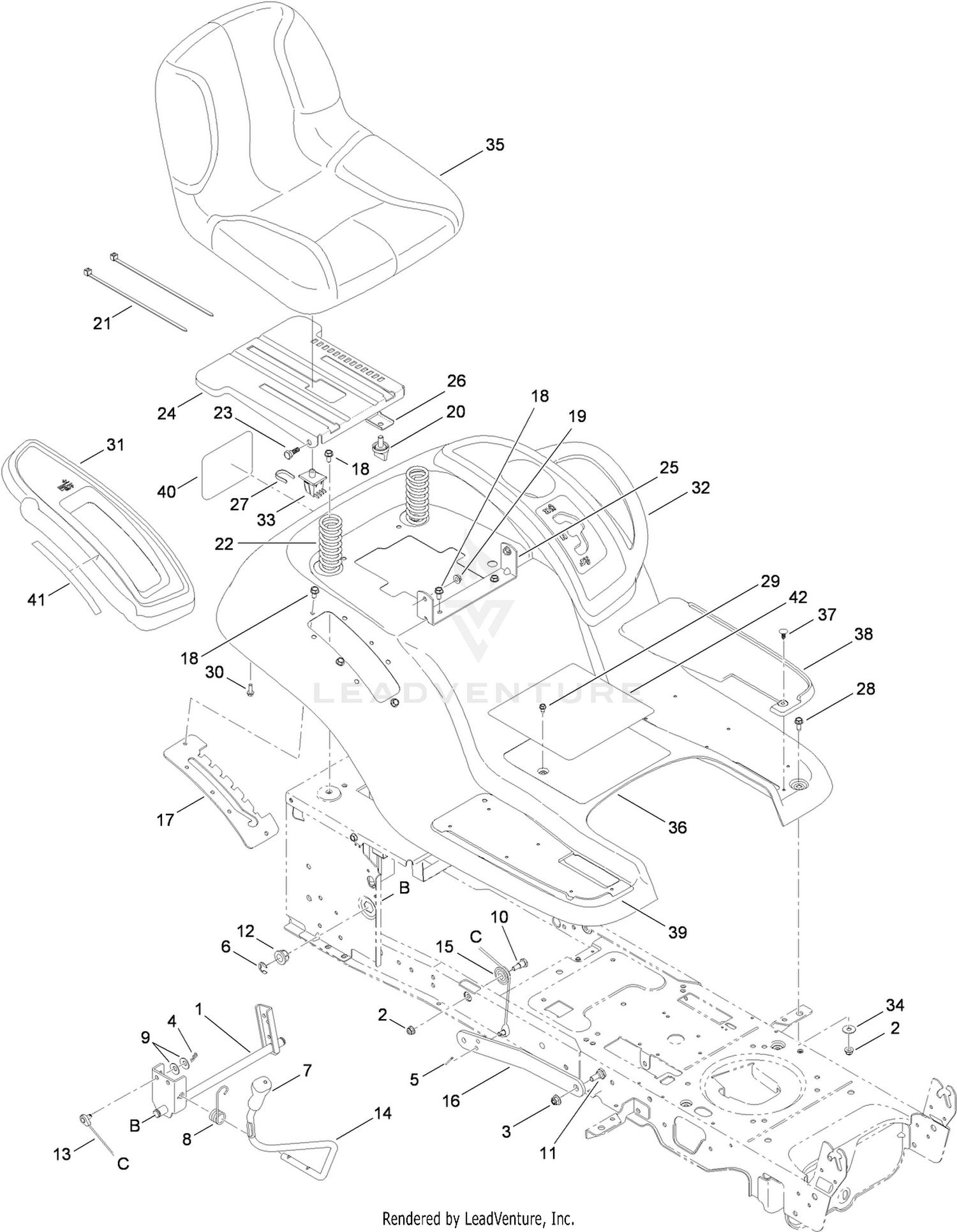

| Ref | Part Number | Description |
|---|
| 1 |
112-5969 |
LIFT SHAFT ASM Price: $37.24 |
| 2 |
112-0650 |
NUT-LOCK, FLANGE Price: $3.42 |
| 3 |
112-0668 |
NUT-LOCK, FLANGE Price: $3.38 |
| 4 |
112-0459 |
DISCONTINUED Price: Call Us |
| 5 |
112-0990 |
PIN-COTTER Price: $3.31 |
| 6 |
112-0586 |
RING-E Price: $3.63 |
| 7 |
112-0585 |
DISCONTINUED Price: Call Us |
| 8 |
112-0477 |
SPRING-TORSION Price: $3.63 |
| 9 |
112-0660 |
WASHER-SPRING Price: $3.48 |
| 10 |
112-0443 |
BOLT-SHOULDER Price: $5.65 |
| 11 |
112-0442 |
DISCONTINUED Price: Call Us |
| 12 |
112-0347 |
BEARING-FLANGE Price: $8.02 |
| 13 |
112-0374 |
CABLE-LIFT Price: $19.12 |
| 14 |
119-3998 |
HANDLE-LIFT Price: $37.24 |
| 15 |
119-3999 |
PULLEY-CABLE Price: $5.04 |
| 16 |
119-9059 |
ARM-LIFT Price: $19.59 |
| 17 |
119-8405 |
BRACKET-LIFT Price: $18.62 |
| 18 |
112-6070 |
SCREW-TAP Price: $3.24 |
| 19 |
112-0511 |
NUT-LOCK, FLANGE Price: $3.38 |
| 20 |
112-0409 |
KNOB Price: $5.04 |
| 21 |
112-0527 |
TIE-CABLE Price: $3.60 |
| 22 |
112-6208 |
SPRING-COMPRESSION Price: $15.61 |
| 23 |
112-0575 |
BOLT-SHOULDER Price: $3.52 |
| 24 |
112-6214 |
BRACKET-MOUNT, SEAT Price: $61.65 |
| 25 |
112-6217 |
BRACKET-PIVOT, SEAT Price: $14.85 |
| 26 |
112-6216 |
BRACKET-KNOB, ADJUSTMENT Price: $4.67 |
| 27 |
119-8400 |
CLIP-RETENSION Price: $4.13 |
| 28 |
112-0373 |
SCREW-HH Price: $3.50 |
| 29 |
112-0524 |
SCREW-HWHTF Price: $3.48 |
| 30 |
112-0509 |
SCREW-TAP Price: $5.11 |
| 31 |
112-6212 |
COVER-FENDER, RH Price: $40.42 |
| 32 |
112-6065 |
COVER-FENDER, LH (W/CUPHOLDER) Price: $39.67 |
| 33 |
119-8404 |
SWITCH-SEAT Price: $34.49 |
| 34 |
112-0582 |
WASHER-FLAT Price: $3.52 |
| 35 |
112-6215 |
SEAT-HIGH Price: $273.17 |
| 36 |
119-8486 |
FENDER Price: $417.67 |
| 37 |
112-0549 |
CLIP-RATCHET, FASTENER Price: $3.50 |
| 38 |
119-8402 |
PAD-FOOT, LH Price: $19.02 |
| 39 |
119-8403 |
PAD-FOOT, RH Price: $19.02 |
| 40 |
119-9050 |
DECAL-TORO Price: $8.88 |
| 41 |
119-8480 |
DECAL-HOC Price: $9.92 |
