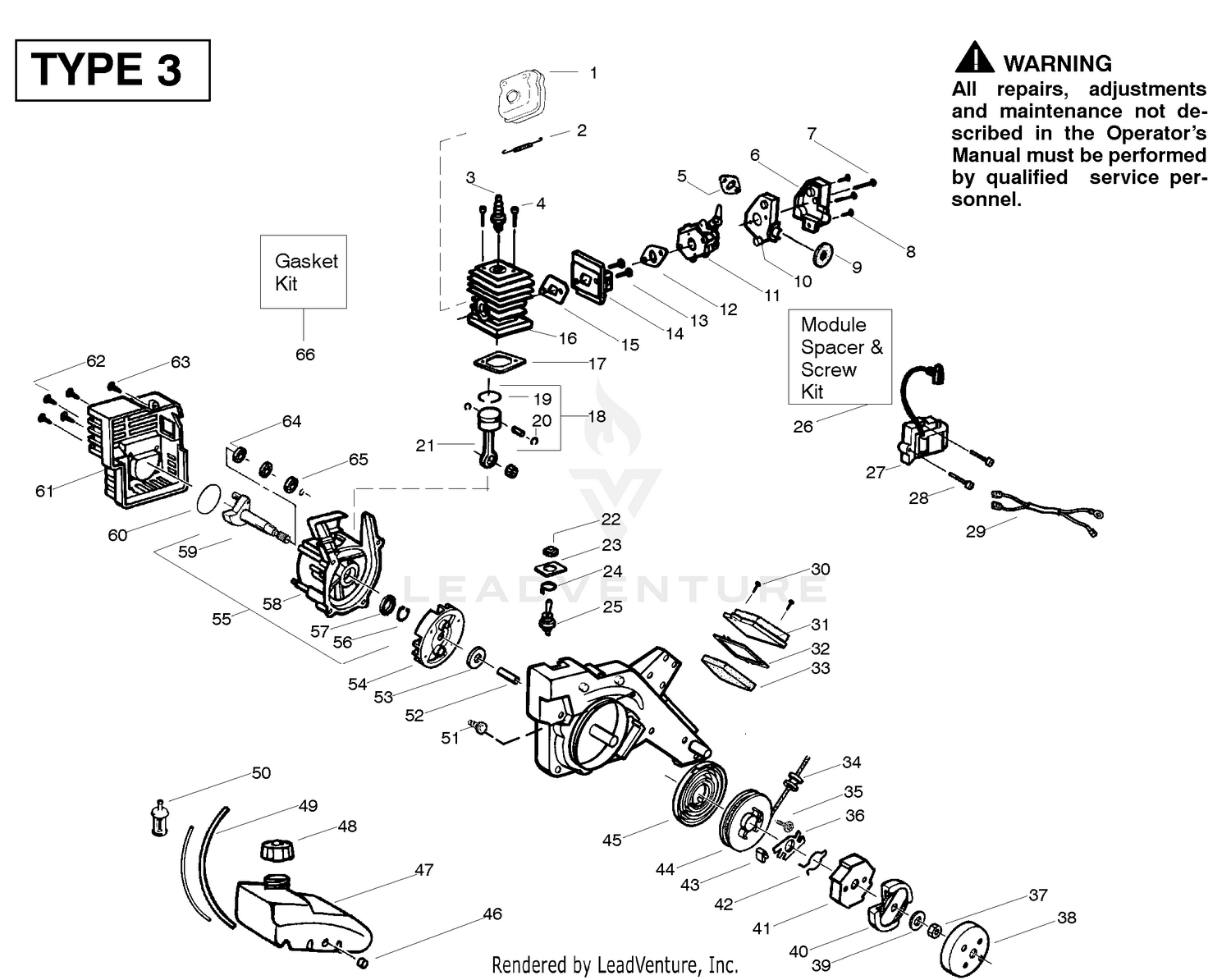

Engine Type - 3
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 530042088 | Spring-Muffler Price: $1.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 952030249 | Plug-Spark (RCJ-6Y) Price: $3.99 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 4 | 530015953 | Screw Price: $1.99 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 5 | 530071611 | Gasket-Carb/Bracket(kit) Price: $5.99 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 530036622 | Cover-Air Box Price: $1.99 |
| 7 | 43-1950 | HYD CONTROL VALVE ASM This part replaces 22-8320. Price: $695.34 |
| 7 | 530015887 | Screw Price: $1.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 530015886 | Screw Price: $1.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 530071611 | Seal-Foam (kit) Price: $5.99 |
| 10 | 22-8510 | DISCONTINUED Price: Call Us |
| 10 | 530036626 | Base-Air Box Price: $1.99 |
| 11 | 22-8380 | RETAINER Price: $17.86 |
| 11 | 530071634 | Kit-Carb. (Wt-630) Price: $37.99 |
| 12 | 22-8410 | SPRING Price: $17.61 |
| 12 | 530071611 | Gasket-Carb.(kit) Price: $5.99 |
| 13 | 23-3030 | SPACER Price: $33.93 |
| 13 | 530016014 | Screw Price: $1.99 |
| 14 | 22-8480 | RING-SNAP Price: $49.87 |
| 14 | 530057618 | Adapter-Carb. Price: $5.99 |
| 15 | 22-8490 | RING-SNAP Price: $6.51 |
| 15 | 530071611 | Gasket-Cyl./Carb. (kit) Price: $5.99 |
| 16 | 22-8430 | DISCONTINUED Price: Call Us |
| 16 | 530012482 | Cylinder Price: $32.99 |
| 17 | 530071611 | Gasket-Cyl. (kit) Price: $5.99 |
| 19 | 545154009 | PISTON RING This part replaces 530012472. Price: $1.99 |
| 20 | 530015162 | Retainer-Pin Price: $1.99 |
| 21 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 22 | 530016038 | Boot-Switch w/nut Price: $3.99 |
| 23 | 530053920 | Assy-Gound Switch This part replaces 530053921. Price: $7.99 |
| 24 | 530037066 | Terminal-Grounding Price: $1.99 |
| 26 | 530071731 | Kit-Mod. spacer/screw Price: $4.99 |
| 27 | 530039163 | Module-Ignition Price: $34.99 |
| 28 | 530016357 | Screw Price: $1.99 |
| 29 | 530014655 | Assy-Switch Wire Price: $4.99 |
| 30 | 530015983 | Screw Price: $1.99 |
| 31 | 530057612 | Cover-Air Filter Price: $4.99 |
| 32 | 530071611 | Gasket-Cover (kit) Price: $5.99 |
| 33 | 530057034 | Foam-Air Filter Price: $2.99 |
| 34 | 530037224 | Eyelet Price: $1.99 |
| 35 | 530015882 | Screw Price: $1.99 |
| 36 | 530042073 | Cam-Starter Price: $1.99 |
| 37 | 530626605 | Nut Price: $1.99 |
| 38 | 530036665 | Drum-Clutch Price: $5.99 |
| 39 | 530015127 | Washer-Flywheel Price: $1.99 |
| 40 | 530014832 | Assy-Clutch Price: $5.99 |
| 41 | 530036922 | Cup-Starter Price: $2.99 |
| 42 | 530042072 | Wire-Starter Dog Price: $1.99 |
| 43 | 530027162 | Dog-Starter Price: $1.99 |
| 45 | 545008006 | KIT STARTER SPRING This part replaces 530037229. Price: $3.99 |
| 46 | 545132401 | ISOLATOR This part replaces 530053725. Price: $1.99 |
| 48 | 530014347 | Assy-Fuel Cap Price: $4.99 |
| 49 | 530069599 | Kit-Fuel Line Price: $4.99 |
| 50 | 530095646 | Assy-Fuel Pick-up Price: $2.99 |
| 51 | 530057308 | Clip-Pine Tree Price: $1.99 |
| 52 | 530036927 | Spacer-Flywheel Price: $1.99 |
| 53 | 530015828 | Washer-Flat Price: $1.99 |
| 54 | 545221701 | FLYWHEEL ASSY This part replaces 530054115. Price: $8.99 |
| 56 | 530015941 | Retainer-C'shaft Price: $1.99 |
| 57 | 530071615 | Kit-Crankcase Seal Price: $4.99 |
| 59 | 530014864 | Assy-Crankshaft Price: $14.99 |
| 60 | 530071363 | O-ring-c'case/shrd (kit) Price: $5.99 |
| 61 | 530057607 | Shroud Price: $11.99 |
| 62 | 530016386 | Screw Price: $5.99 |
| 63 | 530016349 | Screw Price: $1.99 |
| 64 | 530032125 | Bearing-Inner Price: $11.99 |
| 65 | 530055728 | Bearing-Outer Price: $6.99 |
