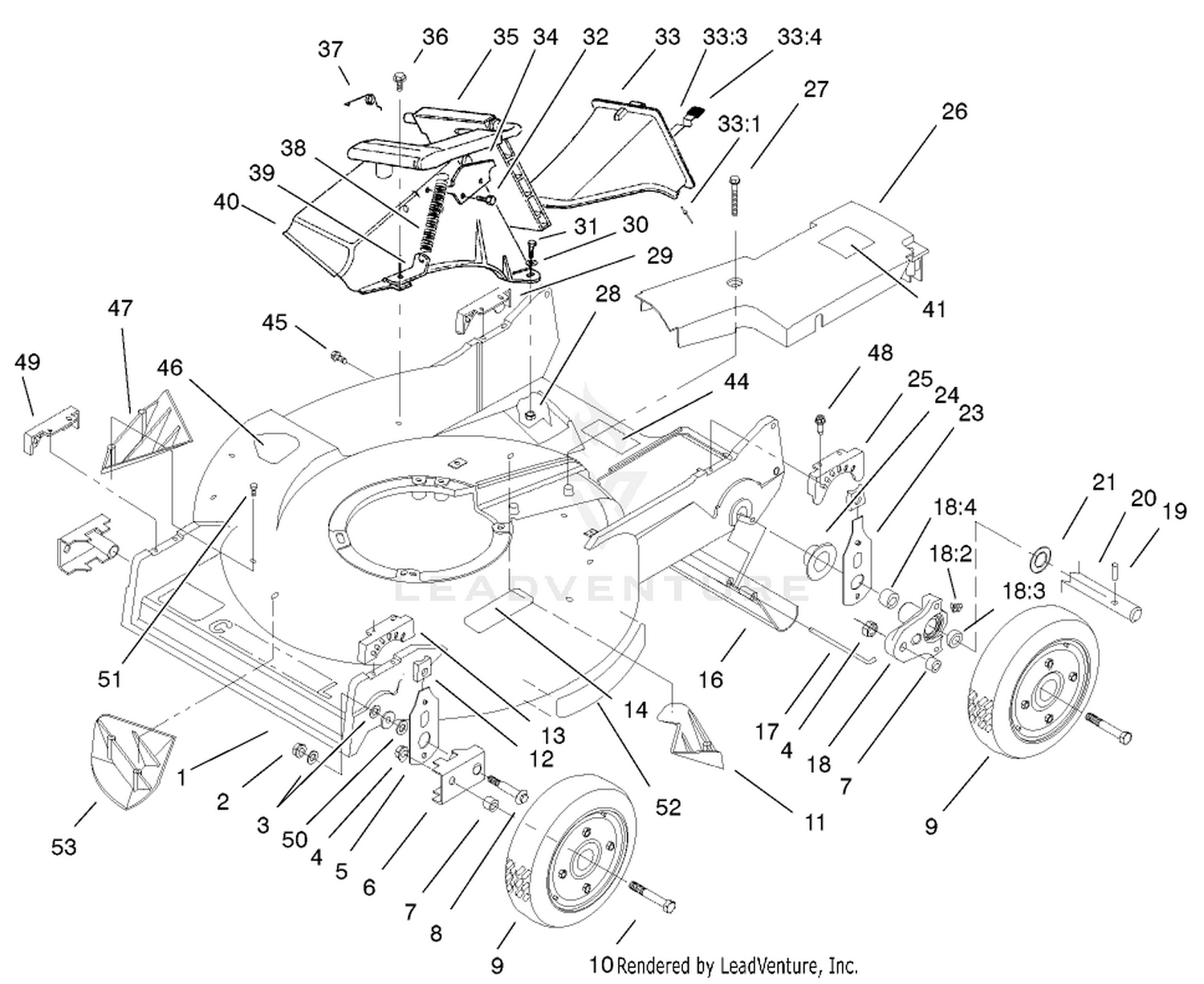

| Ref | Part Number | Description |
|---|
| 1 |
98-7139 |
HOUSING ASM Price: $231.29 |
| 2 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 3 |
40-1940 |
WASHER Price: $1.59 |
| 4 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 5 |
66-7560 |
FRONT SPRING ARM ASM Price: $8.97 |
| 6 |
61-8300 |
ARM-PIVOT, FRONT Price: $19.06 |
| 7 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 8 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 9 |
121-1380 |
WHEEL AND TIRE ASM This part replaces 53-7720. Price: $92.99 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
92-1750 |
KICKER-REAR Price: $12.52 |
| 12 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 13 |
49-8760 |
QUADRANT-FRONT, LH Price: $17.49 |
| 14 |
104-8589 |
DECAL-WARNING This part replaces 93-0248. Price: $3.79 |
| 16 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 17 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 18 |
42-3510 |
Pivot Arm (Incl. Ref. #33-35) Price: $40.45 |
| 19 |
32121-108 |
PIN-SPIROL Price: $4.45 |
| 20 |
49-8790 |
SHAFT-AXLE, REAR Price: $38.26 |
| 21 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 23 |
66-7561 |
REAR SPRING ARM ASM Price: $10.17 |
| 24 |
48-2170 |
CAP-END Price: $6.69 |
| 25 |
49-8740 |
QUADRANT-REAR, LH Price: $17.49 |
| 26 |
63-9441 |
COVER-BELT Price: $33.72 |
| 27 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 28 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 29 |
49-8750 |
QUADRANT-REAR, RH Price: $17.49 |
| 30 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 31 |
321-7 |
SCREW-HH Price: $4.19 |
| 32 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 33 |
77-0500 |
DISCHARGE PLUG ASM Price: $43.77 |
| 34 |
93-3154 |
LATCH-PLATE Price: $4.89 |
| 35 |
93-7351 |
DISCHARGE DOOR ASM Price: $74.60 |
| 36 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 37 |
80-3770 |
RETAINER-DOOR Price: $1.88 |
| 38 |
76-4660 |
SPRING-DOOR Price: $10.99 |
| 39 |
71-9350 |
BRACKET-SPRING Price: $9.34 |
| 40 |
82-9152 |
TUNNEL-DISCHARGE Price: $69.14 |
| 41 |
52-2610 |
LABEL-GREASE, HP Price: Call Us |
| 44 |
92-1779 |
DECAL-WARNING Price: $4.76 |
| 45 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 46 |
39-5770 |
DECAL-DANGER Price: $5.12 |
| 47 |
92-1730 |
KICKER-RH Price: $12.91 |
| 48 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 49 |
49-8770 |
QUADRANT-FRONT, RH Price: $17.49 |
| 50 |
257-3 |
WASHER-THRUST Price: $10.46 |
| 51 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 52 |
106-0689 |
DECAL This part replaces 92-7988. Price: $4.30 |
