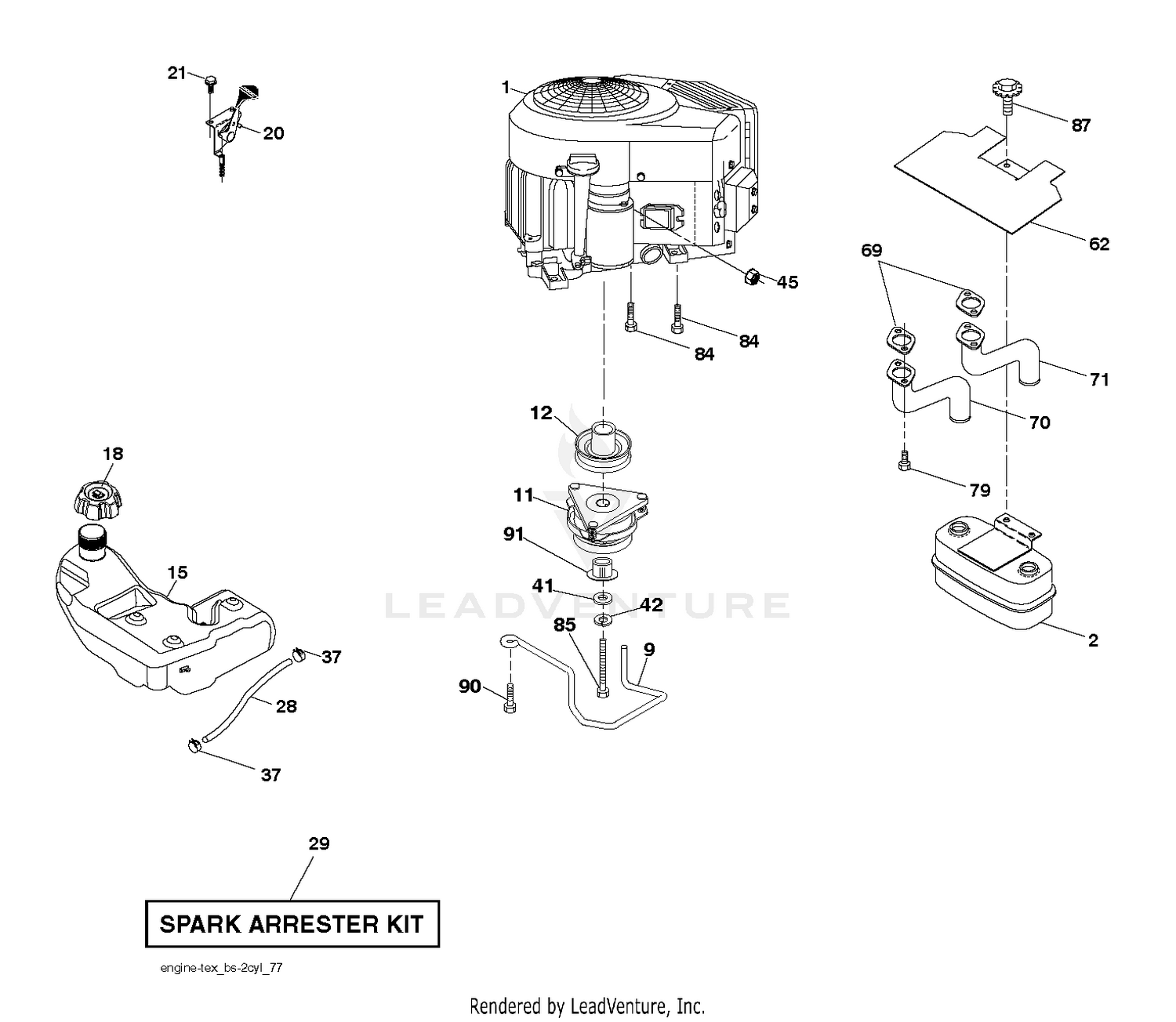

| Ref | Part Number | Description |
|---|
| 1 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 2 |
2412-32 |
R-CLAMP Price: $0.61 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
74-5480 |
CABLE-THROTTLE Price: $42.82 |
| 4 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 5 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 6 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 7 |
76-4300 |
LEVER-THROTTLE Price: $33.40 |
| 8 |
76-8450 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 10 |
3218-2 |
NUT-JAM Price: $0.25 |
| 11 |
253-84 |
SEAL-OIL Price: $10.00 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 14 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 16 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 17 |
77-3970 |
DISCONTINUED Price: Call Us |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
63-7590 |
RELAY Price: $78.15 |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
59-7130 |
KNOB-CONTROL, SPEED Price: $25.40 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
76-5260 |
DISCONTINUED Price: Call Us |
| 22 |
76-8440 |
DISCONTINUED Price: Call Us |
| 23 |
76-8710 |
PANEL CONSOLE Price: $55.67 |
| 25 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 26 |
3290-126 |
SCREW-HWH Price: $1.79 |
| 27 |
67-0870 |
BOLT-SHOULDER Price: $8.79 |
| 28 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 33 |
3220-3 |
NUT-HJ Price: $0.28 |
| 34 |
82-5160 |
ROD - REEL LEVER Price: $37.49 |
| 35 |
82-5250 |
PLATE-ADAPTER, REEL *B Price: $13.97 |
| 36 |
76-9090 |
ARM - PIVOT REEL SP PLT Price: $30.63 |
| 37 |
37-0500 |
FOLLOWER STEER SHAFT Price: $41.37 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
76-4100 |
DISCONTINUED Price: Call Us |
| 39 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 40 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 41 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
67-7160 |
BLOCK-FUSE Price: $18.75 |
| 43 |
218-573 |
FUSE-5 AMP Price: $2.64 |
| 44 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 45 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
