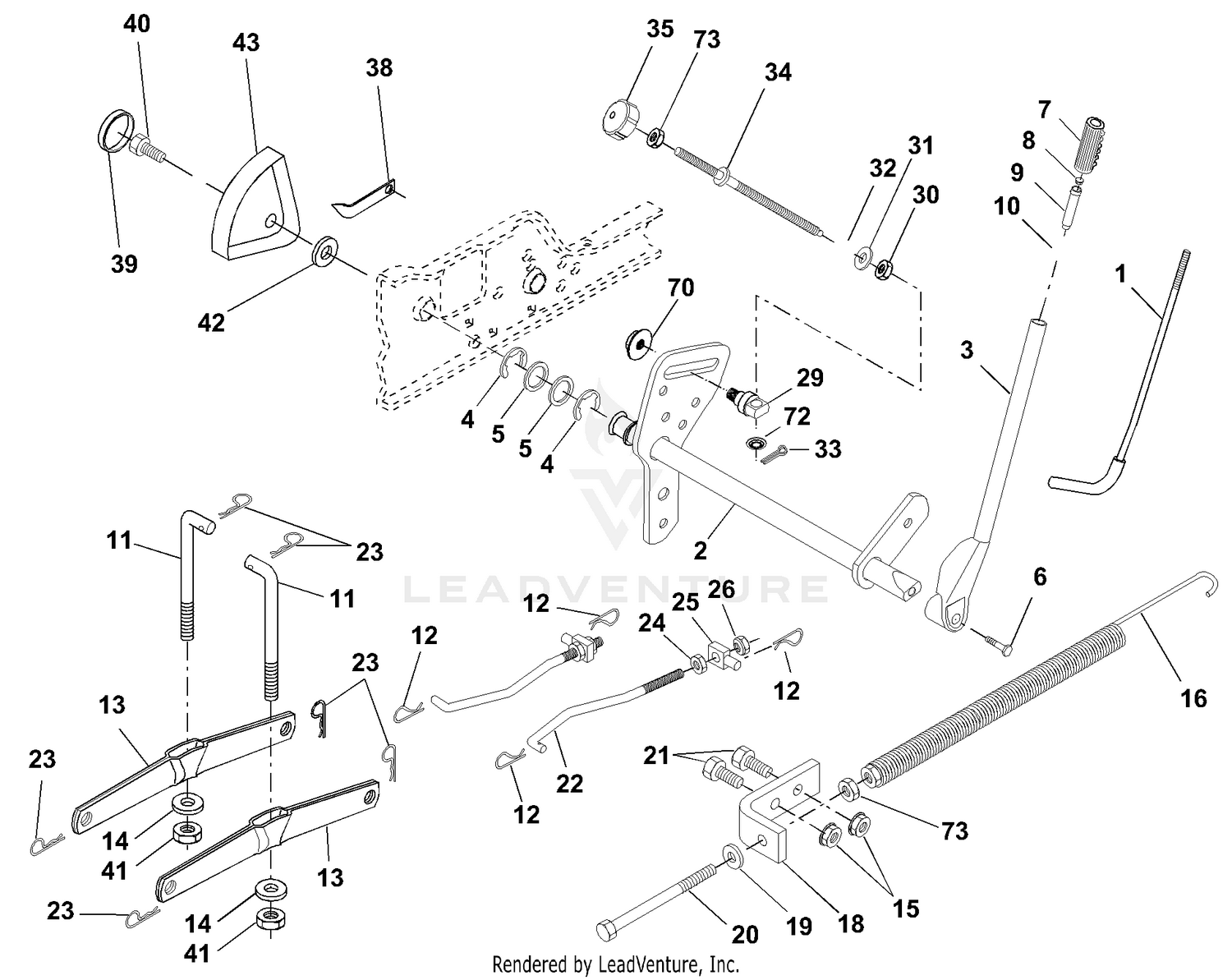

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532177535 |
SHAFT ASM, LIFT Price: $55.99 |
| 3 |
327-2 |
SCREW-HH Price: $2.44 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 4 |
93-0064-03 |
SUPPORT ASM - AXLE This part replaces 93-0064. Price: $982.56 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: $6.99 |
| 6 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/2 Price: $2.99 |
| 7 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
5-1226 |
WASHER Price: $3.90 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 10 |
67-1751 |
BUSHING Price: $4.89 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
532145543 |
LINK ASSY This part replaces 532146704. Price: $17.99 |
| 12 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 13 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 13 |
67-7250 |
SPACER-RING Price: $3.32 |
| 14 |
3220-3 |
NUT-HJ Price: $0.28 |
| 14 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 15 |
93-7001-03 |
SPINDLE-LH This part replaces 93-7001. Price: $370.29 |
| 16 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 16 |
532123994 |
SPRING This part replaces 532124687. Price: $57.46 |
| 17 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 18 |
21-2820 |
HUB Price: $269.34 |
| 18 |
532143363 |
BRACKET Price: $3.99 |
| 19 |
231-141 |
DISCONTINUED Price: Call Us |
| 19 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 20 |
241-121 |
WHEEL ASM This part replaces 217-121. Price: $162.77 |
| 20 |
532005328 |
BOLT Price: $2.99 |
| 21 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 21 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 22 |
532127218 |
FRONT LINK Price: $14.99 |
| 22 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 25 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 25 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 26 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 27 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 28 |
253-129 |
SEAL Price: $21.73 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 29 |
67-9410 |
WASHER Price: $2.04 |
| 30 |
328-25 |
SCREW-HH Price: $4.07 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
237-78 |
O-RING Price: $3.85 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
237-21 |
O-RING Price: $0.70 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 34 |
75-6230 |
HOSE This part replaces 75-6220. Price: $133.10 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 35 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 36 |
3220-5 |
NUT-JAM Price: $0.65 |
| 37 |
75-3130-03 |
ROD-TIE This part replaces 75-3130. Price: $74.06 |
| 38 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
21-0151 |
LH BALL JOINT ASM Price: $126.28 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 41 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 42 |
75-4410 |
DISCONTINUED Price: Call Us |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 43 |
76-2970 |
BUSHING-STRAIGHT Price: $9.02 |
| 44 |
75-4180-03 |
MASKED PIN ASM This part replaces 75-4180. Price: $136.86 |
| 45 |
75-2900 |
REAR AXLE WA Price: $1,154.77 |
| 46 |
237-165 |
GROMMET Price: $15.70 |
| 47 |
110-4130 |
CYLINDER-STEER, HYD This part replaces 75-1200. Price: $823.03 |
| 48 |
5-1226 |
WASHER Price: $3.90 |
| 49 |
328-27 |
SCREW HH Price: $14.79 |
| 50 |
75-6230 |
HOSE Price: $133.10 |
| 51 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 52 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 53 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
