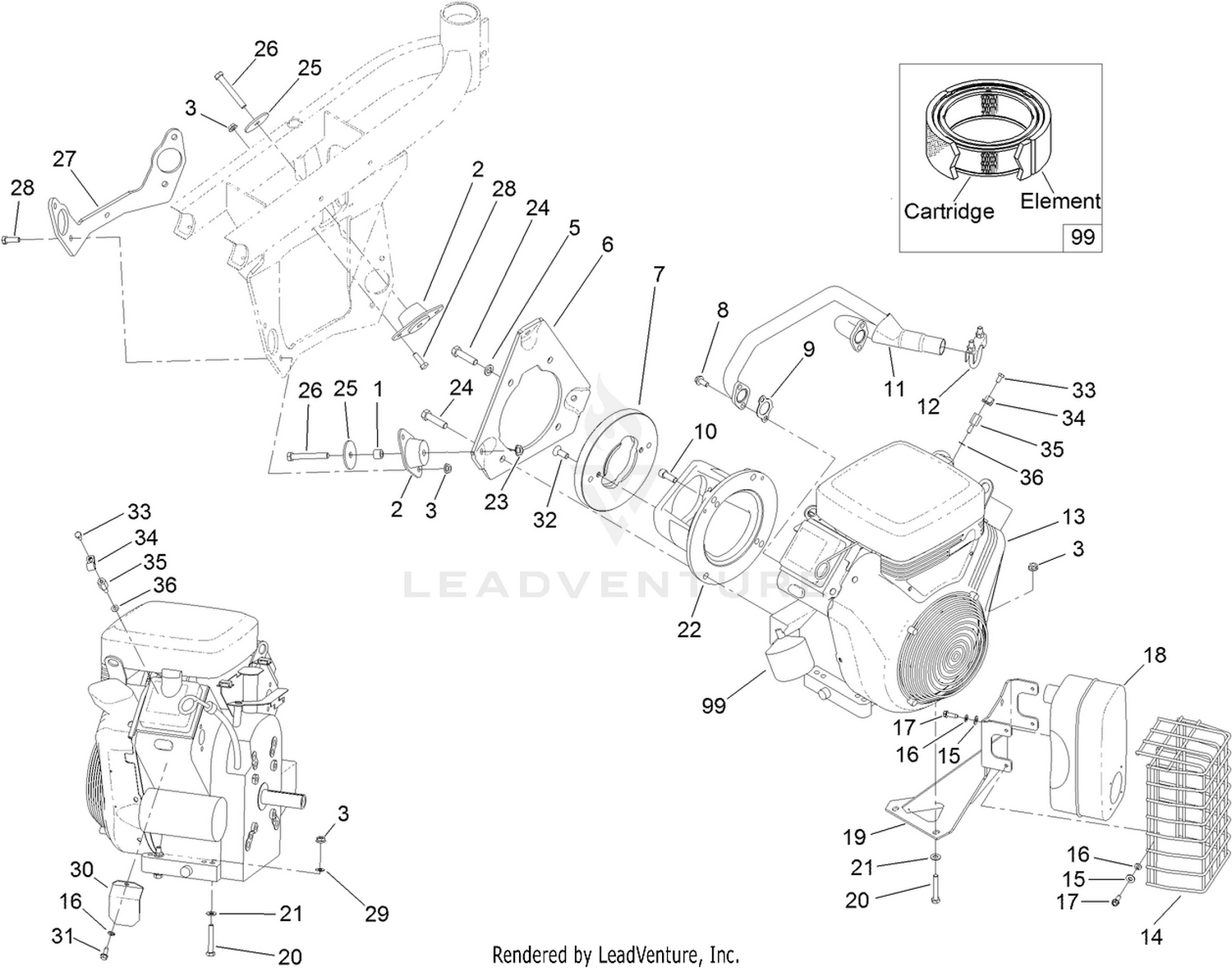

| Ref | Part Number | Description |
|---|
| 1 |
93-9847 |
SPACER Price: $6.25 |
| 2 |
125-5244 |
MOUNT-ENGINE Price: $34.40 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 5 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 6 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 7 |
131-2793 |
PLATE-ADAPTER Price: $261.39 |
| 8 |
94-5300 |
SCREW-HHF Price: $0.80 |
| 9 |
94-5844 |
GASKET This part replaces 94-3449. Price: $8.03 |
| 10 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 11 |
119-4128 |
MANIFOLD-EXHAUST Price: $176.95 |
| 12 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 13 |
132-9531 |
ENGINE-VANGUARD Price: $2,724.90 |
| 14 |
112-0220 |
GRILLE-MUFFLER Price: $18.94 |
| 15 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 17 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 18 |
98-0616 |
MUFFLER Price: $136.88 |
| 19 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 20 |
322-10 |
SCREW-HH Price: $0.70 |
| 21 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 22 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 23 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 24 |
324-7 |
SCREW-HH Price: $1.79 |
| 25 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 26 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 27 |
121-9539-01 |
SUPPORT-ENGINE Price: $55.08 |
| 28 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 29 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 30 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 31 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 32 |
ST80068 |
SCREW Price: $0.54 |
| 33 |
33113-012 |
SCREW-HH Price: $0.71 |
| 34 |
2412-94 |
CLAMP Price: $2.31 |
| 35 |
106-4616 |
SCREW-SPACER Price: $13.50 |
| 36 |
127-2229 |
WASHER-FIBER Price: $2.24 |
| 99 |
107-7817 |
FILTER-OIL, ENGINE Price: $13.42 |
| 99 |
92-0527 |
CARTRIDGE-CLEANER, AIR Price: $30.99 |
