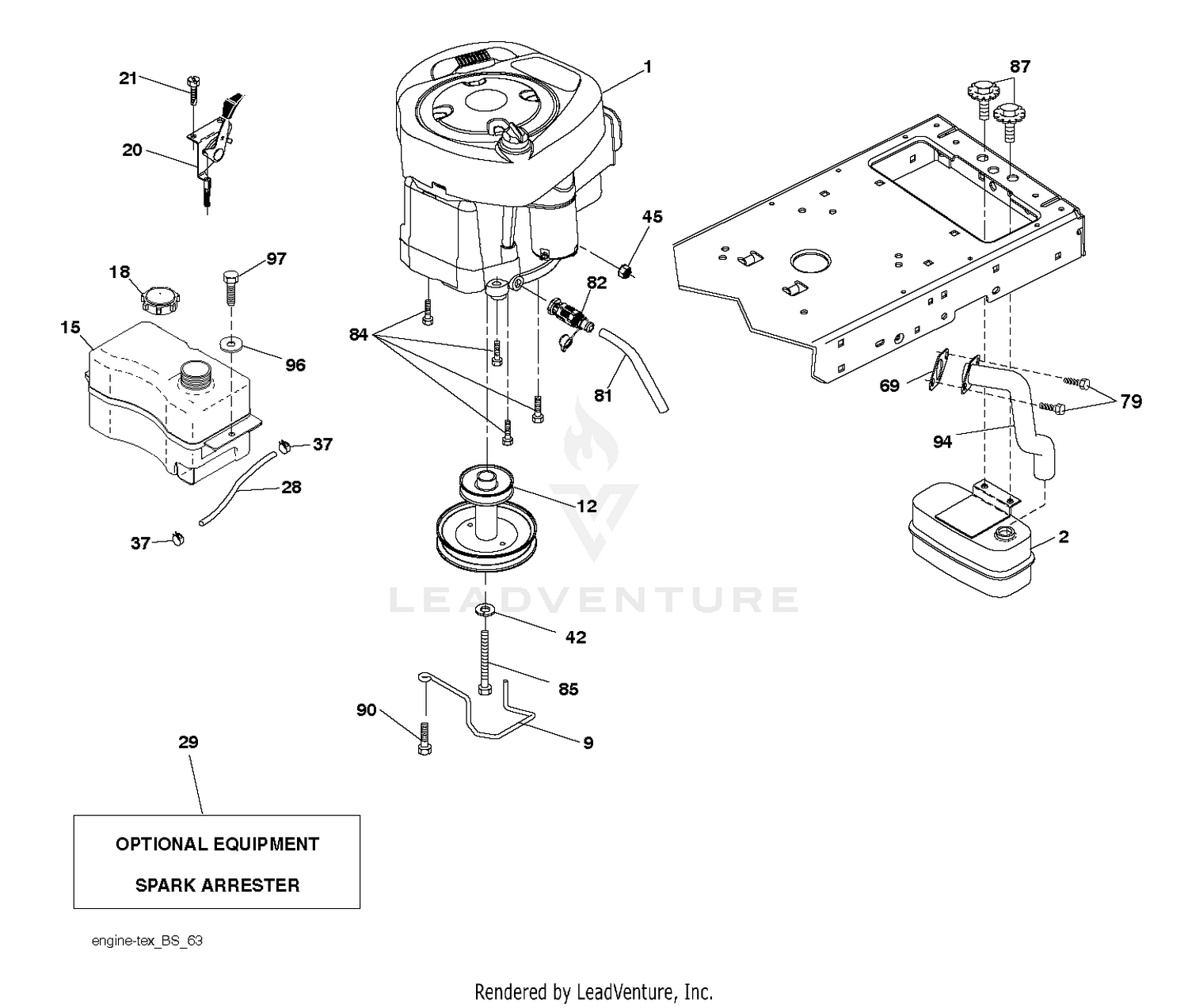

| Ref | Part Number | Description |
|---|
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $29.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 9 |
112-1725 |
SPRING-COMPRESSION Price: $14.14 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 Price: $7.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
586729001 |
PULLEY.ENGINE This part replaces 532401985. Price: $24.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $14.99 |
| 19 |
112-1703 |
FRAME Price: $330.04 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
583045801 |
CNTRL.TH/CK.PADDL.20_2.BLK.#37 This part replaces 532170545. Price: $24.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 24 |
131-4712 |
CARRIER FRAME ASM Price: $461.97 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532131780 |
Kit Spark Arrestor 1 25 Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $17.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
