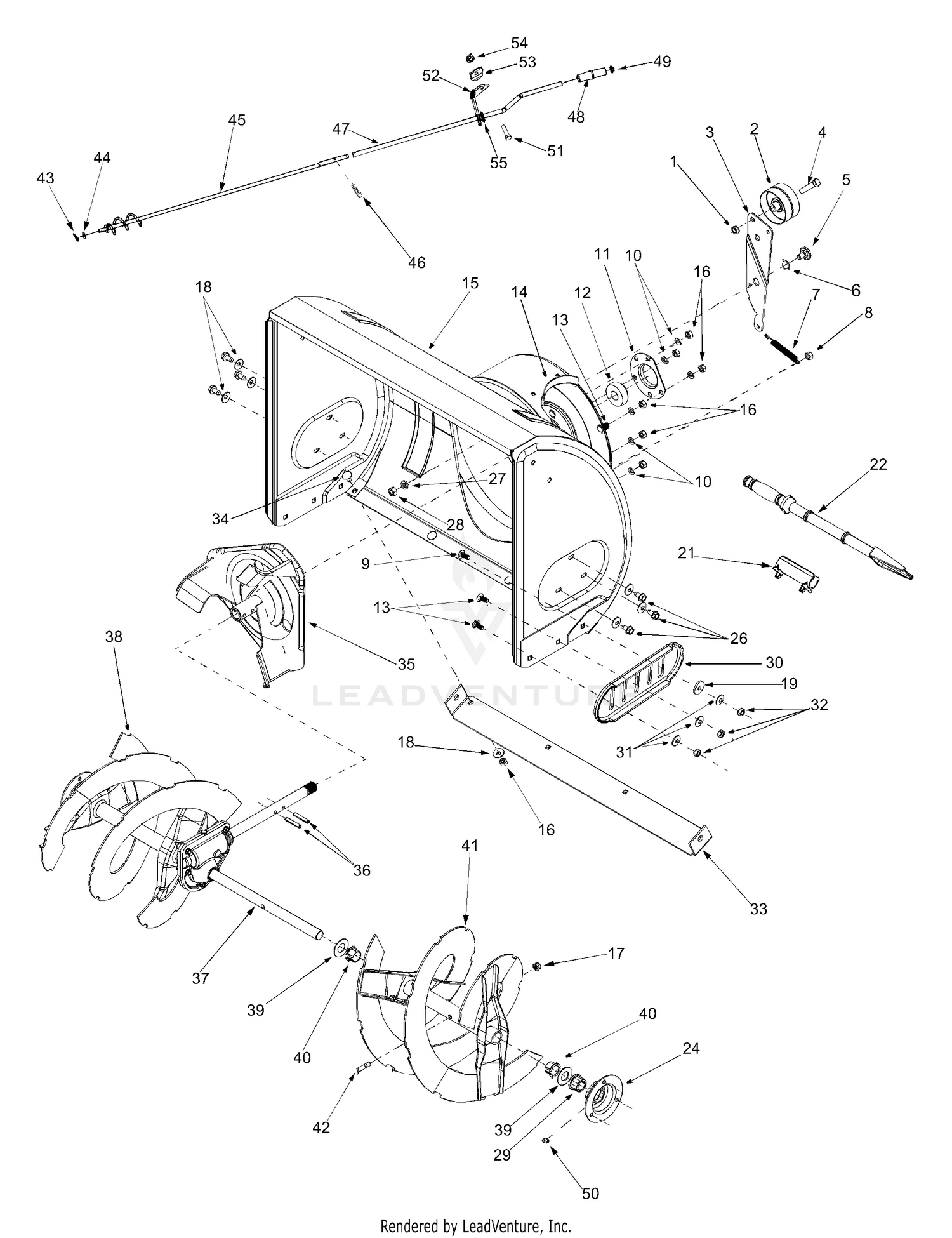

| Ref | Part Number | Description |
|---|
| 1 |
712-0116 |
Lock Jam Nut 3/8-24 Price: $3.95 |
| 2 |
756-0178 |
Flat Idler Price: $17.64 |
| 3 |
984-0064-0637 |
Auger Idler Brkt. This part replaces 784-5632B. Price: $28.67 |
| 4 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.50 Price: $6.50 |
| 5 |
738-0281 |
Shoulder Screw Price: $9.16 |
| 6 |
936-0167 |
FLAT WASHER This part replaces 736-0167. Price: $6.01 |
| 7 |
932-0611 |
Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92 |
| 8 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 712-3068. Price: $5.99 |
| 9 |
710-0276 |
Carriage Bolt, 5/16-18 x 1.00 Price: $3.68 |
| 10 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 11 |
05931A |
Housing Price: $9.73 |
| 12 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 13 |
710-0451 |
Carriage Bolt, 5/16-18 x.75 Price: $3.53 |
| 14 |
705-5226 |
Chute Reinforcement Price: $8.69 |
| 16 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 17 |
712-0429 |
Lock Nut 5/16-18 Price: $3.56 |
| 18 |
736-0242 |
Belleville Washer Price: $3.75 |
| 19 |
736-0320 |
Flat Wshr,.38ID x 1.38 OD Price: $6.01 |
| 21 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 22 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 24 |
784-5618A-0637 |
Hex Bearing Housing, 1.0 This part replaces 784-0399. Price: $11.45 |
| 26 |
710-0726 |
Hex Screw 5/16-12 Price: $3.82 |
| 27 |
736-0169 |
Lock Washer 3/8 Price: $3.33 |
| 28 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 29 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 30 |
784-5038B-0637 |
Slide Shoe This part replaces 784-5038B. Price: $24.49 |
| 31 |
736-0242 |
Bell Washer Price: $3.75 |
| 32 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 33 |
790-00118-0637 |
Shave Plate This part replaces 784-5582A. Price: $35.00 |
| 34 |
710-0451 |
Carriage Bolt 5/16-18 x 1.00 Price: $3.53 |
| 36 |
715-0114 |
Pin Price: $8.68 |
| 37 |
918-0416B |
Gear Assembly: Auger 28" This part replaces 618-0416A. Price: $416.95 |
| 38 |
684-04184-0637 |
Spiral Assembly: RH 28" This part replaces 605-5196A. Price: $191.48 |
| 39 |
736-0188 |
Flat Washer Price: $3.75 |
| 40 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 42 |
710-0890A |
Shear Bolt 5/16-18 x 1.5 Price: $1.58 |
| 43 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 44 |
736-0185 |
Flat Washer Price: $3.43 |
| 45 |
684-0053B-0637 |
CHUTE CRANK ASSEMBLY(POWDER BLACK) Not Available This part replaces 684-0053B. Price: |
| 46 |
714-0145 |
Hairpin Clip Price: $4.42 |
| 47 |
747-0737-0637 |
Upper Chute Crank This part replaces 747-0737. Price: $39.72 |
| 48 |
720-0201A |
Chute Crank Knob Price: $9.62 |
| 49 |
726-0100 |
Push Cap Price: $3.75 |
| 50 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 51 |
710-3015 |
Screw 1/4-20 x.75 Price: $3.65 |
| 52 |
705-5266-0637 |
Chute Crank Bracket This part replaces 705-5266. Price: $13.37 |
| 53 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 54 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
